Toyota Premio/Allion

2001-12 → 2007-05 · chassis AZT240,NZT240,ZZT24# · catalogue 271150 · Japan

Discontinued model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

9 part groups · 4 illustrations

Illustrations

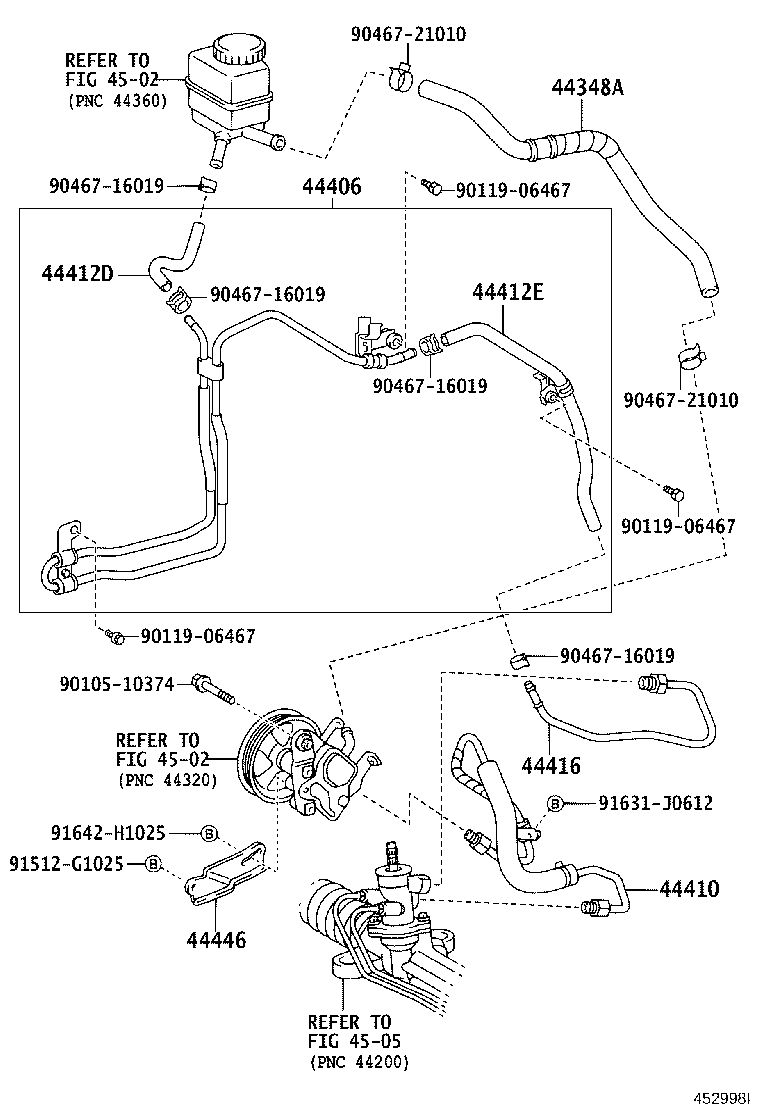

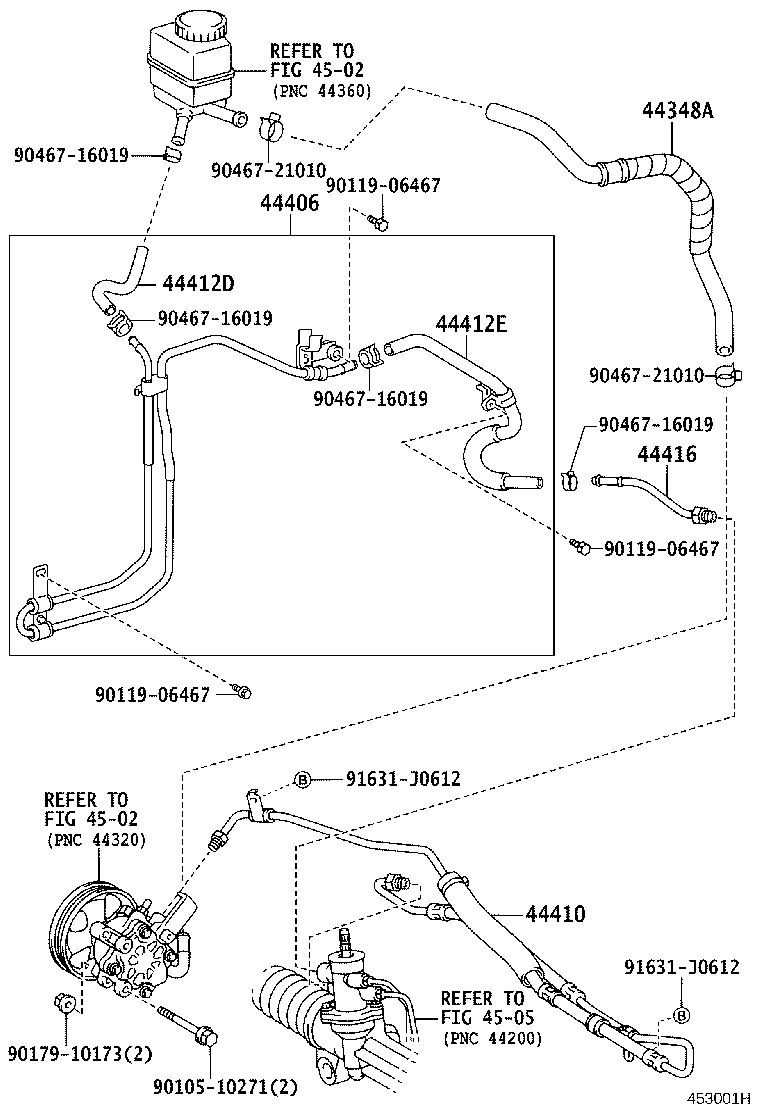

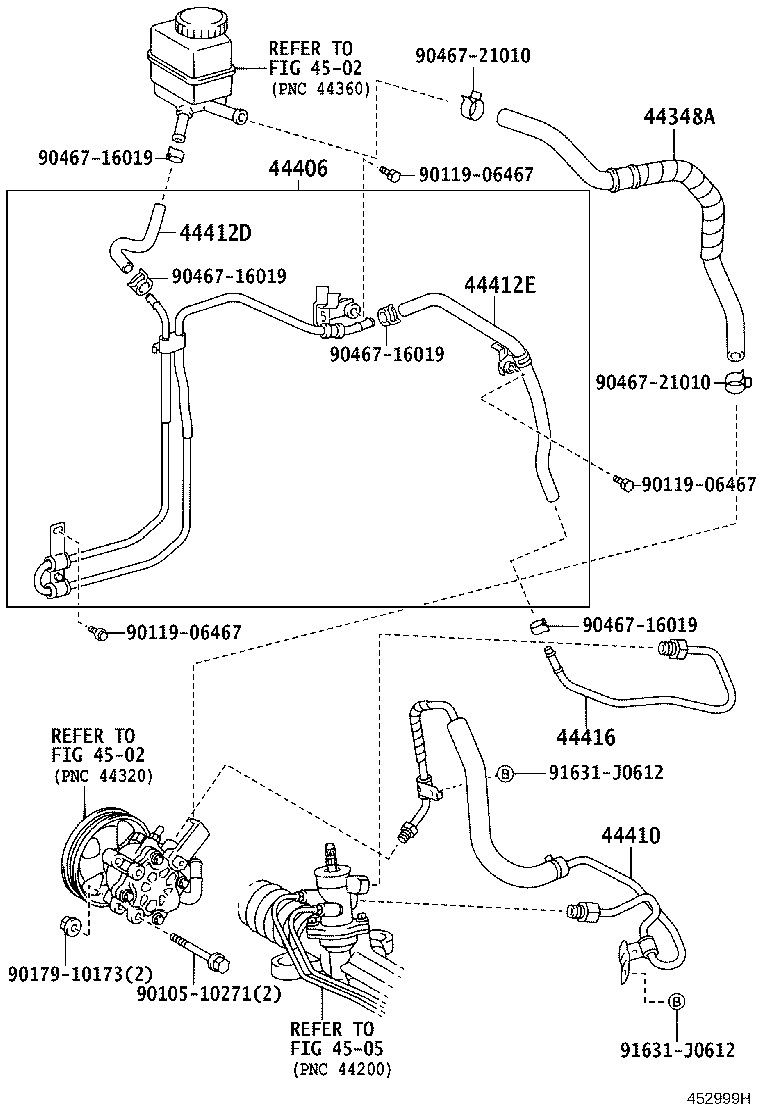

Figure 452997H 452997H 2001-12 → — Figure 452998I 452998I 2001-12 → — Figure 452999H 452999H 2001-12 → — Figure 453001H 453001H 2001-12 → —

Part groups

PNCDescription
44327A Gasket, Pressure Port, NO.1
44348A Hose, Oil Reservoir TO Pump, NO.1
44406 Tube Sub-assy, Return
44410 Tube Assy, Pressure Feed
44411C Bolt, Union(FOR PRESSURE FEED HOSE)
44412D Hose, Return, NO.1
44412E Hose, Return, NO.2
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44446 Strut, Adjusting
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
