Toyota Premio/Allion

2001-12 → 2007-05 · chassis AZT240,NZT240,ZZT24# · catalogue 271150 · Japan

Discontinued model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

13 part groups · 3 illustrations

Illustrations

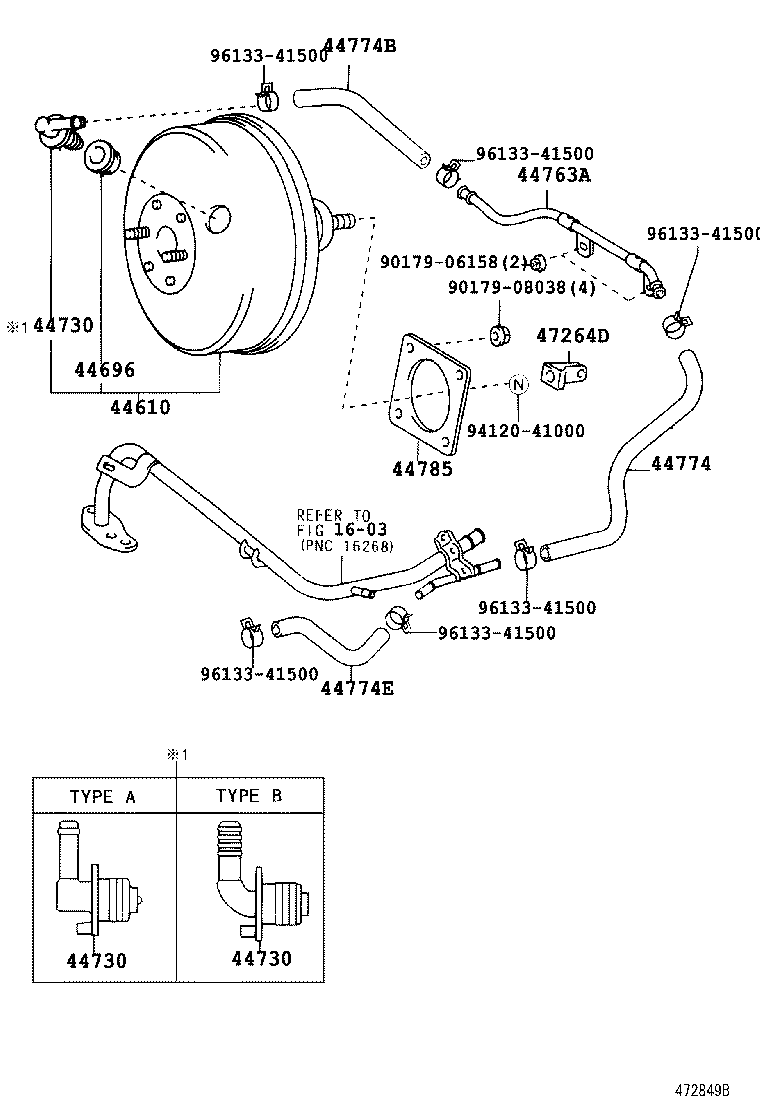

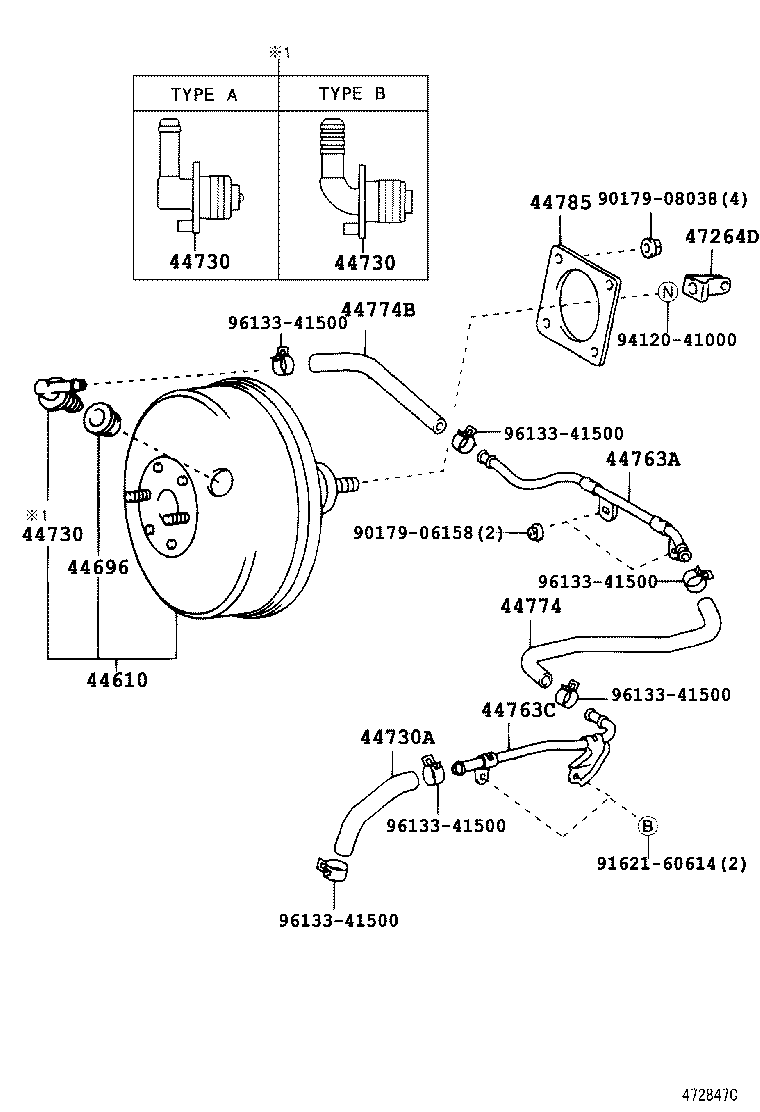

Figure 472848B 472848B 2001-12 → — Figure 472847C 472847C 2001-12 → — Figure 472849B 472849B 2001-12 → —

Part groups

PNCDescription
44610 Booster Assy, Brake
44696 Grommet, Check Valve
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44730A Hose, Vacuum, NO.1
44763A Tube, Hose TO Hose, NO.1
44763C Tube, Hose TO Hose, NO.2
44773F Hose, Union TO Check Valve
44774 Hose, Union TO Connector Tube
44774B Hose, Union TO Connector Tube
44774E Hose, Union TO Connector Tube
44776 Hose, Brake Booster
44785 Gasket, Brake Booster
47264D Clevis, Brake Master Cylinder Push Rod
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
