Toyota Premio/Allion

2001-12 → 2007-05 · chassis AZT240,NZT240,ZZT24# · catalogue 271150 · Japan

Discontinued model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

16 part groups · 2 illustrations

Illustrations

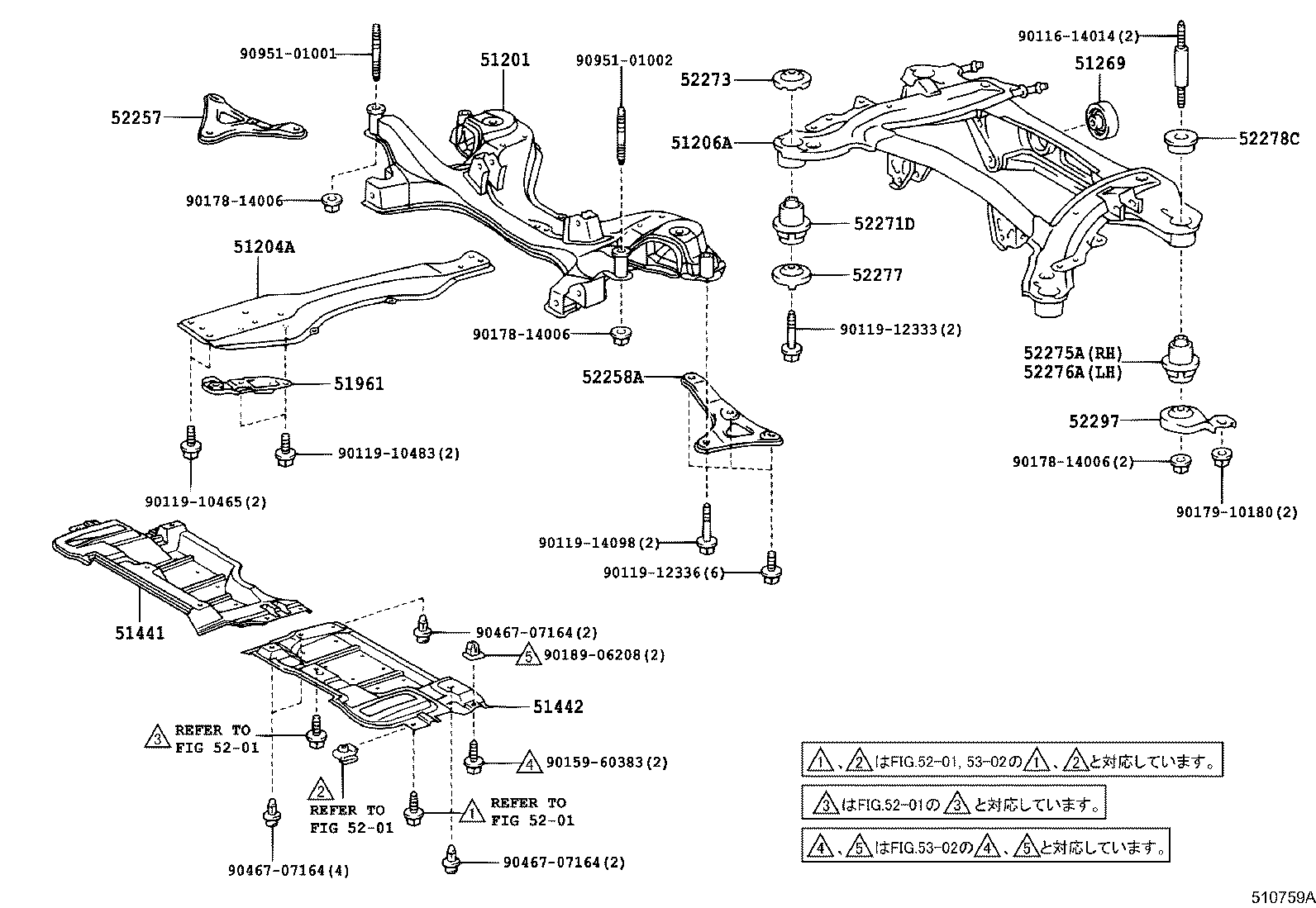

Figure 510758A 510758A 2001-12 → — Figure 510759A 510759A 2001-12 → —

Part groups

PNCDescription
51201 Crossmember Sub-assy, Front Suspension
51204A Member Sub-assy, Engine Mounting, Center
51206A Member Sub-assy, Rear Suspension
51269 Damper, Differential Support Member
51441 Cover, Engine Under, NO.1
51442 Cover, Engine Under, NO.2
51961 Hook, NO.1
52257 Brace, Front Suspension Member, Rear RH
52258A Brace, Front Suspension Member, Rear LH
52271D Cushion, Rear Suspension Member Body Mounting, Front
52273 Stopper, Rear Suspension Member, Lower
52275A Cushion, Rear Suspension Member Body Mounting, Rear
52276A Cushion, Rear Suspension Member Body Mount, Rear LH
52277 Retainer, Rear Suspension Member Lower Stopper, RH
52278C Stopper, Rear Suspension Member, Rear Lower
52297 Brace, Rear Suspension Member, Rear Lower RH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
