Toyota Premio/Allion

2001-12 → 2007-05 · chassis AZT240,NZT240,ZZT24# · catalogue 271150 · Japan

Discontinued model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

23 part groups · 3 illustrations

Illustrations

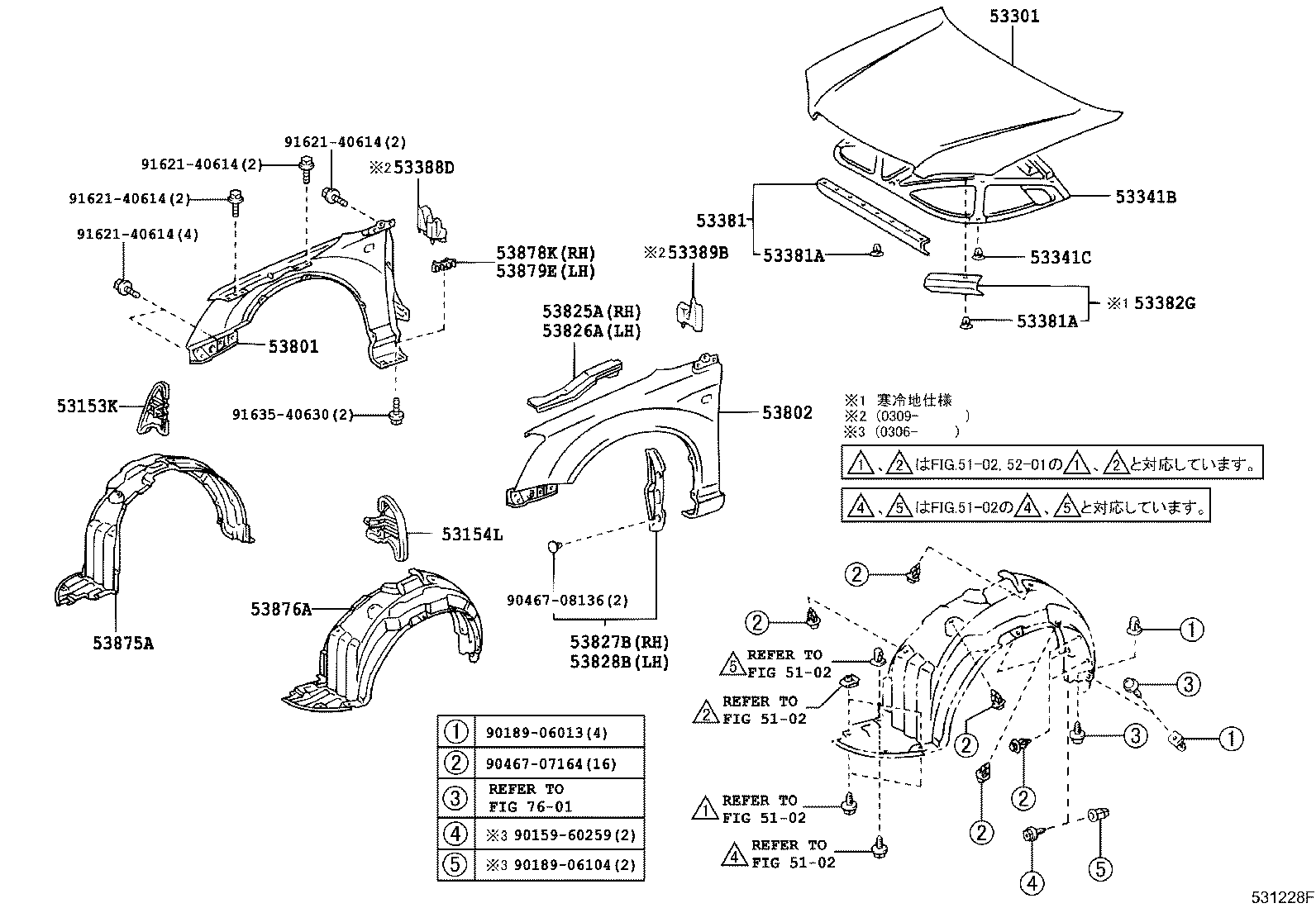

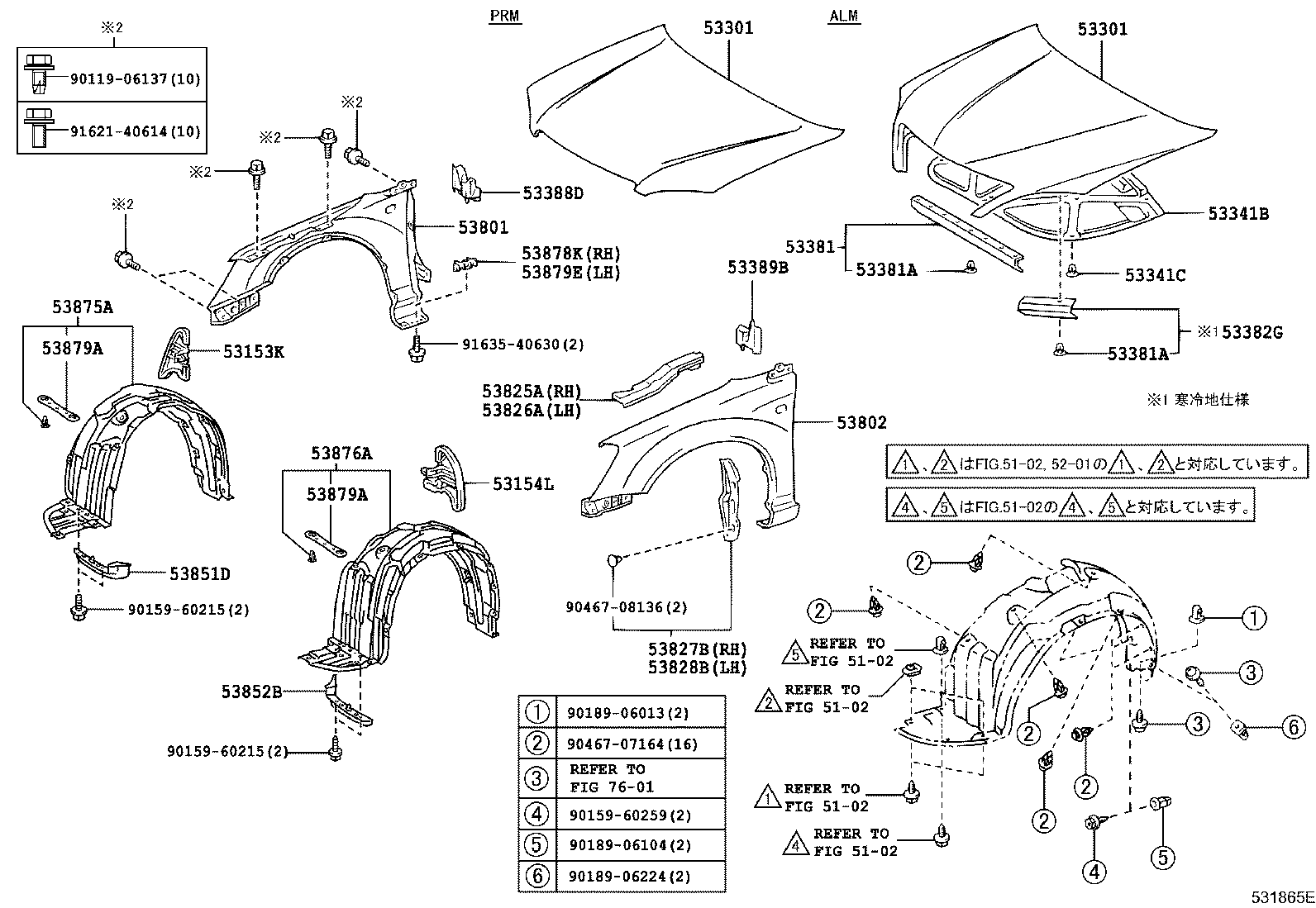

Figure 531227G 531227G 2001-12 → 2004-12 Figure 531228F 531228F 2001-12 → 2004-12 Figure 531865E 531865E 2004-12 → —

Part groups

PNCDescription
53153K Guide, Radiator Grille Side Air, RH
53154L Guide, Radiator Grille Side Air, LH
53301 Hood Sub-assy
53341B Insulator, Hood
53341C Clip(FOR HOOD INSULATOR)
53381 Seal, Hood TO Radiator Support
53381A Clip(FOR HOOD TO RADIATOR SUPPORT SEAL)
53382G Seal, Hood TO Radiator Support, LH
53388D Seal, Hood TO Front Fender, RH
53389B Seal, Hood TO Front Fender, LH
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53825A Protector, Front Fender, Upper RH
53826A Protector, Front Fender, Upper LH
53827B Protector, Front Fender Side Panel
53828B Protector, Front Fender Side Panel, LH
53851D Pad, Front Wheel Opening Extension, RH
53852B Pad, Front Wheel Opening Extension, LH
53875A Liner, Front Fender, RH
53876A Liner, Front Fender, LH
53878K Spacer, Front Fender, RH
53879A Retainer, Front Fender Liner
53879E Spacer, Front Fender, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
