Toyota Premio/Allion
2001-12 → 2007-05 · chassis AZT240,NZT240,ZZT24# · catalogue 271150 · Japan
Discontinued model
Data version 2007-10
Instrument Panel & Glove Compartment

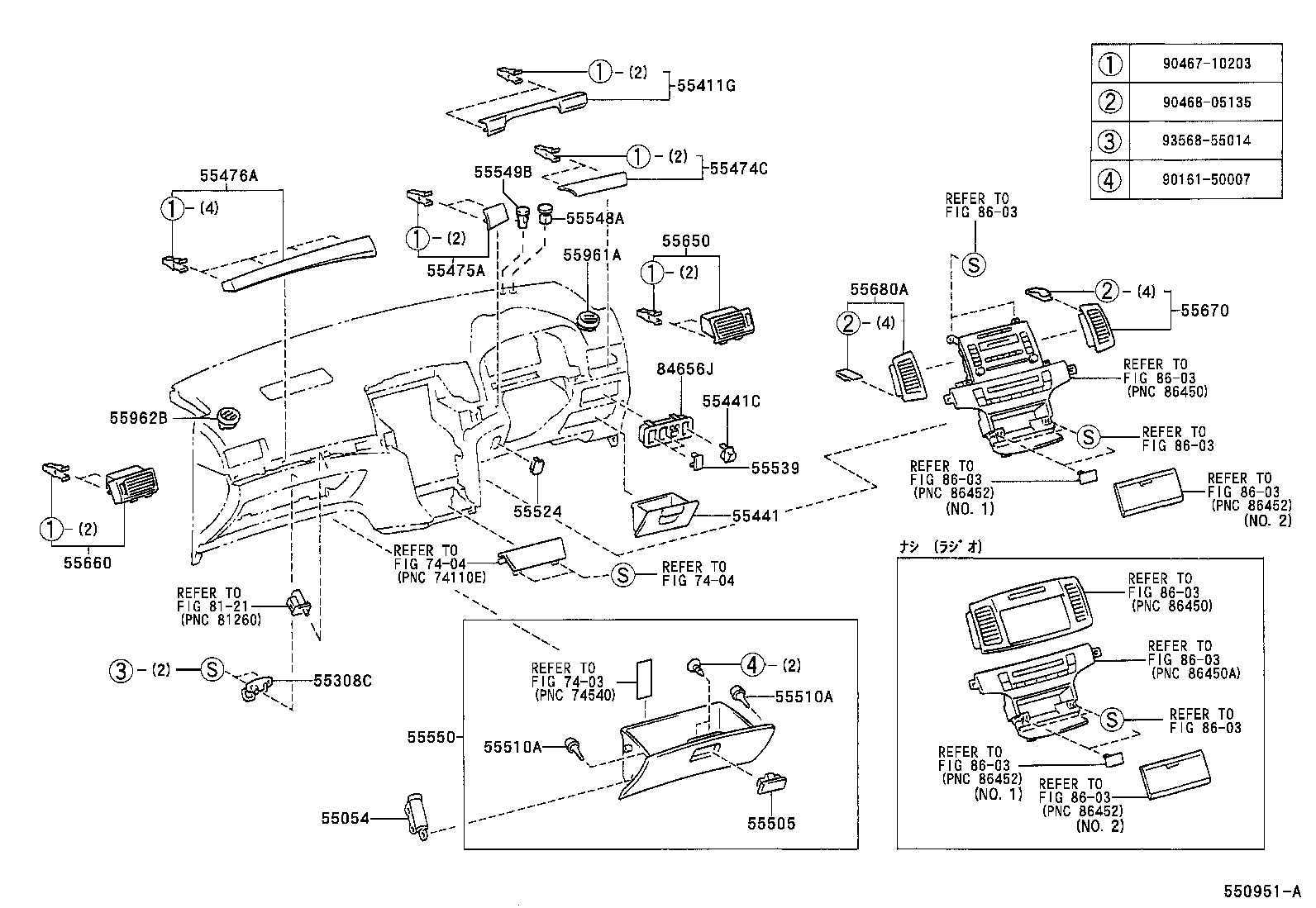

33 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55054 | Stopper Sub-assy, Glove Compartment Door |
| 55244B | Silencer, Front Panel Side, NO.2 |
| 55302A | Panel Sub-assy, Instrument, Upper |
| 55303B | Panel Sub-assy, Instrument, Lower |
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55308C | Bracket Sub-assy, Instrument Panel, Center |
| 55312A | Clip, Instrument Panel |
| 55331 | Reinforcement, Instrument Panel |
| 55356C | Cushion, Instrument Panel, NO.2 |
| 55357B | Cushion, Instrument Panel, NO.3 |
| 55411G | Panel, Instrument Cluster Finish, NO.1 |
| 55441 | Box, Instrument Panel |
| 55441C | Box, Instrument Panel Coin |
| 55444A | Spring, Instrument Panel Box |
| 55474C | Garnish, Instrument Cluster Finish Panel, NO.1 |
| 55475A | Garnish, Instrument Cluster Finish Panel, NO.2 |
| 55476A | Garnish, Instrument Cluster Finish Panel, NO.3 |
| 55505 | Lock Sub-assy, Glove Compartment Door |
| 55510A | Cushion(FOR GLOVE COMPARTMENT DOOR) |
| 55524 | Cover, Switch Bace Hole |
| 55539 | Cover, Spare Switch Hole |
| 55548A | Cover, Instrument Panel Hole |
| 55549B | Cover, Instrument Panel Hole, NO.2 |
| 55550 | Door Assy, Glove Compartment |
| 55606 | Cover Sub-assy, Instrument Panel Under, NO.1 |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55670 | Register Assy, Instrument Panel, NO.3 |
| 55680A | Register Assy, Instrument Panel, NO.4 |
| 55961A | Nozzle, Side Defroster, RH |
| 55962B | Nozzle, Side Defroster, LH |
| 73960A | Airbag Assy, Instrument Panel Passenger W/O Door |
| 84656J | Cover, Bezel Switch Hole |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
