Toyota Premio/Allion

2001-12 → 2007-05 · chassis AZT240,NZT240,ZZT24# · catalogue 271150 · Japan

Discontinued model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Luggage Compartment Door & Lock

17 part groups · 2 illustrations

Illustrations

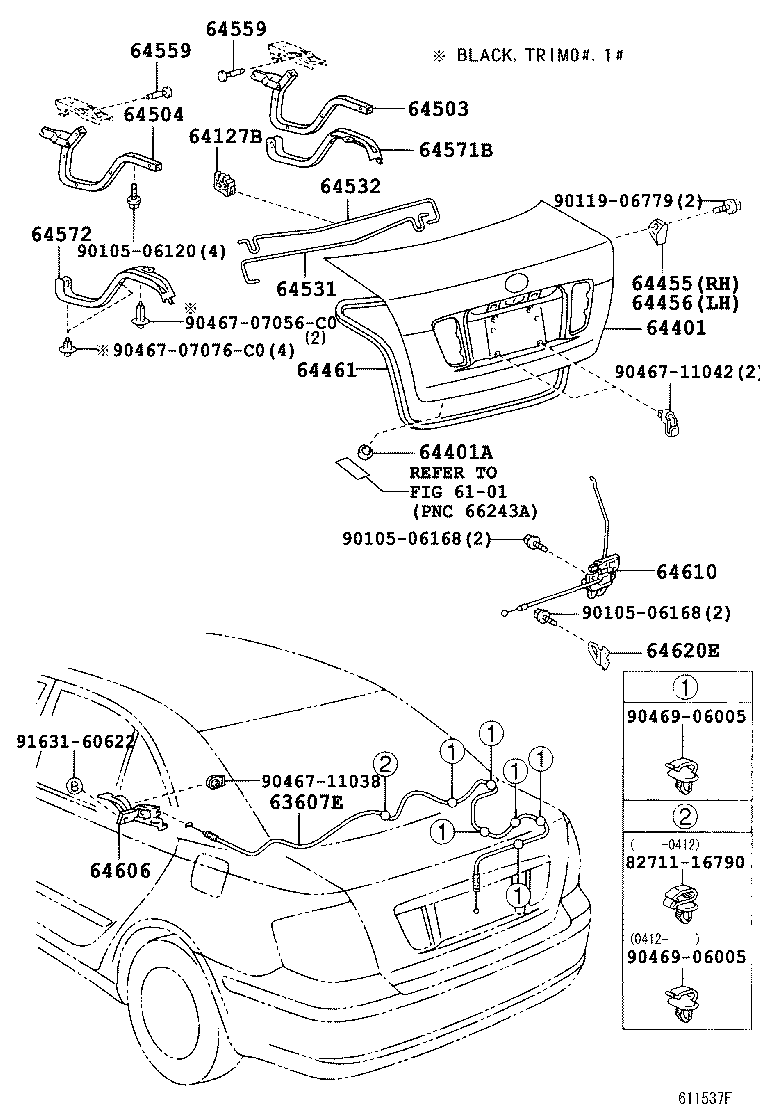

Figure 611537G 611537G 2001-12 → 2004-12 Figure 613301 613301 2004-12 → —

Part groups

PNCDescription
63607E Cable Sub-assy, Luggage Door Lock Control
64127B Support, Luggage Compartment Door Torsion Bar
64401 Panel Sub-assy, Luggage Compartment Door
64401A Cushion(FOR LUGGAGE COMPARTMENT DOOR PANEL)
64455 Cushion, Luggage Compartment Door Side, RH
64456 Cushion, Luggage Compartment Door Side, LH
64461 Weatherstrip, Luggage Compartment Door
64503 Arm Sub-assy, Luggage Compartment Door Hinge, RH
64504 Arm Sub-assy, Luggage Compartment Door Hinge, LH
64531 Bar, Luggage Door Hinge Torsion, RH
64532 Bar, Luggage Door Hinge Torsion, LH
64559 Pin, Luggage Door Hinge
64571B Cover, Luggage Compartment Door Hinge, RH
64572 Cover, Luggage Compartment Door Hinge, LH
64606 Lever Sub-assy, Luggage Door Lock Open
64610 Lock Assy, Luggage Compartment Door
64620E Striker Assy, Luggage Compartment Door
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
