Toyota Premio/Allion

2001-12 → 2007-05 · chassis AZT240,NZT240,ZZT24# · catalogue 271150 · Japan

Discontinued model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

15 part groups · 3 illustrations

Illustrations

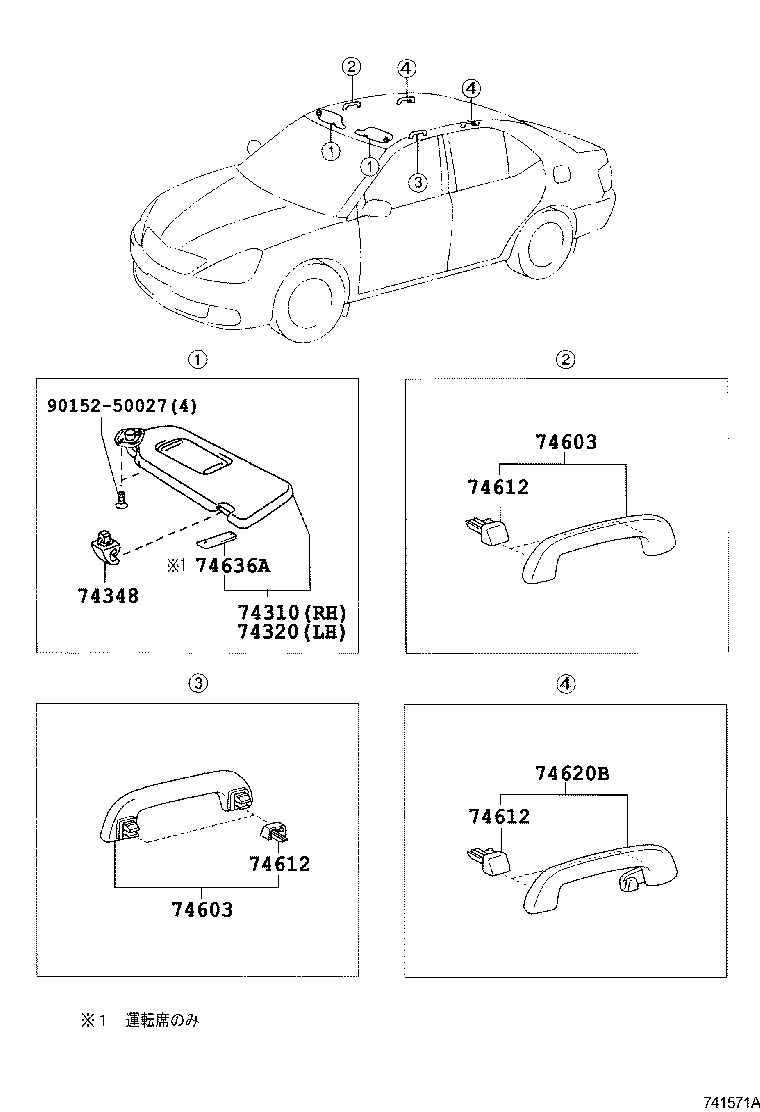

Figure 741031A 741031A 2001-12 → — Figure 741032 741032 2001-12 → 2004-12 Figure 741571A 741571A 2004-12 → —

Part groups

PNCDescription
74231 Panel, Front Armrest Base, Upper RH
74232 Panel, Front Armrest Base, Upper LH
74271A Panel, Rear Door Armrest Base, Upper RH
74272A Panel, Rear Door Armrest Base, Upper LH
74310 Visor Assy, RH
74320 Visor Assy, LH
74348 Holder, Visor
74603 Grip Sub-assy, Assist, Front
74611C Cover, Assist Grip, LH
74612 Cover, Assist Grip
74612C Cover, Assist Grip, RH
74620B Grip Assy, Assist, Rear
74636A Bezel, Card Holder
74645A Cover, Door Assist Grip, RH
74646 Cover, Door Assist Grip, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
