Toyota Premio/Allion

2001-12 → 2007-05 · chassis AZT240,NZT240,ZZT24# · catalogue 271150 · Japan

Discontinued model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

34 part groups · 7 illustrations

Illustrations

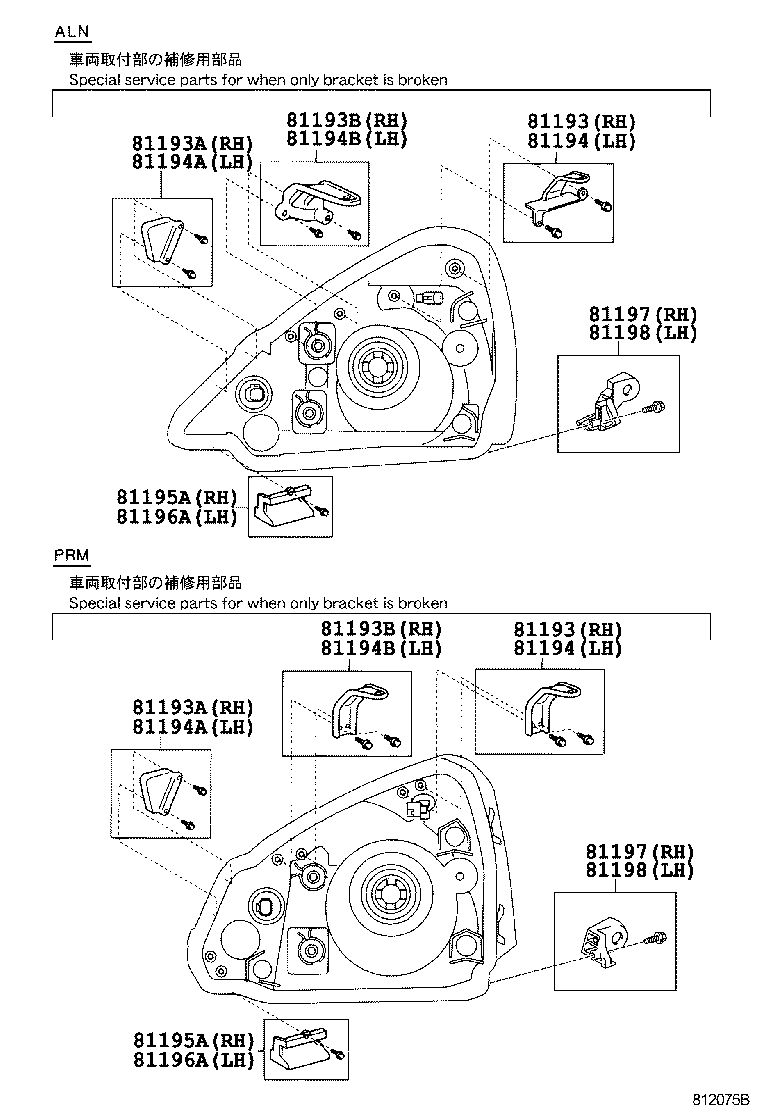

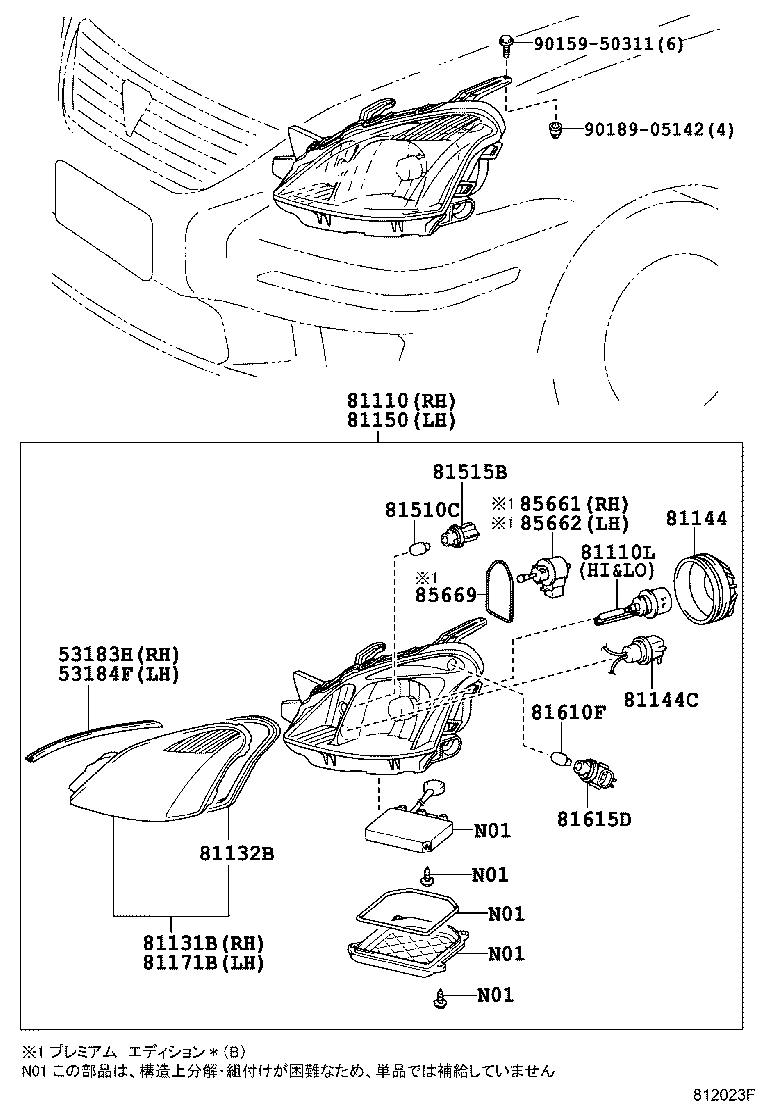

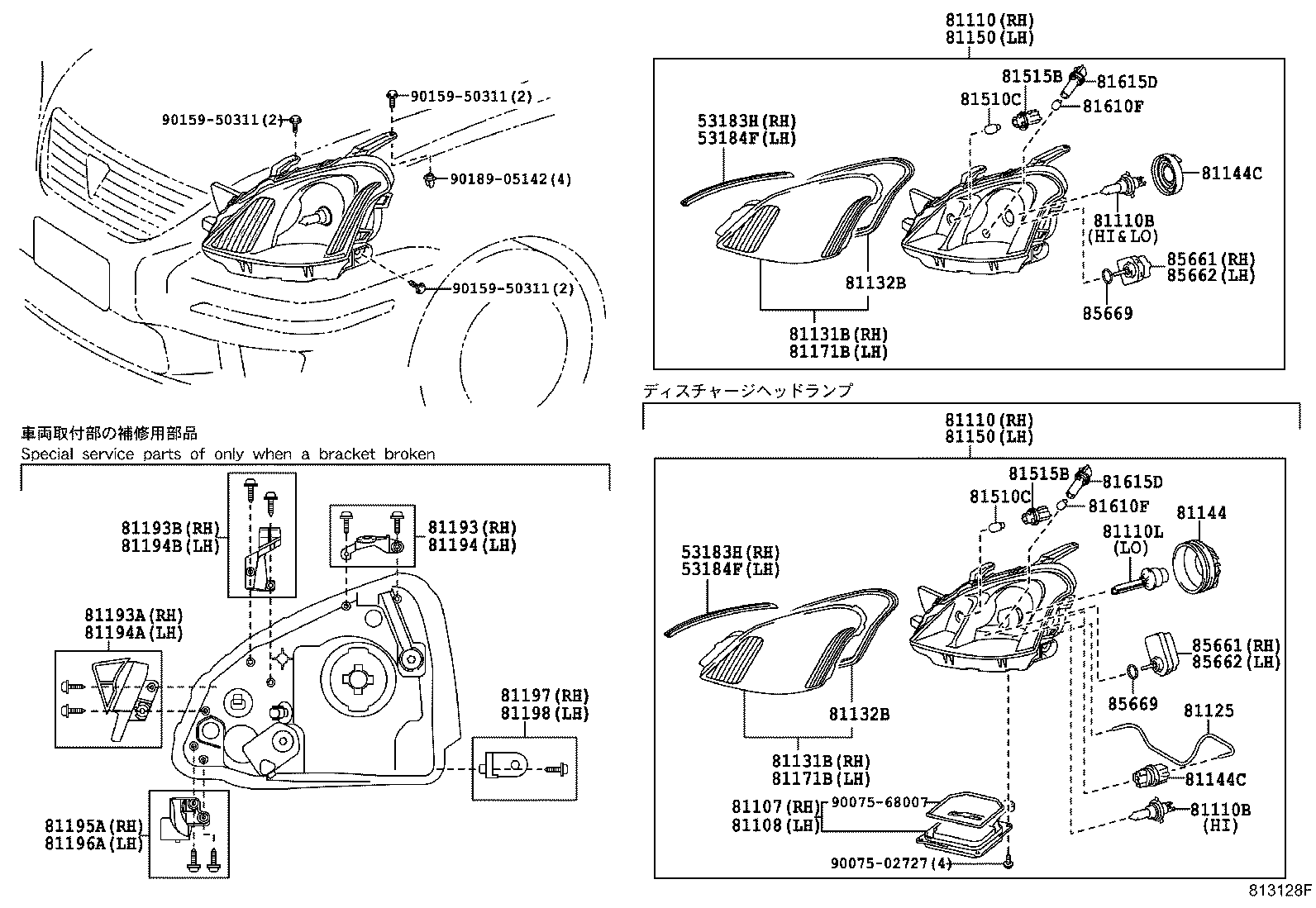

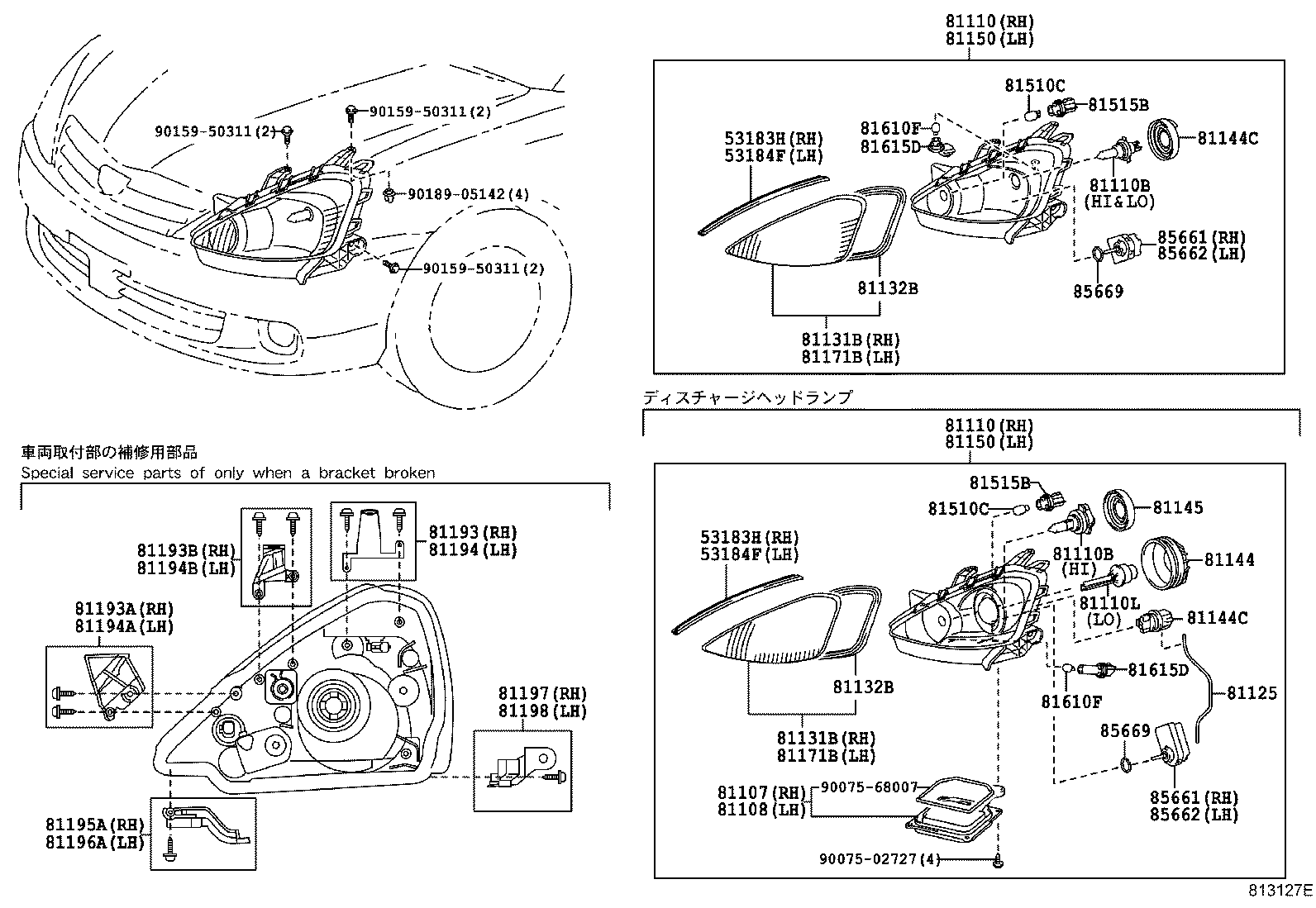

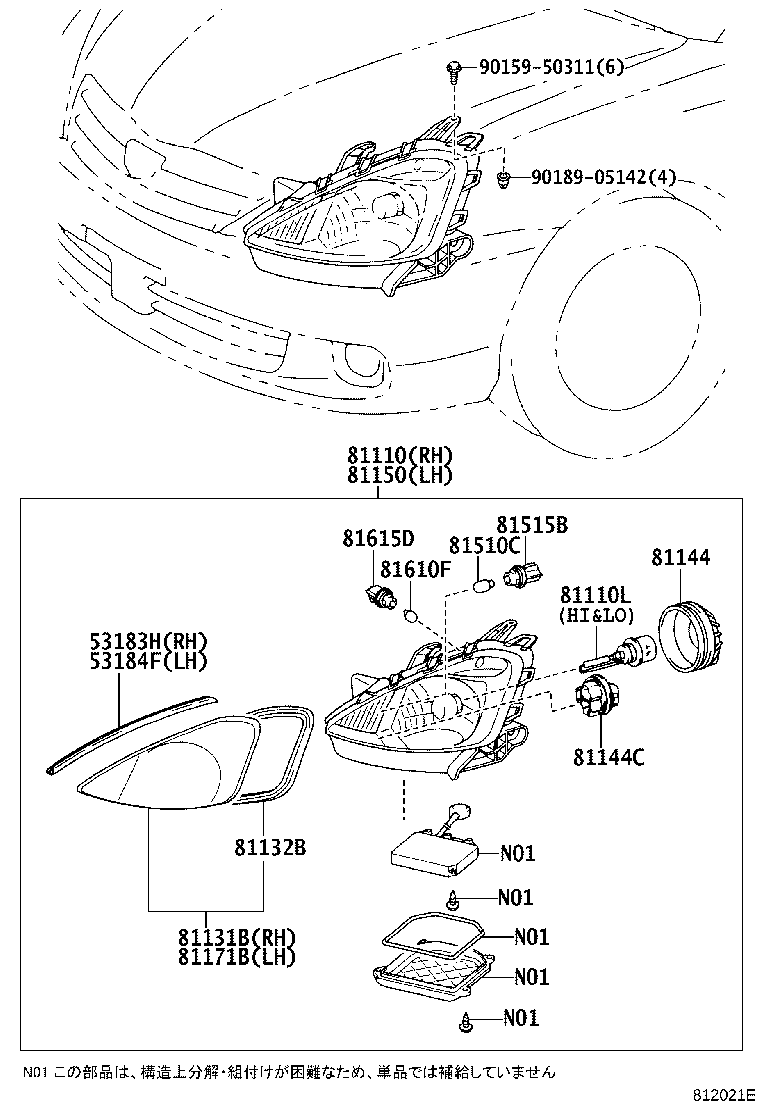

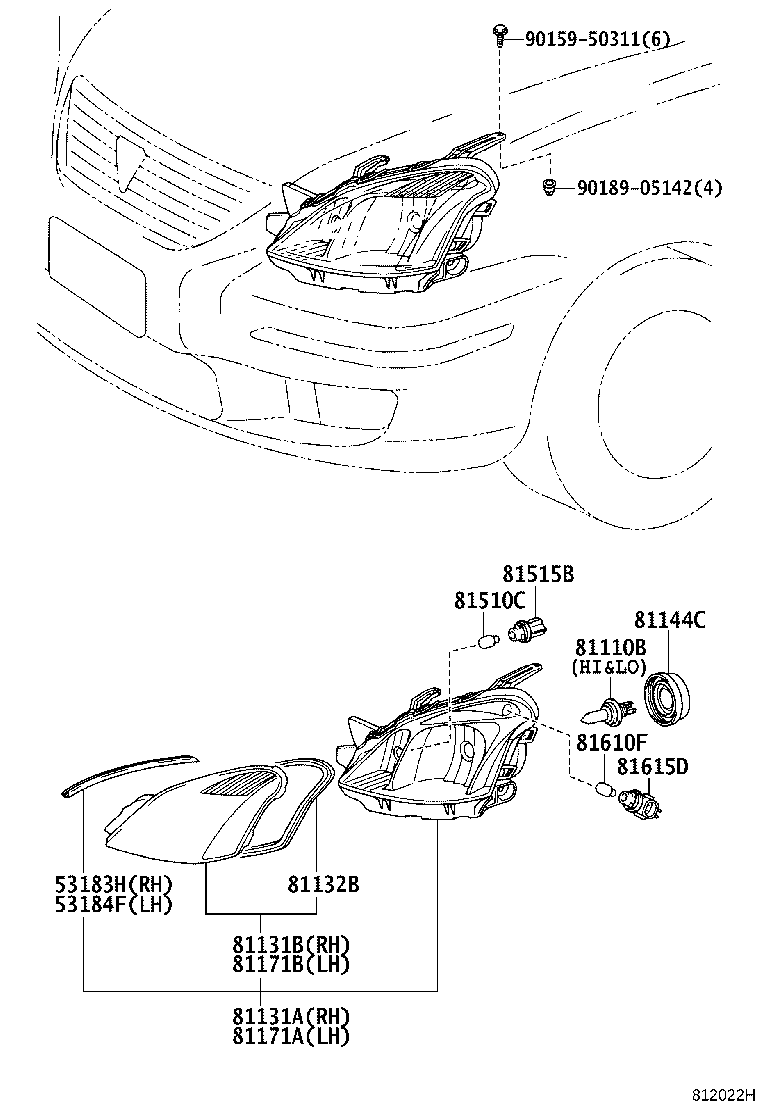

Figure 812020G 812020G 2001-12 → 2004-12 Figure 812021E 812021E 2001-12 → 2004-12 Figure 812022H 812022H 2001-12 → 2004-12 Figure 812023F 812023F 2001-12 → 2004-12 Figure 812075B 812075B 2001-12 → 2004-12 Figure 813127E 813127E 2004-12 → — Figure 813128F 813128F 2004-12 → —

Part groups

PNCDescription
53183H Seal, Headlamp Cover, RH
53184F Seal, Headlamp Cover, LH
81107 Computer Sub-assy, Headlamp Light Control, RH
81108 Computer Sub-assy, Headlamp Light Control, LH
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
81110L Bulb, Discharge Headlamp
81125 Cord, Headlamp
81131A Unit, Headlamp, RH
81131B Head Lamp Lens, RH
81132B Gasket, Headlamp Lens
81144 Cover, Headlamp, NO.1
81144C Cover, Headlamp Socket
81145 Cover, Headlamp, NO.2
81150 Headlamp Assy, LH
81171A Unit, Headlamp, LH
81171B Head Lamp Lens, LH
81193 Retainer, Headlamp Protector, Upper RH
81193A Protector, Headlamp, RH
81193B Retainer, Headlamp Protector, Upper RH NO.2
81194 Retainer, Headlamp Protector, Upper LH
81194A Protector, Headlamp, LH
81194B Retainer, Headlamp Protector, Upper LH NO.2
81195A Retainer, Headlamp Protector, Lower RH
81196A Retainer, Headlamp Protector, Lower LH
81197 Bracket, Headlamp, Lower RH
81198 Bracket, Headlamp, Lwr LH
81510C Bulb (FOR FRONT TURN SIGNAL LAMP)
81515B Socket, Front Turn Signal Lamp
81610F Bulb(FOR CLEARANCE LAMP)
81615D Socket, Clearance Lamp
85661 Motor, Headlamp Leveling, RH
85662 Motor, Headlamp Leveling, LH
85669 Packing, Headlamp Leveling Motor Base
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
