Toyota Premio/Allion
2001-12 → 2007-05 · chassis AZT240,NZT240,ZZT24# · catalogue 271150 · Japan
Discontinued model
Data version 2007-10

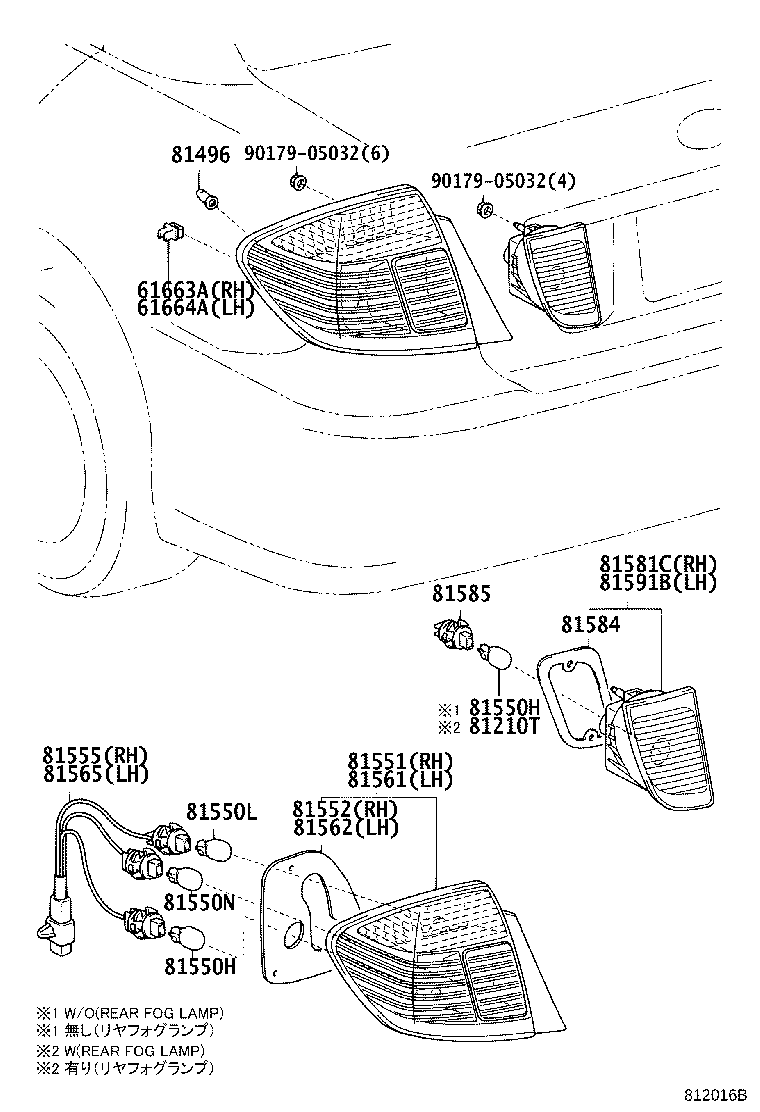

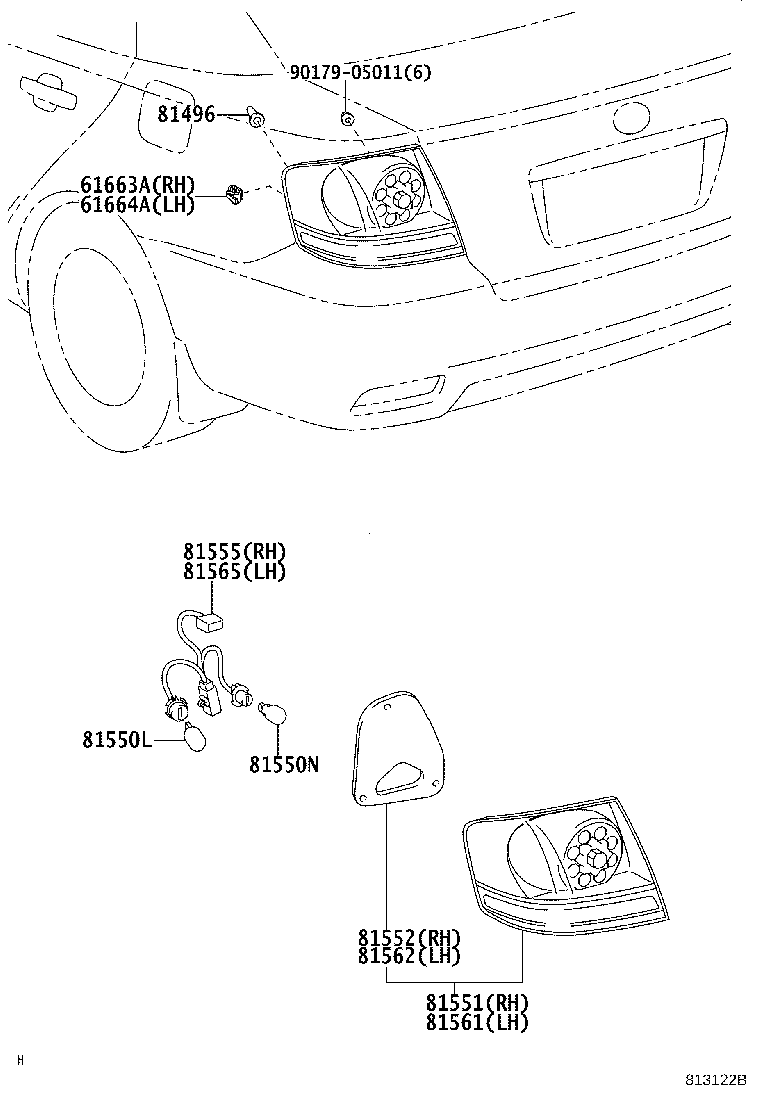

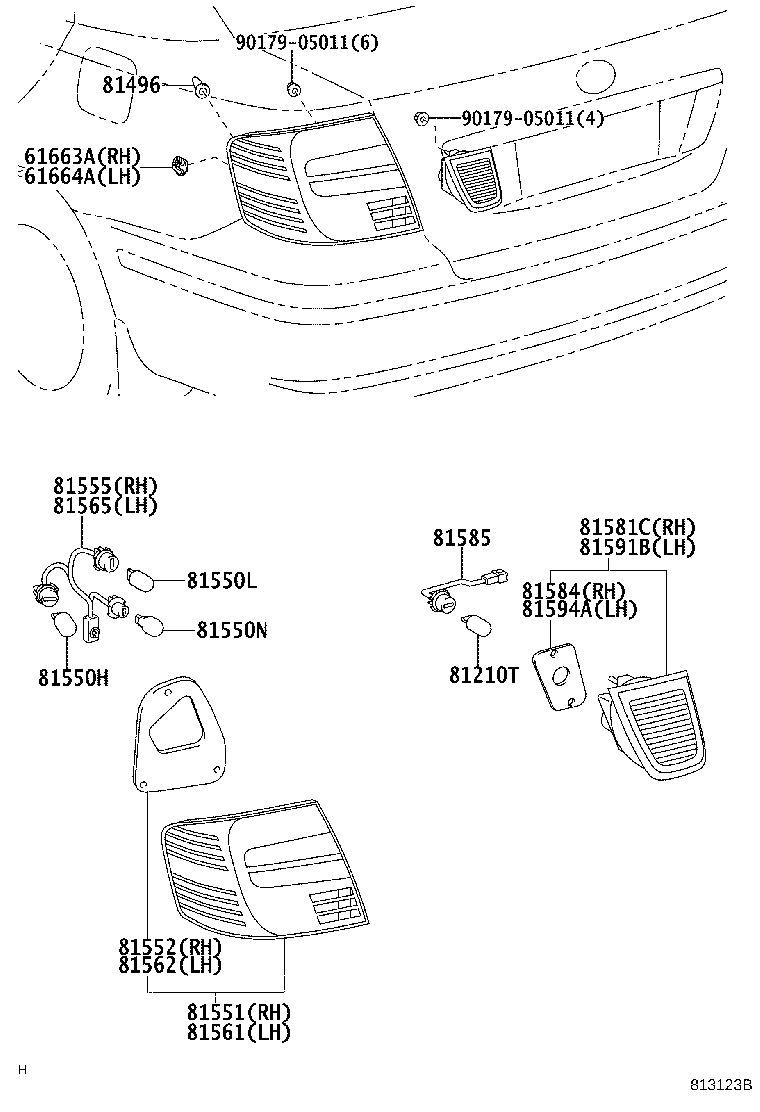

Rear Combination Lamp
19 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 61663A | Bracket, Rear Combination Lamp Mounting |
| 61664A | Bracket, Rear Combination Lamp Mounting, LH |
| 81210T | Bulb, Rear Fog Lamp |
| 81496 | Guide, Rear Combination Lamp |
| 81550F | Bulb, Taillamp |
| 81550H | Bulb, Tail & Stop Lamp |
| 81550L | Bulb, Rear Turn Signal Lamp |
| 81550N | Bulb, Back UP Lamp |
| 81551 | Lens, Rear Combination Lamp, RH |
| 81552 | Gasket, Rear Combination Lamp Lens, RH |
| 81555 | Socket & Wire Sub-assy, Rear Combination Lamp, RH |
| 81561 | Lens, Rear Combination Lamp, LH |
| 81562 | Gasket, Rear Combination Lamp Lens, LH |
| 81565 | Socket & Wire Sub-assy, Rear Combination Lamp, LH |
| 81581C | Lens And Body, Rear Lamp, RH |
| 81584 | Packing, Rear Lamp RH |
| 81585 | Socket & Wire, Rear Lamp |
| 81591B | Lens And Body, Rear Lamp, LH |
| 81594A | Gasket, Rear Lamp LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
