Toyota Premio/Allion

2001-12 → 2007-05 · chassis AZT240,NZT240,ZZT24# · catalogue 271150 · Japan

Discontinued model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

64 part groups · 11 illustrations

Illustrations

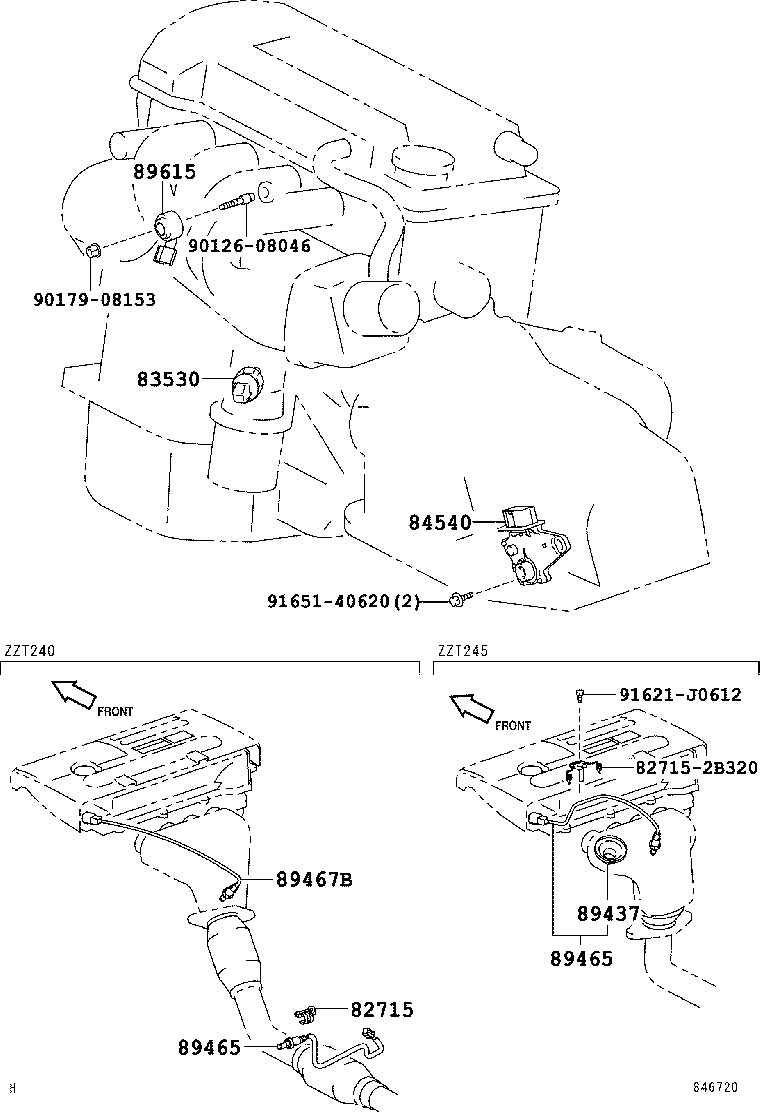

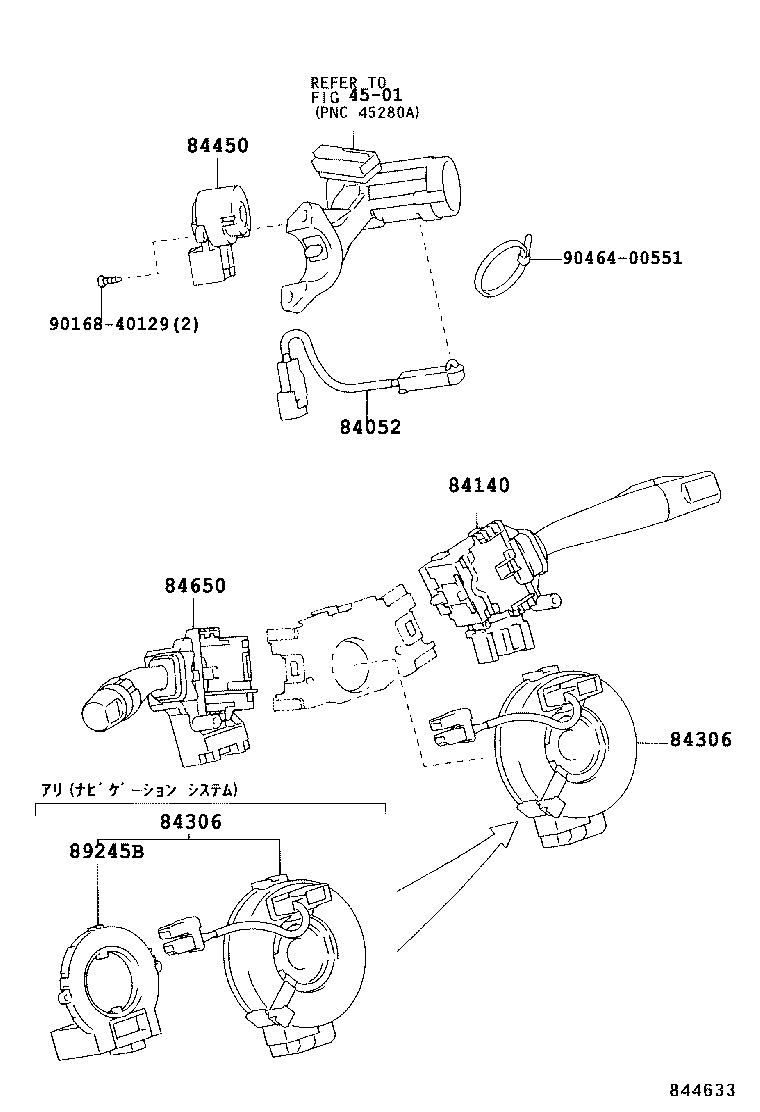

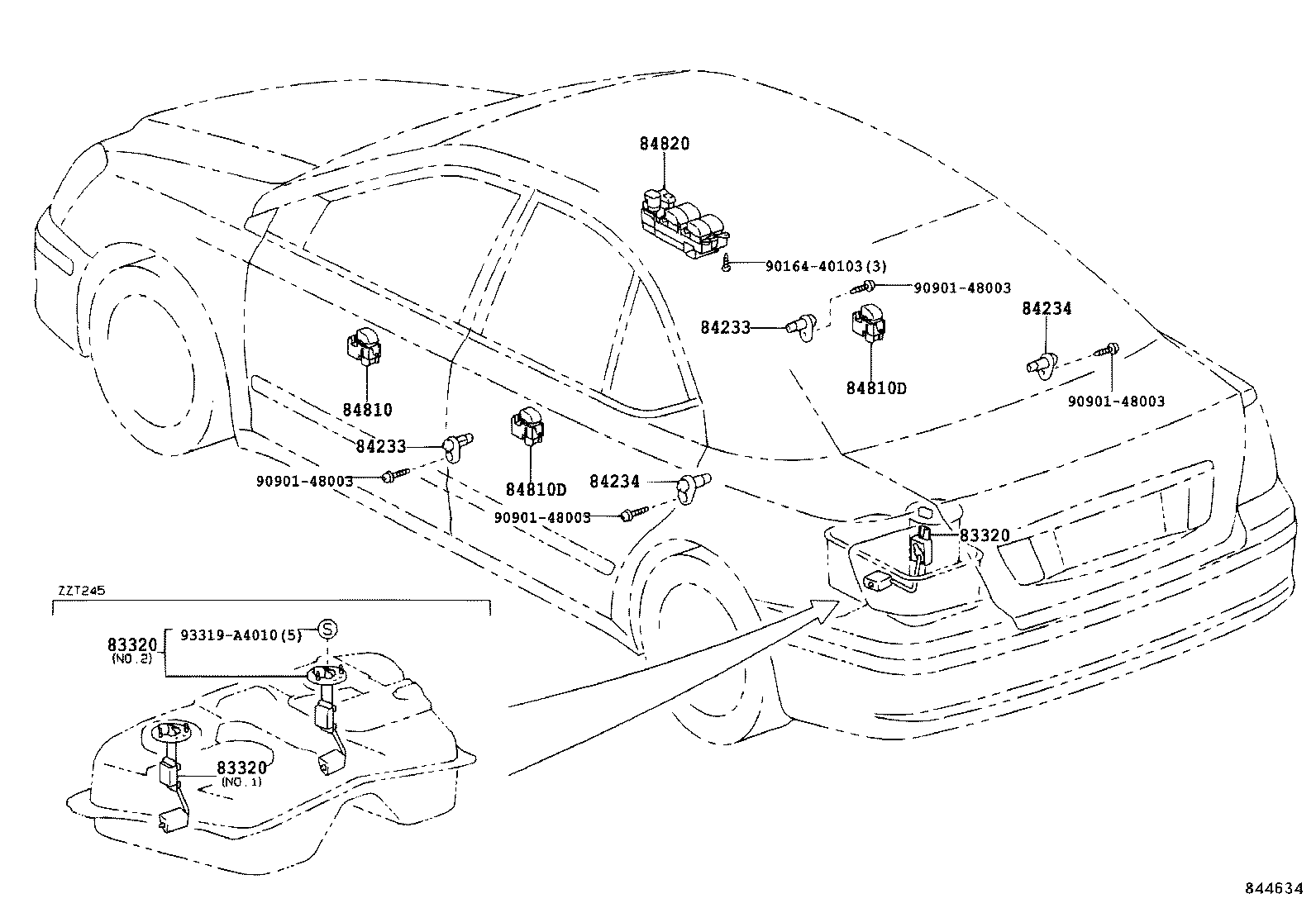

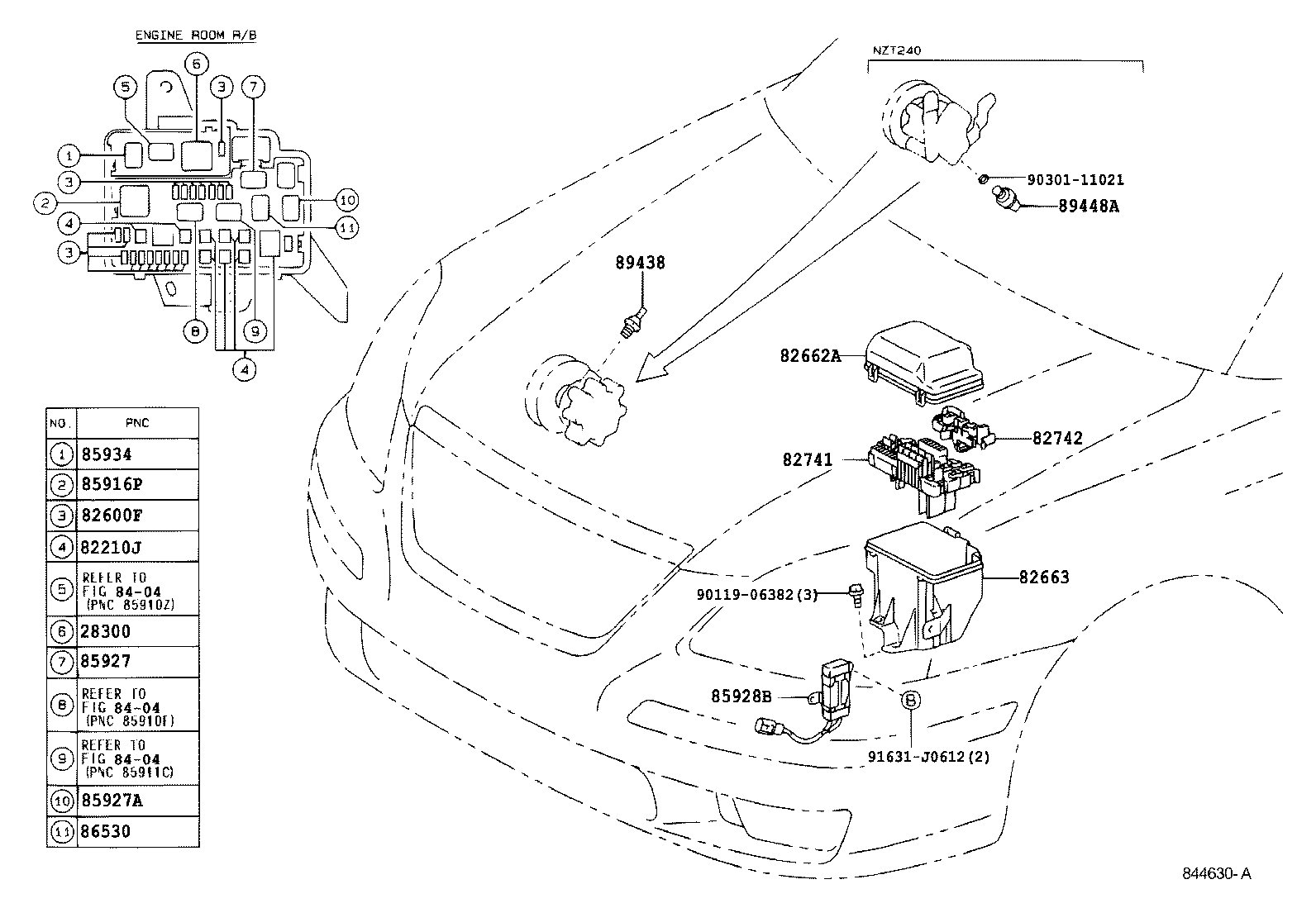

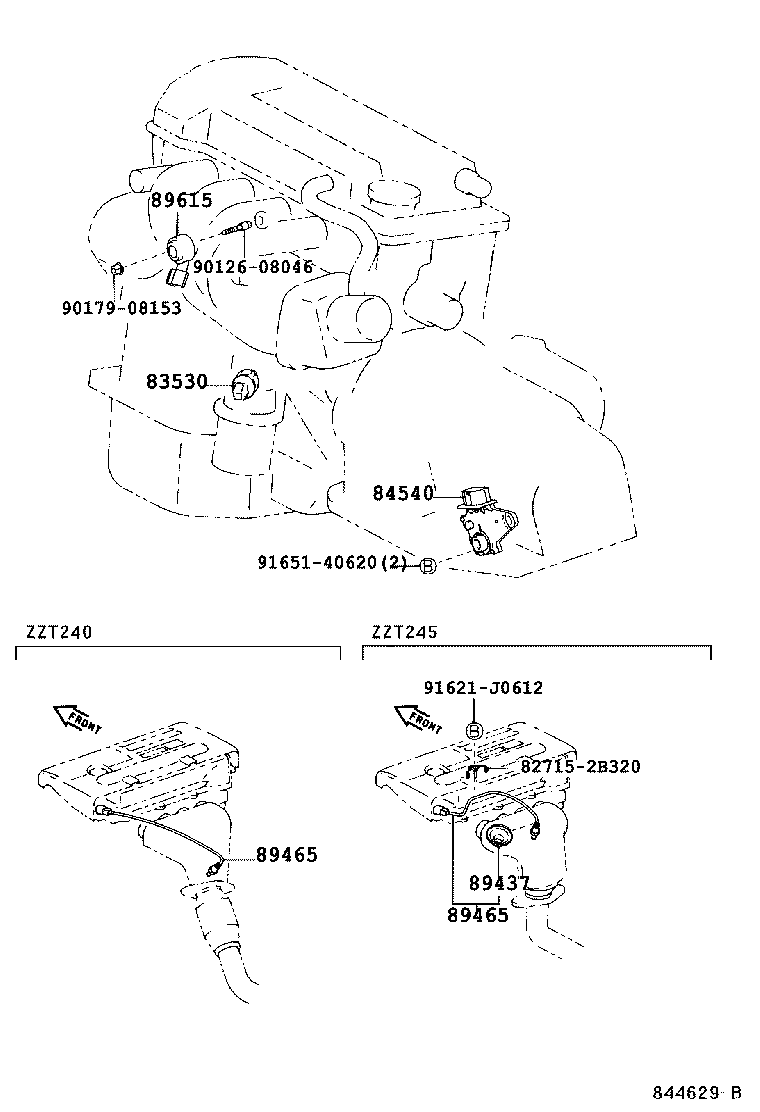

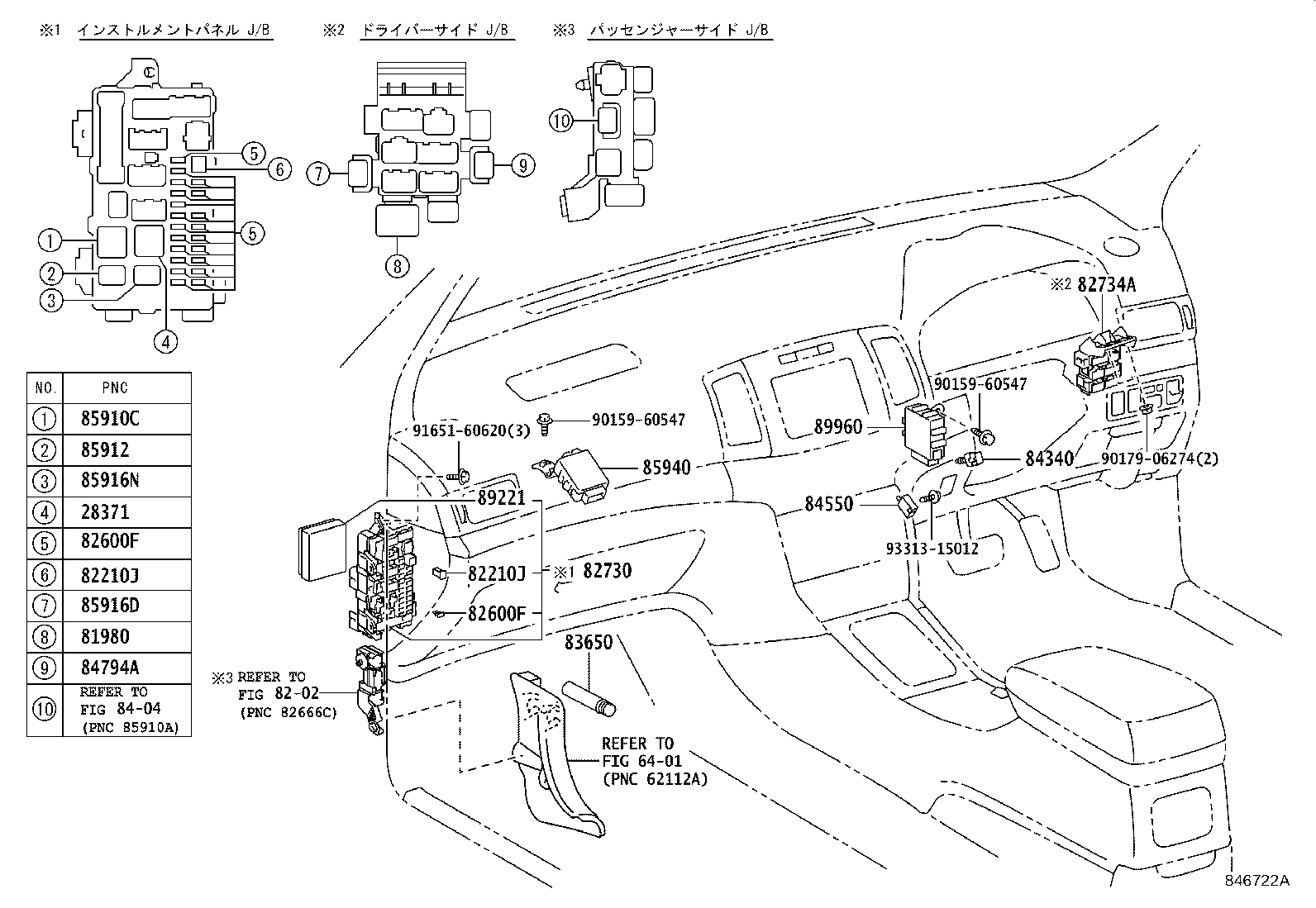

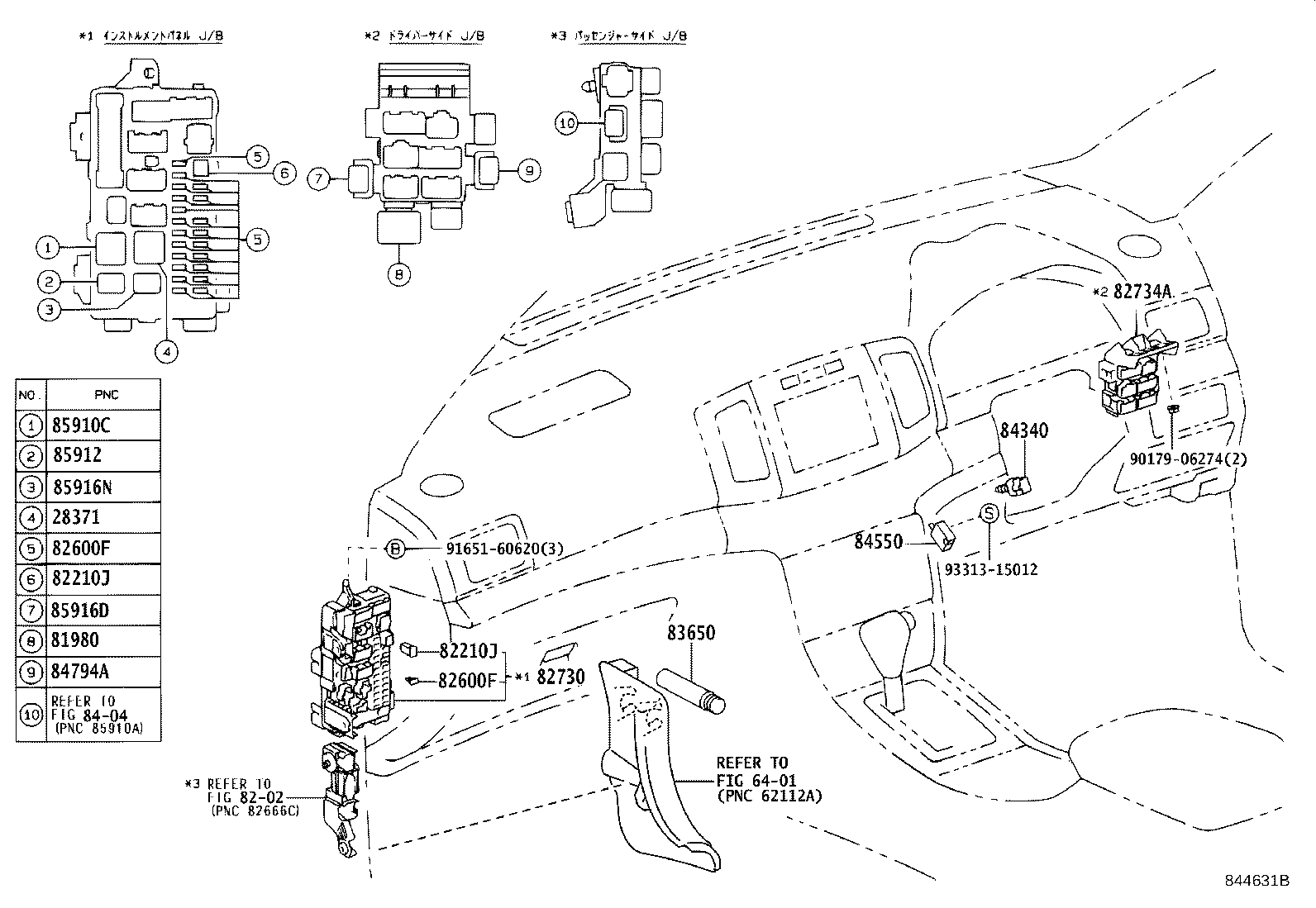

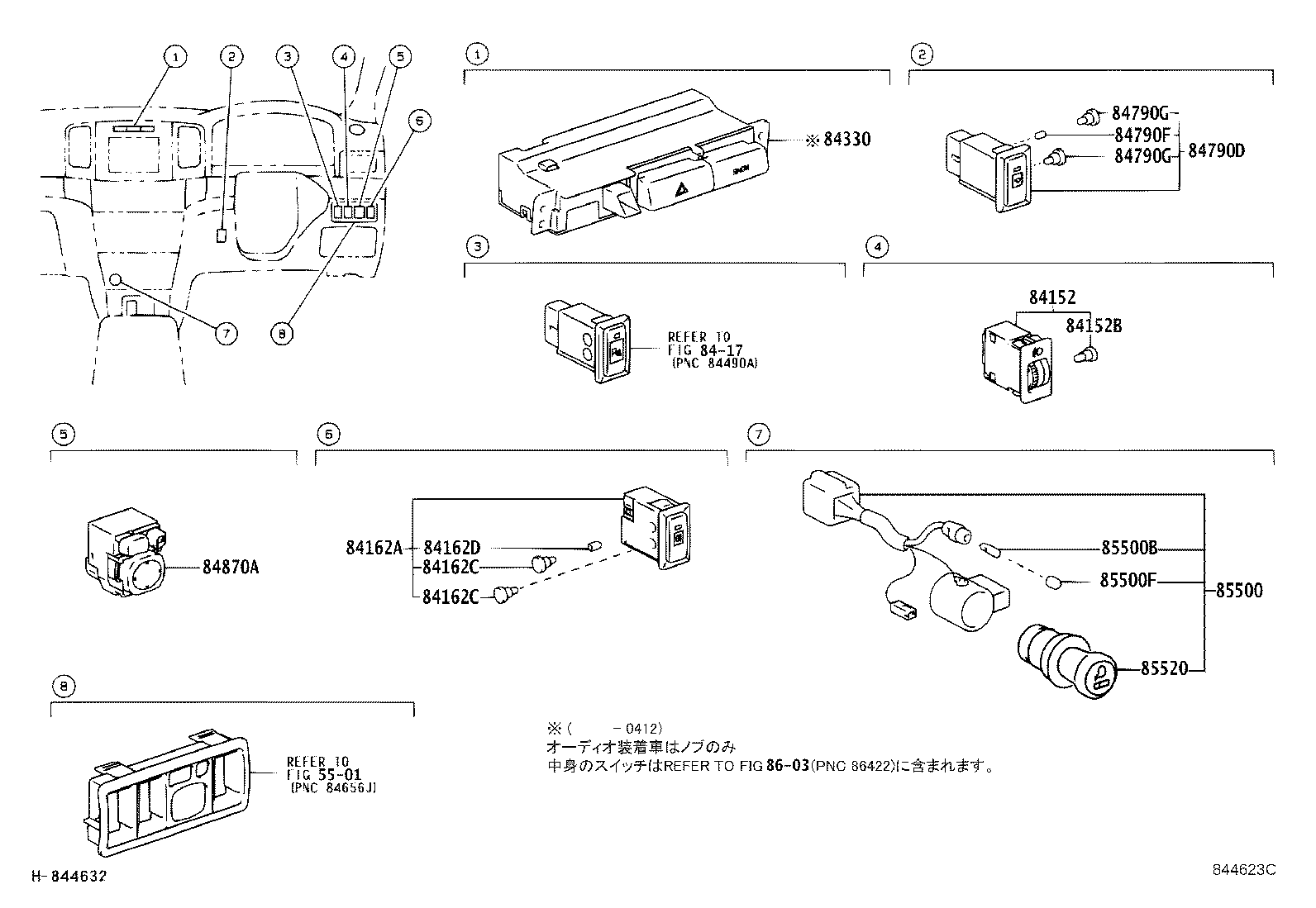

Figure 844627 844627 2001-12 → 2004-12 Figure 846721 846721 2004-12 → — Figure 844628B 844628B 2001-12 → — Figure 844629B 844629B 2001-12 → 2004-12 Figure 846720 846720 2004-12 → — Figure 844630A 844630A 2001-12 → — Figure 844631B 844631B 2001-12 → 2004-12 Figure 846722A 846722A 2004-12 → — Figure 844632C 844632C 2001-12 → — Figure 844633 844633 2001-12 → — Figure 844634 844634 2001-12 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28371 Relay, Ignition, NO.1
81980 Flasher Assy, Turn Signal
82210J Fusible Link
82600F Fuse, Fuse Block
82662A Cover, Relay Block, Upper, NO.1
82663 Cover, Relay Block, Lower
82715 Bracket,Wiring Harness Clamp
82730 Block Assy, Instrument Panel Junction
82734A Block, Center Junction
82741 Block, Engine Room Relay
82742 Block, Engine Room Relay, NO.2
83320 Gage Assy, Fuel Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
83650 Fusee
84052 Switch Assy, Un-lock Warning
84140 Switch Assy, Headlamp Dimmer
84152 Switch, Headlamp Leveling
84152B Bulb (FOR HEADLAMP LEVELING SWITCH)
84162A Switch, Rear Fog Lamp
84162C Bulb (FOR REAR FOG LAMP SWITCH)
84162D Cap, Rear Fog Lamp Bulb
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84306 Cable Sub-assy, Spiral
84330 Switch Assy, Hazard Warning Signal
84340 Switch Assy, Stop Lamp
84450 Switch Assy, Ignition OR Starter
84540 Switch Assy, Neutral Start
84550 Switch Assy, Parking Brake
84650 Switch Assy, Windshield Wiper
84790D Switch Assy, Windshield Defogger
84790F Cap, Bulb(FOR WINDSHIELD DEFOGGER SWITCH)
84790G Bulb(FOR WINDSHIELD DEFOGGER SWITCH)
84794A Relay, FR Wiper Deicer
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84820 Master Switch Assy, Power Window Regulator
84870A Switch Assy, Outer Mirror
85500 Lighter Assy, Cigarette
85500B Bulb, Cigarette Lighter
85500F Cap, Cigarette Lighter Bulb
85520 Knob And Element Assy, Cigarette Lighter
85910C Relay Assy (FOR HEATER BLOWER MOTOR)
85912 Relay, Defogger
85916D Relay, Fog Lamp
85916N Relay, Taillamp
85916P Relay, Headlamp
85927 Relay, Cooling Fan
85927A Relay, Cooling Fan, NO.2
85928B Resistor, Cooling Fan
85934 Relay, Magnet-clutch
85940 Relay Assy, Windshield Wiper
86530 Relay Assy, Horn
89221 Computer, Multiplex Network Body
89245B Sensor, Steering
89437 Cover, Sensor
89438 Switch, Power Steering Oil Pressure
89448A Sensor, Power Steering Oil Pressure
89465 Sensor, Oxygen
89465A Sensor, Oxygen NO.2
89467B Sensor, Air Fuel Ratio
89615 Sensor, Knock Control
89960 Computer Assy, Headlamp Leveling
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
