Toyota Premio/Allion

2001-12 → 2007-05 · chassis AZT240,NZT240,ZZT24# · catalogue 271150 · Japan

Discontinued model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Fuel Injection System

14 part groups · 3 illustrations

Illustrations

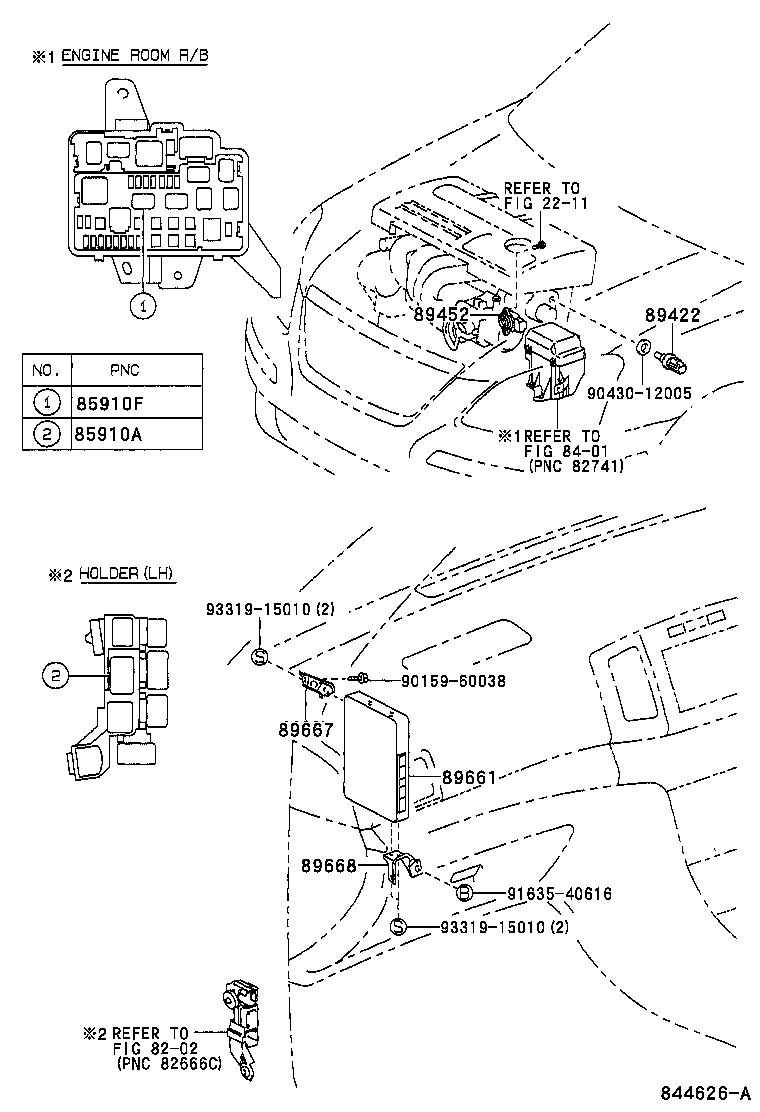

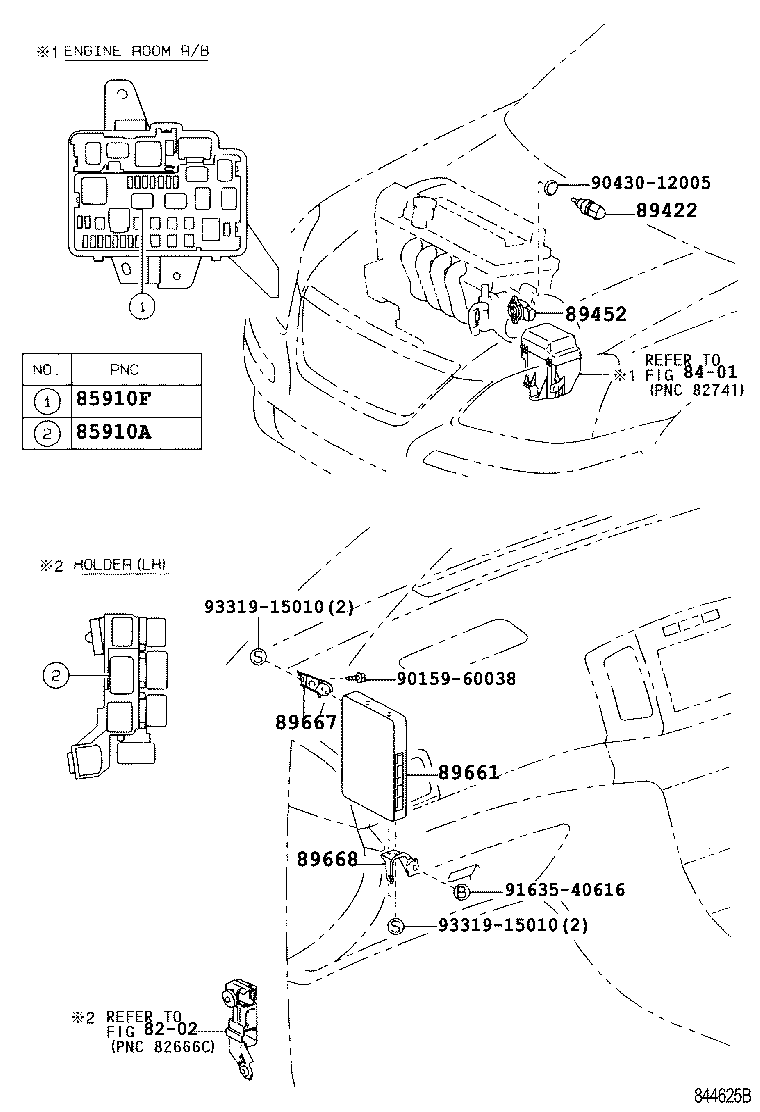

Figure 844624E 844624E 2001-12 → — Figure 844625B 844625B 2001-12 → — Figure 844626A 844626A 2001-12 → —

Part groups

PNCDescription
85910A Relay Assy, Circuit Opening (FOR EFI)
85910F Relay, Computer (FOR EFI)
85910Z Relay, Injection (FOR EFI)
85911C Relay, Efi 2
89420 Sensor Assy, Vacuum
89421 Sensor Assy, Vacuum (FOR E.F.I.)
89422 Sensor, Water Temperature (FOR E.F.I.)
89424 Sensor, Inlet Air Temperature (FOR E.F.I.)
89452 Sensor, Throttle Position (FOR E.F.I.)
89661 Computer, Engine Control
89667 Bracket, Engine Control Computer
89668 Bracket, Engine Control Computer, NO.2
89871 Driver, Injector
89879 Bracket, Injector Driver
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
