Toyota Premio/Allion

2001-12 → 2007-05 · chassis AZT240,NZT240,ZZT24# · catalogue 271150 · Japan

Discontinued model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

10 part groups · 6 illustrations

Illustrations

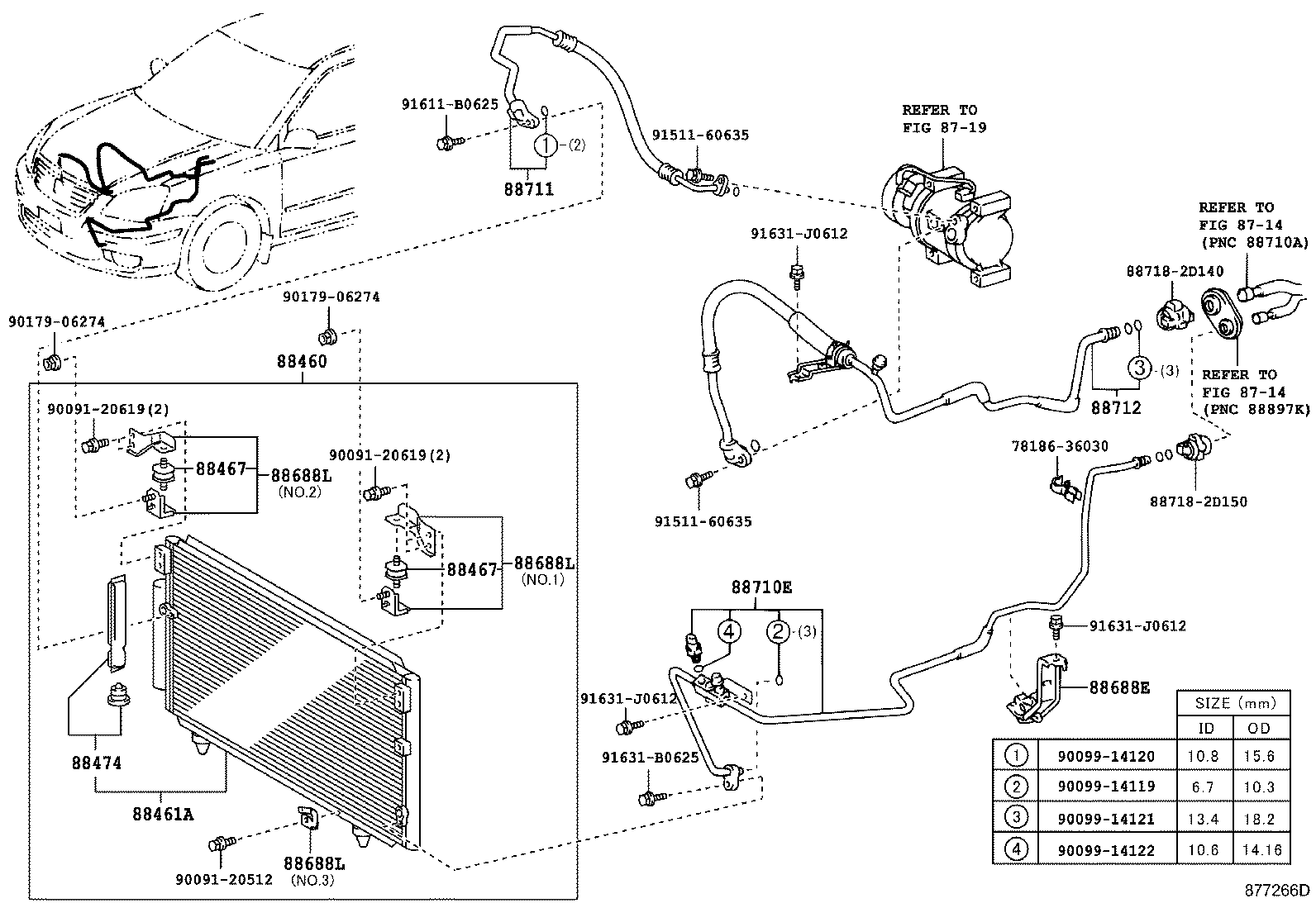

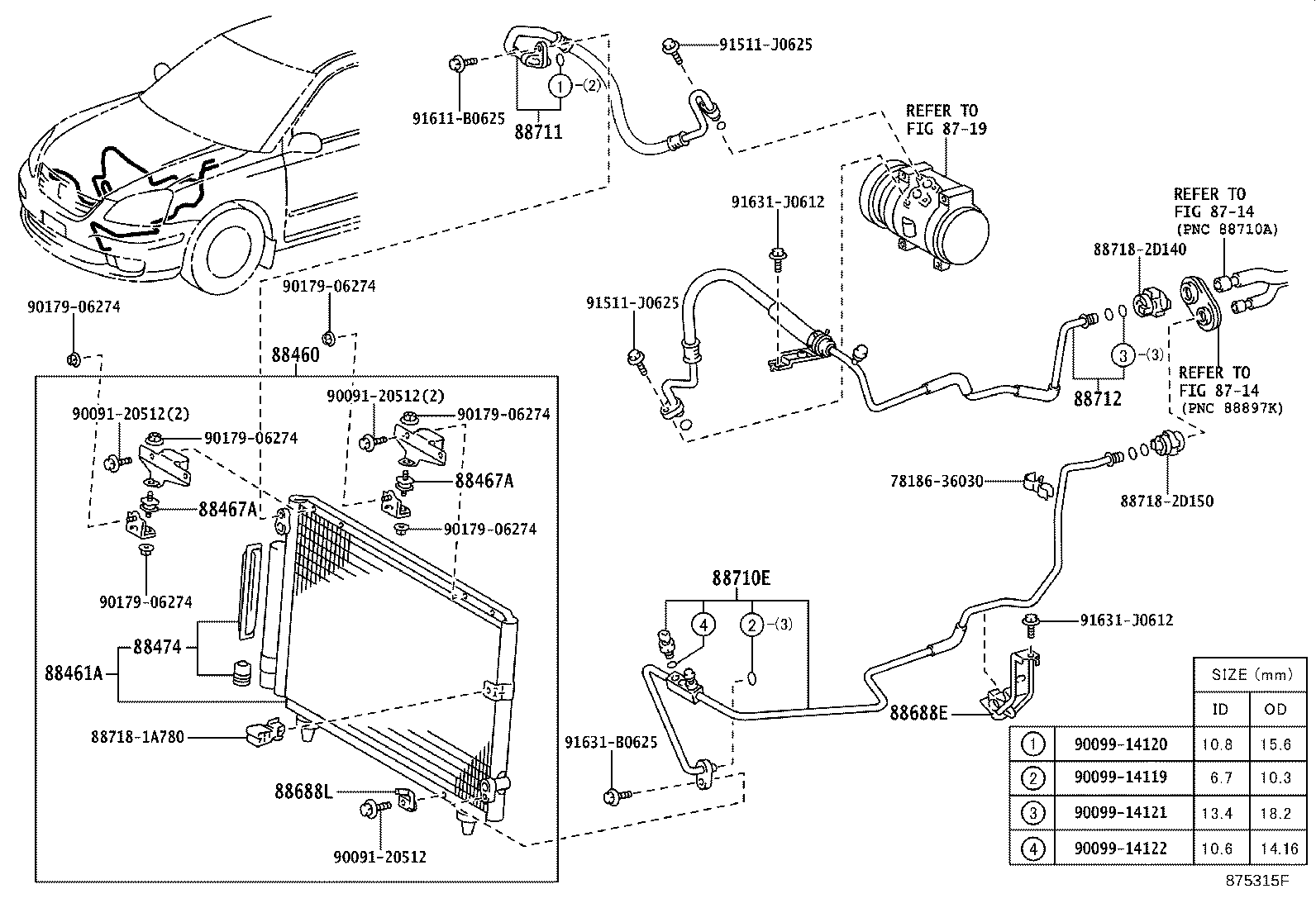

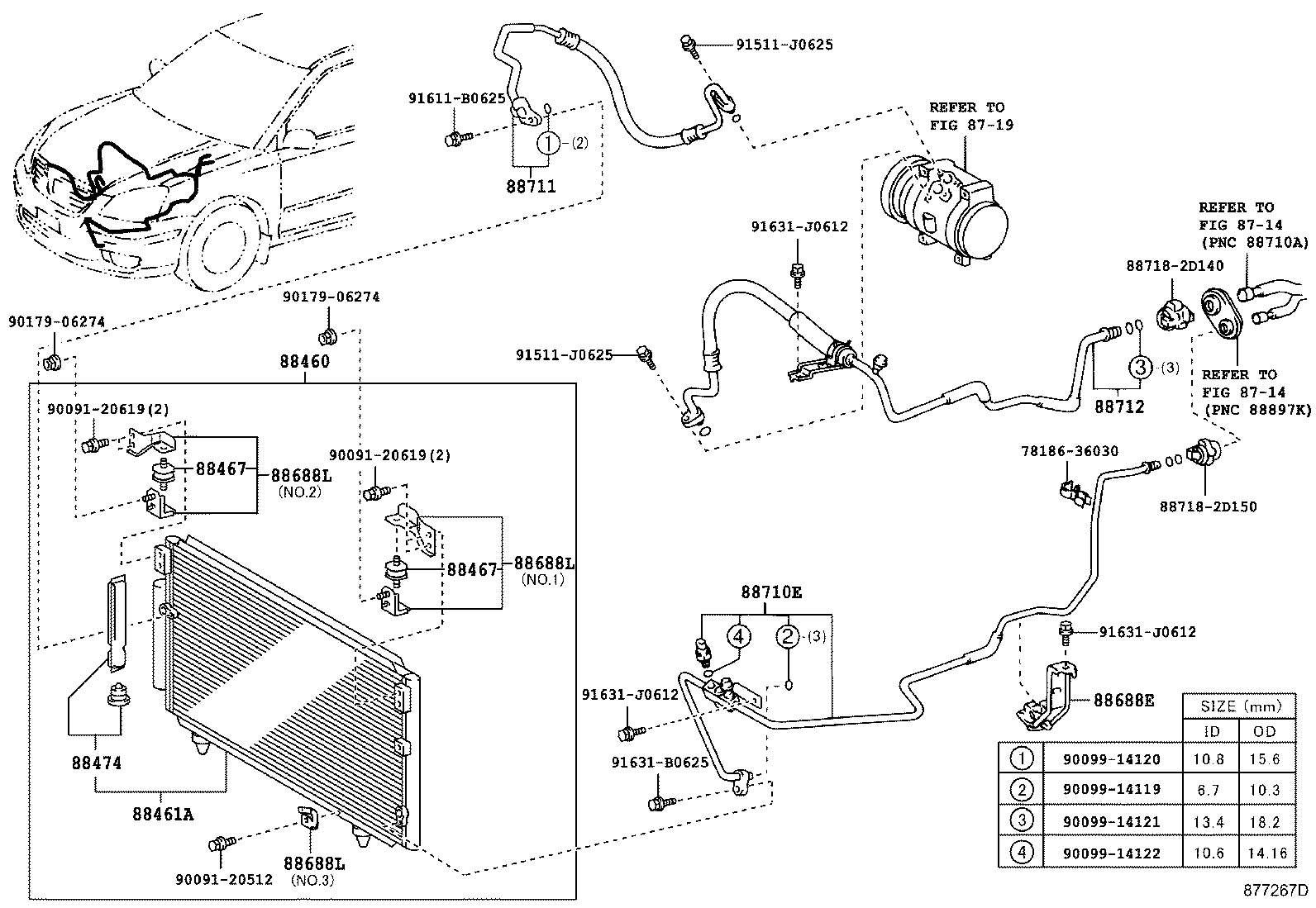

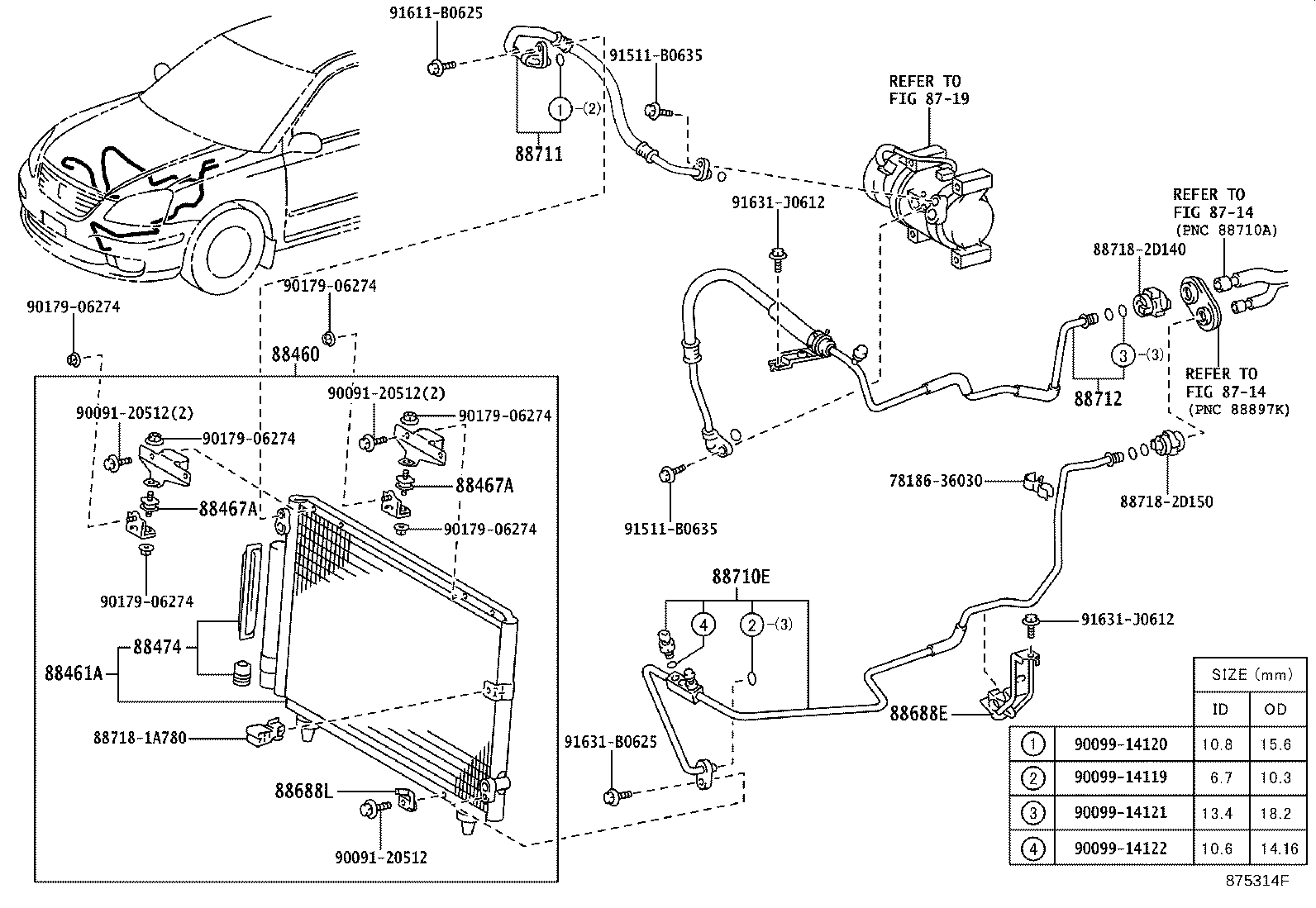

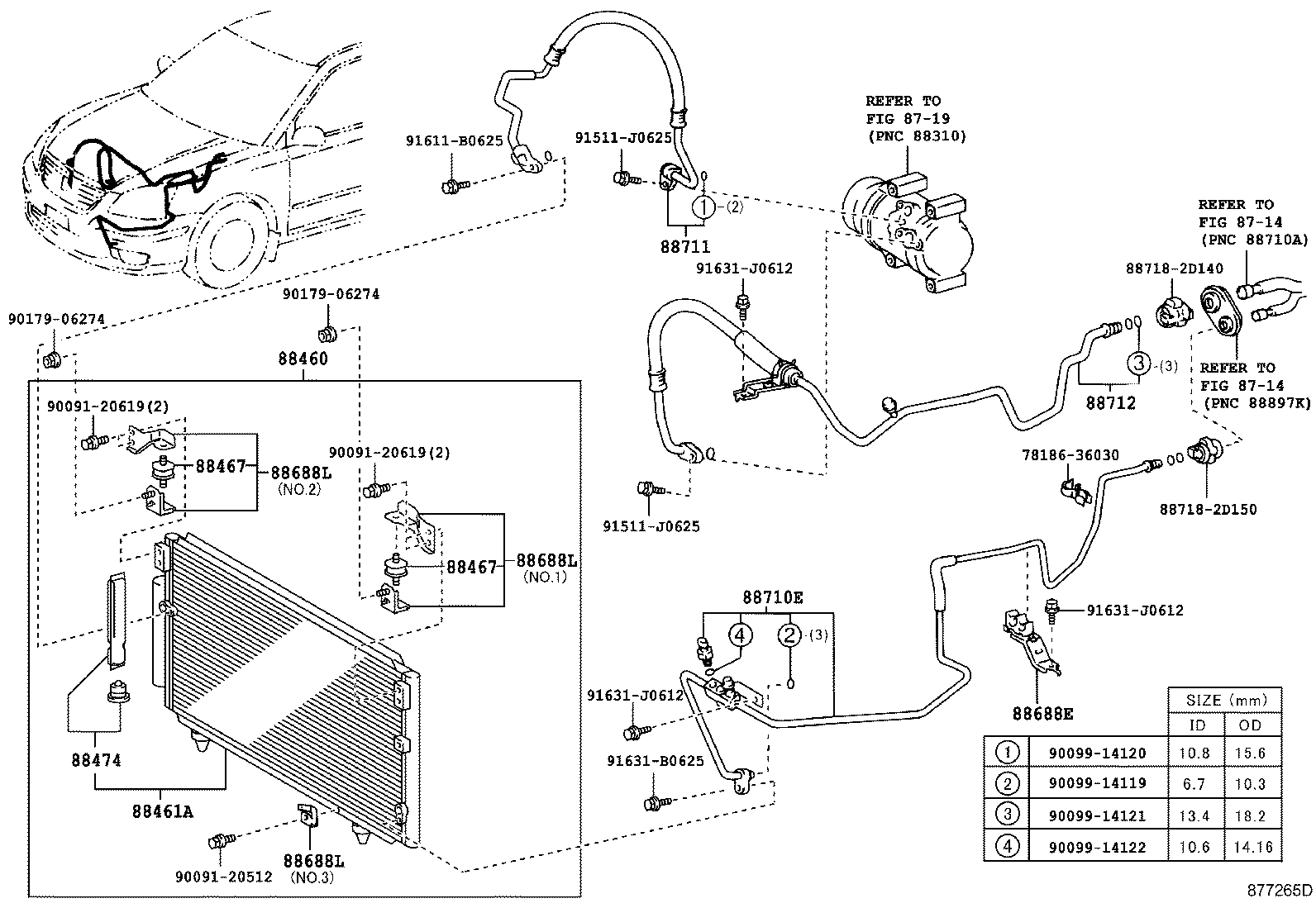

Figure 875313F 875313F 2001-12 → 2004-12 Figure 875314F 875314F 2001-12 → 2004-12 Figure 875315F 875315F 2001-12 → 2004-12 Figure 877265D 877265D 2004-12 → — Figure 877266D 877266D 2004-12 → — Figure 877267D 877267D 2004-12 → —

Part groups

PNCDescription
88460 Condenser Assy, Cooler
88461A Core, Cooler Condenser
88467 Cushion, Cooler Condenser, NO.1
88467A Cushion, Cooler Condenser, NO.2
88474 Dryer, Cooler
88688E Bracket, Cooler Refrigerant Hose, NO.1
88688L Bracket, Condenser Packing
88710E Tube & Accessory Assy, Air Conditioner
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
