Factory parts data · Europe

Toyota Premio/Allion

2001-12 → 2007-05 · chassis AZT240,NZT240,ZZT24# · catalogue 271150 · Japan

Discontinued model Data version 2007-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

4 part groups · 3 illustrations

Illustrations

875296 2001-12 → —

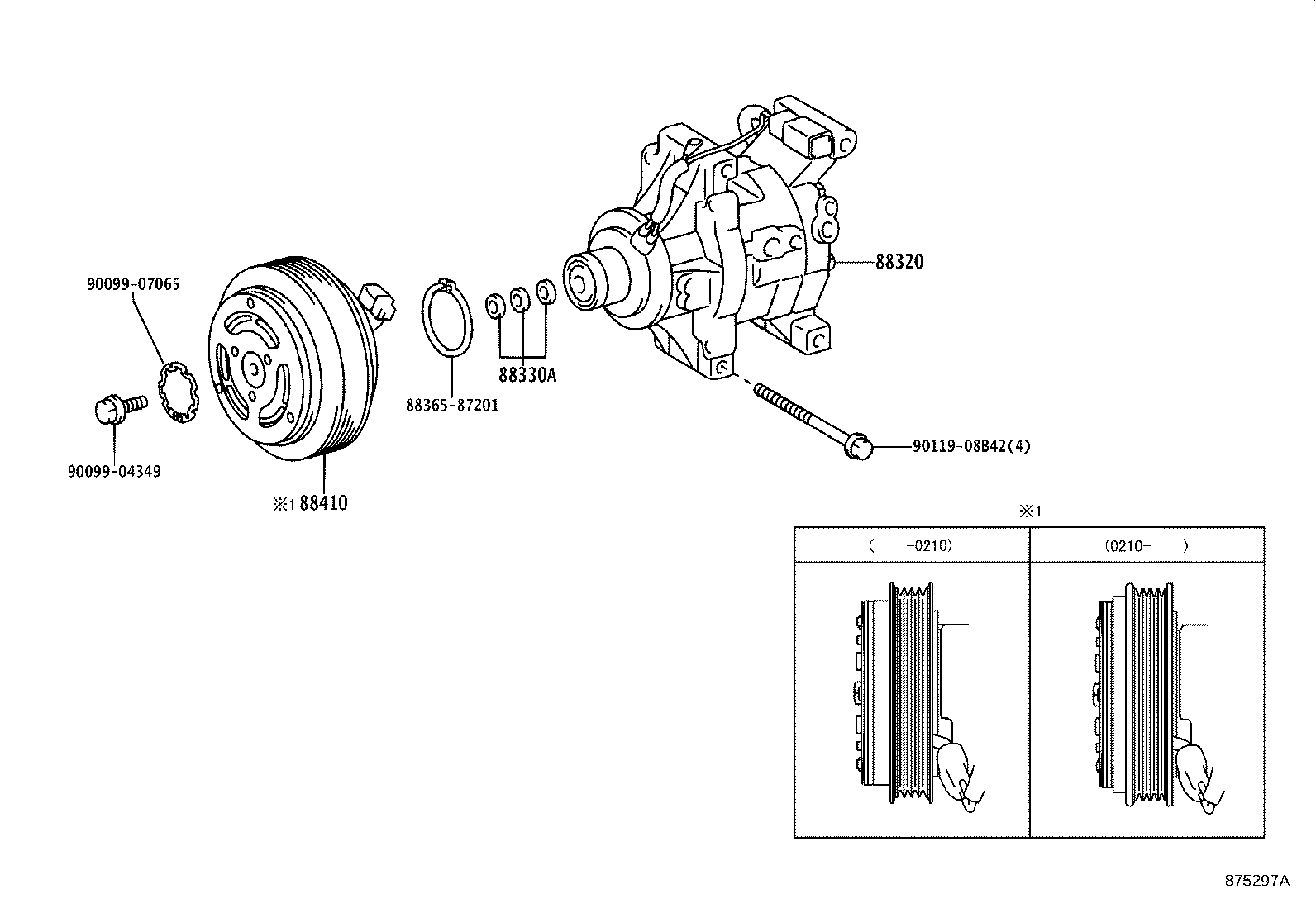

Figure 875297A

875297A 2001-12 → —

Figure 875298A

875298A 2001-12 → —

Part groups

PNC	Description
88310	Compressor Assy, W/Pulley
88320	Compressor Assy, Cooler
88330A	Washer (FOR MAGNET CLUTCH)
88410	Clutch Assy, Magnet

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
