Water Pump

4 part groups · 3 illustrations

Illustrations

Figure 163134E

163134E 2007-05 → —

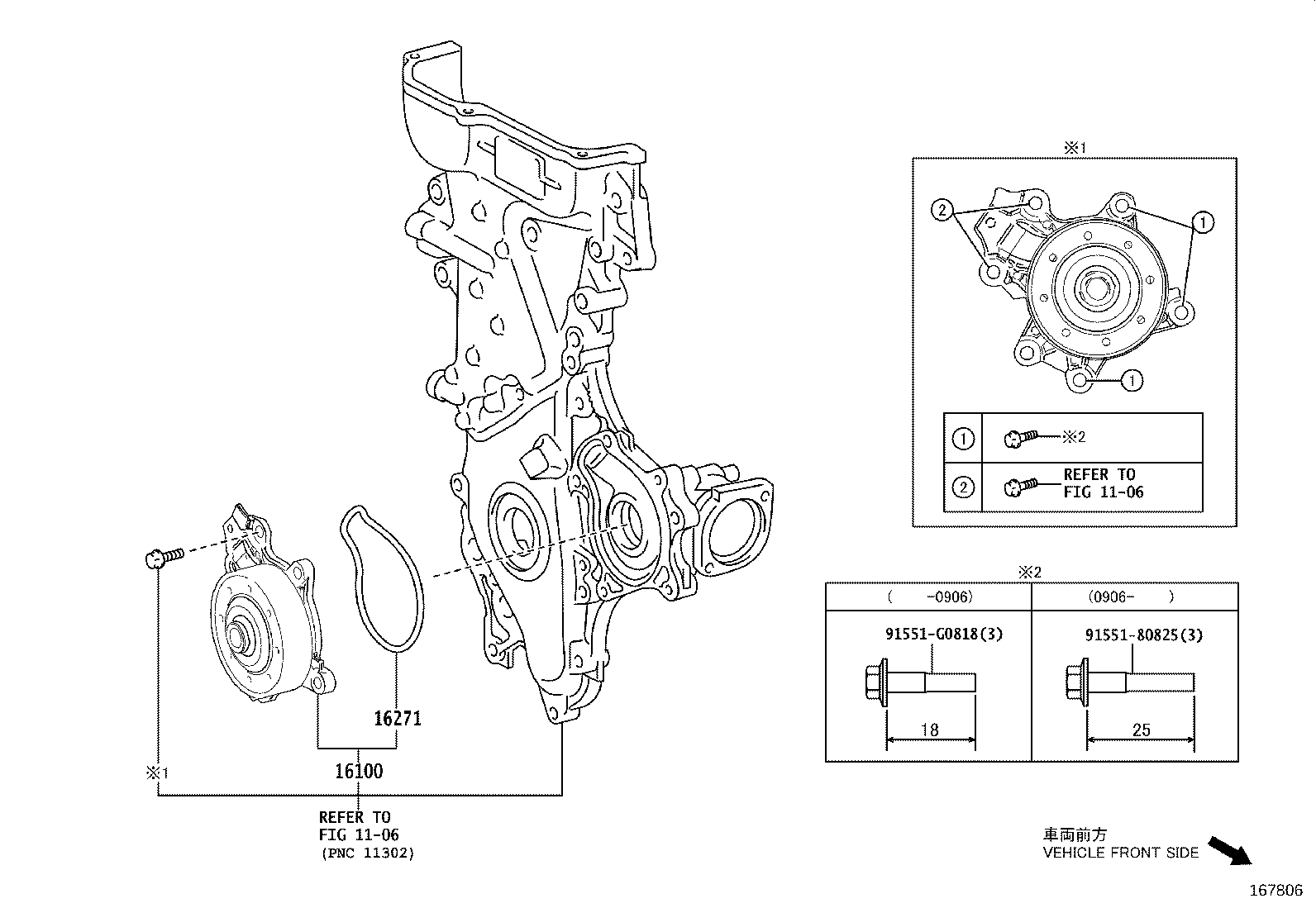

167806 2007-05 → 2012-12

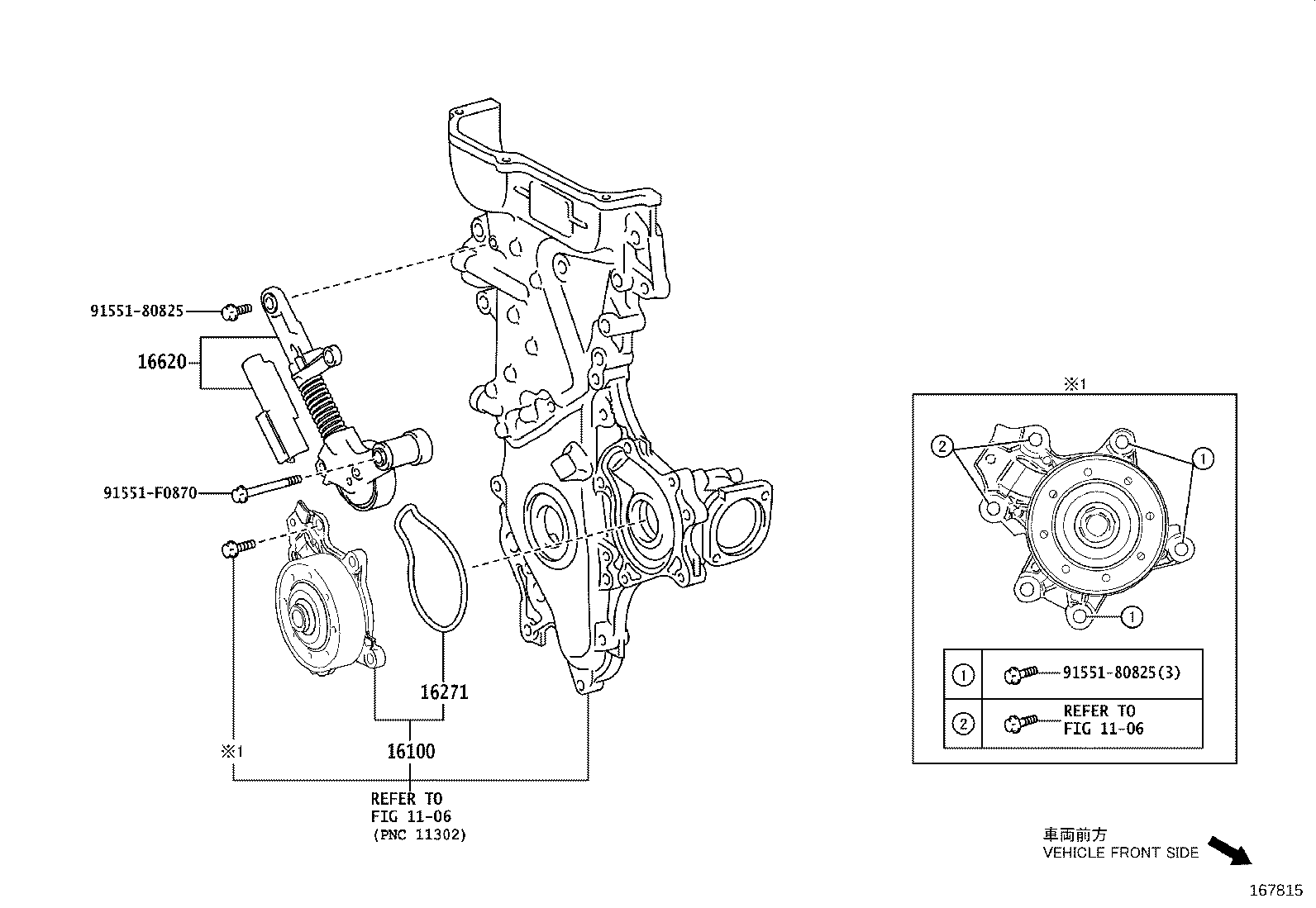

167815 2012-12 → —

Part groups

PNC	Description
16100	Pump Assy, Engine Water
16173	Pulley, Water Pump
16271	Gasket, Water Pump
16620	Tensioner Assy, V-ribbed Belt

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
