Toyota Premio/Allion
2007-05 → 2021-03 · chassis NZT260,ZRT26# · catalogue 271160 · Japan
Supported model
Data version 2022-07

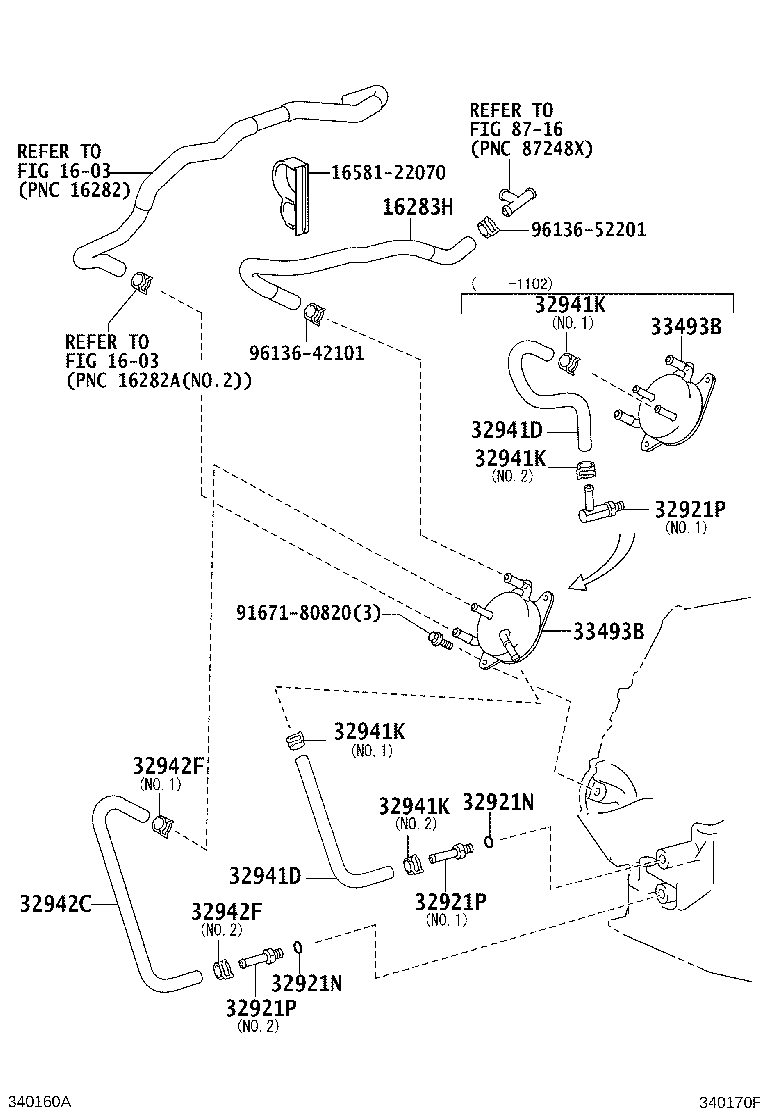

Oil Cooler & Tube(CVT)
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 16283H | Hose, Water By-pass, NO.6 |
| 32921N | Ring, O(FOR OIL COOLER TUBE UNION) |
| 32921P | Union(FOR OIL COOLER TUBE) |
| 32941D | Hose, Oil Cooler Inlet |
| 32941K | Clip, NO.1(FOR OIL COOLER HOSE) |
| 32942C | Hose, Oil Cooler Outlet, NO.1 |
| 32942F | Clip, NO.2(FOR OIL COOLER HOSE) |
| 33490D | Cooler Assy, Transmission Oil |
| 33490E | Ring, O (FOR TRANSMISSION OIL COOLER) |
| 33493B | Cooler, Oil |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
