Toyota Premio/Allion

2007-05 → 2021-03 · chassis NZT260,ZRT26# · catalogue 271160 · Japan

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

15 part groups · 2 illustrations

Illustrations

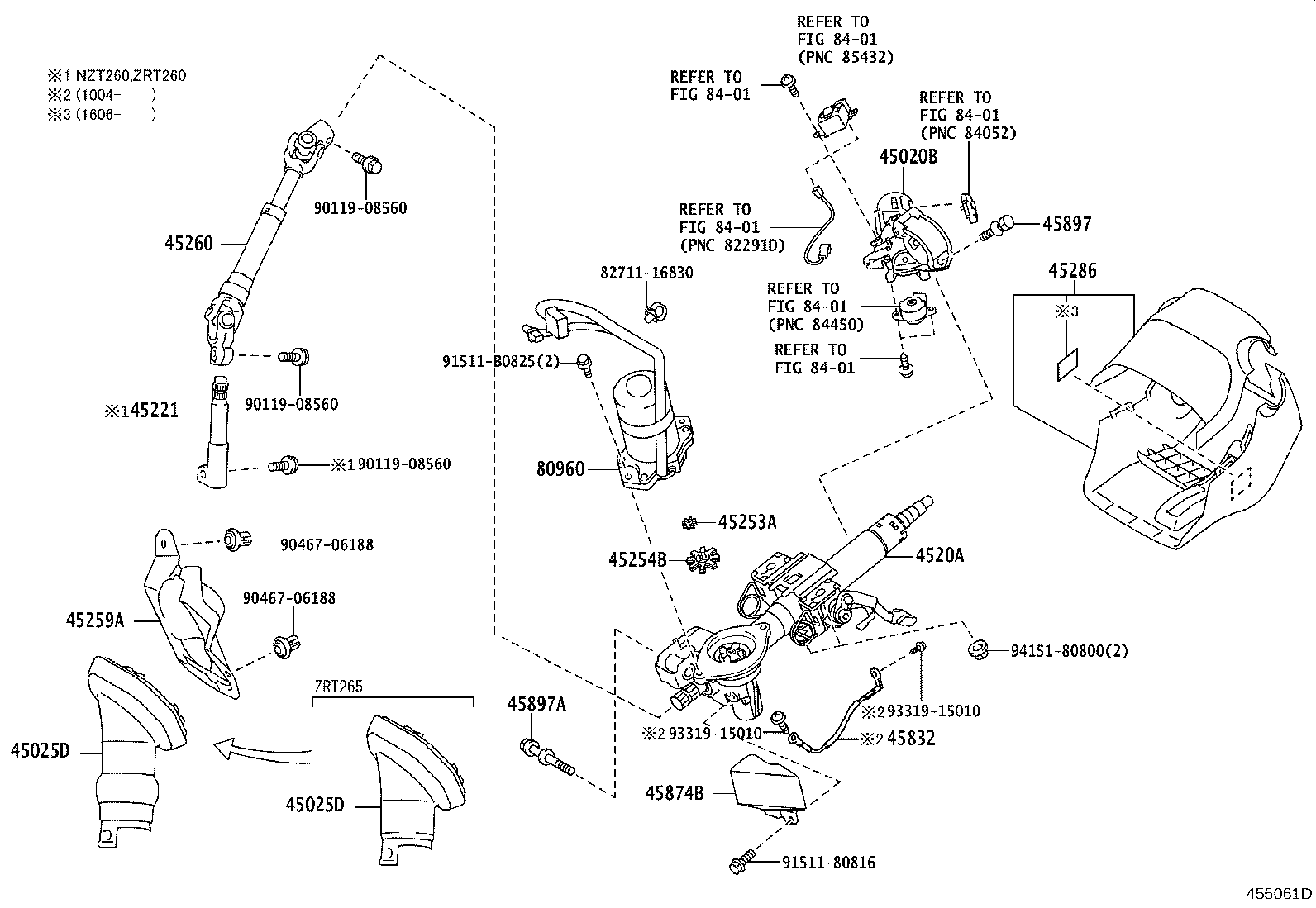

Figure 454933E 454933E 2007-05 → — Figure 455061D 455061D 2007-12 → —

Part groups

PNCDescription
45020B Actuator OR Upper Bracket Assy, Steering Lock
45020C Actuator Assy, Steering Lock(W/ECU)
45025D Cover Sub-assy, Steering Column Hole, NO.1
4520A Column Sub-assy, Electric Power Steering
45221 Shaft, Steering Intermediate
45253A Spacer, Electric Power Steering Motor Shaft
45254B Damper, Electric Power Steering Motor Shaft
45259A Sheet, Column Hole Cover Silencer
45260 Shaft Assy, Steering Intermediate, NO.2
45286 Cover, Steering Column
45832 Cable, Tilt Steering Support Bond
45874B Protector, Steering Column, NO.1
45897 Bolt, Steering Lock Set
45897A Bolt, Tilt Steering Pawl Set
80960 Motor Assy, Power Steering
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
