Toyota Premio/Allion

2007-05 → 2021-03 · chassis NZT260,ZRT26# · catalogue 271160 · Japan

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Parking Brake & Cable

12 part groups · 2 illustrations

Illustrations

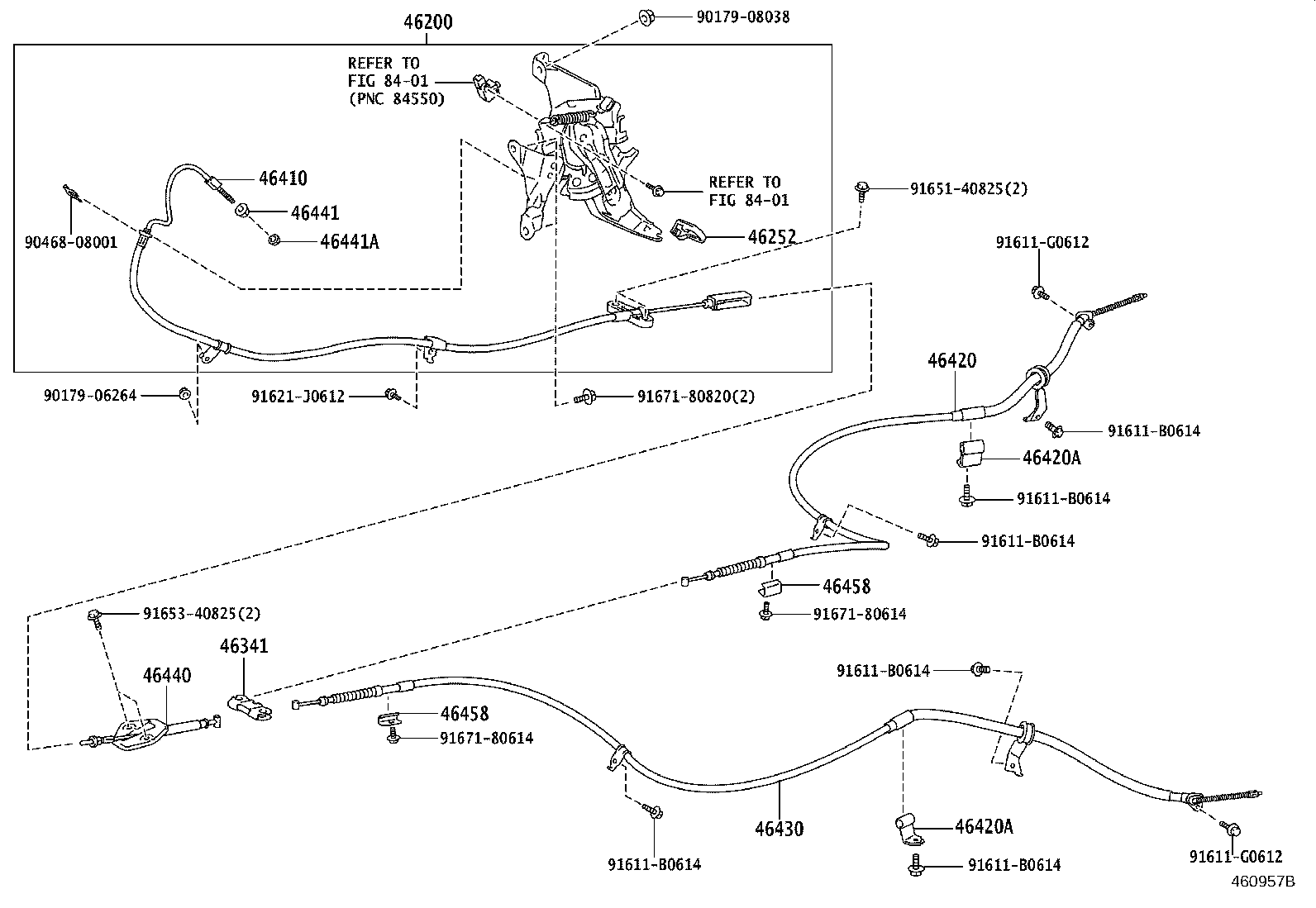

Figure 460956A 460956A 2007-05 → — Figure 460957B 460957B 2007-05 → —

Part groups

PNCDescription
46200 Pedal Assy, Parking Brake Control
46252 Pad, Parking Pedal
46341 Equalizer, Parking Brake
46410 Cable Assy, Parking Brake, NO.1
46420 Cable Assy, Parking Brake, NO.2
46420A Clamp, NO.1(FOR PARKING BRAKE CABLE)
46430 Cable Assy, Parking Brake, NO.3
46439 Insulator, Parking Brake Cable Heat
46440 Cable Assy, Parking Brake, NO.4
46441 Nut, Wire Adjusting, NO.1
46441A Nut, Wire Adjusting, NO.2
46458 Retainer, Cable
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
