Toyota Premio/Allion

2007-05 → 2021-03 · chassis NZT260,ZRT26# · catalogue 271160 · Japan

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

16 part groups · 2 illustrations

Illustrations

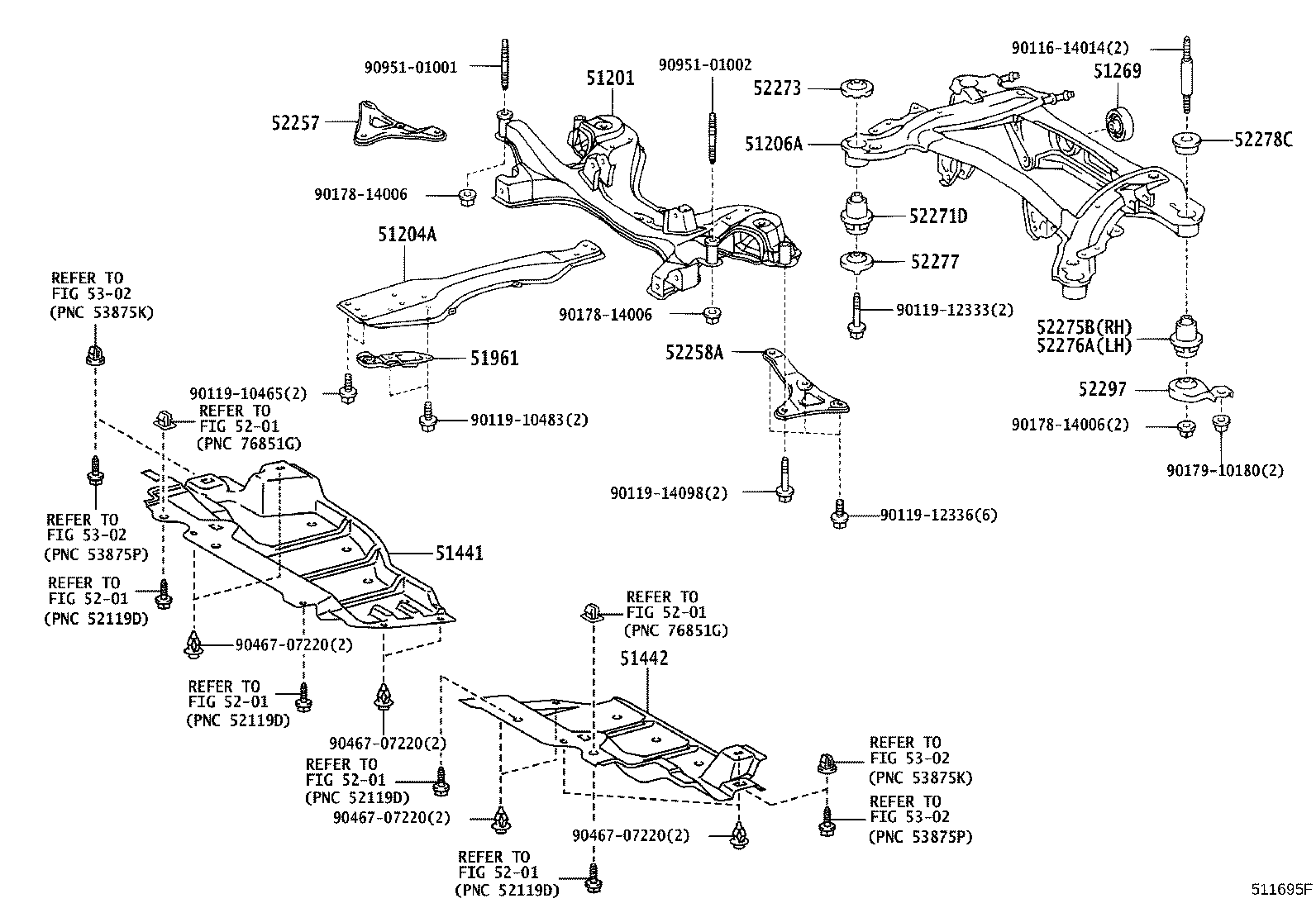

Figure 511694F 511694F 2007-05 → — Figure 511695F 511695F 2007-05 → —

Part groups

PNCDescription
51201 Crossmember Sub-assy, Front Suspension
51204A Member Sub-assy, Engine Mounting, Center
51206A Member Sub-assy, Rear Suspension
51269 Damper, Differential Support Member
51441 Cover, Engine Under, NO.1
51442 Cover, Engine Under, NO.2
51961 Hook, NO.1
52257 Brace, Front Suspension Member, Rear RH
52258A Brace, Front Suspension Member, Rear LH
52271D Cushion, Rear Suspension Member Body Mounting, Front
52273 Stopper, Rear Suspension Member, Lower
52275B Cushion, Rear Suspension Member Body Mount, Rear RH
52276A Cushion, Rear Suspension Member Body Mount, Rear LH
52277 Retainer, Rear Suspension Member Lower Stopper, RH
52278C Stopper, Rear Suspension Member, Rear Lower
52297 Brace, Rear Suspension Member, Rear Lower RH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
