Toyota Premio/Allion
2007-05 → 2021-03 · chassis NZT260,ZRT26# · catalogue 271160 · Japan
Supported model
Data version 2022-07

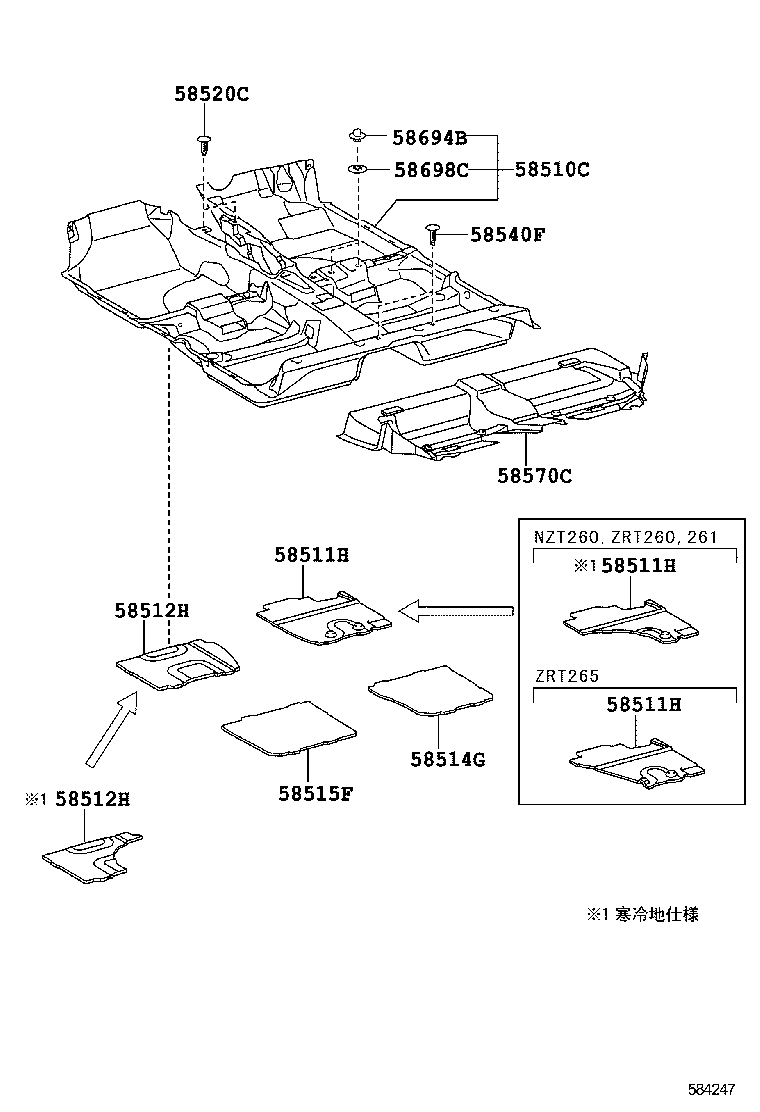

Mat & Carpet
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58510C | Carpet Assy, Front Floor, Front |
| 58511H | Mat, Floor, Front RH |
| 58512H | Mat, Floor, Front LH |
| 58514G | Mat, Floor, Rear RH |
| 58515F | Mat, Floor, Rear LH |
| 58520C | Clip(FOR FRONT FLOOR CARPET) |
| 58540F | Clip(FOR REAR FLOOR CARPET) |
| 58570C | Carpet Assy, Rear Floor |
| 58694B | Plate, Mat Set, Upper |
| 58698C | Plate, Mat Set, Lower |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
