Toyota Premio/Allion
2007-05 → 2021-03 · chassis NZT260,ZRT26# · catalogue 271160 · Japan
Supported model
Data version 2022-07

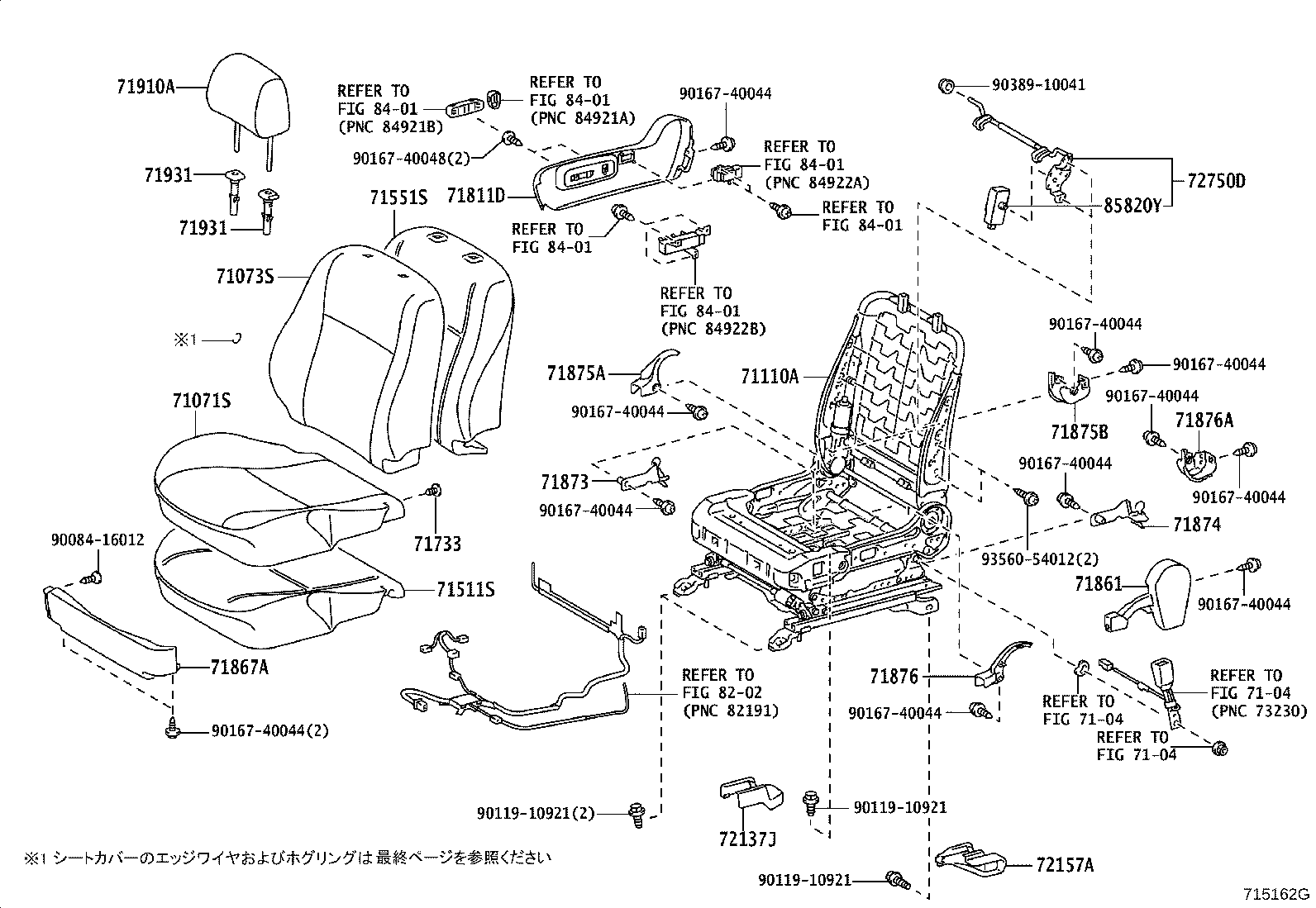

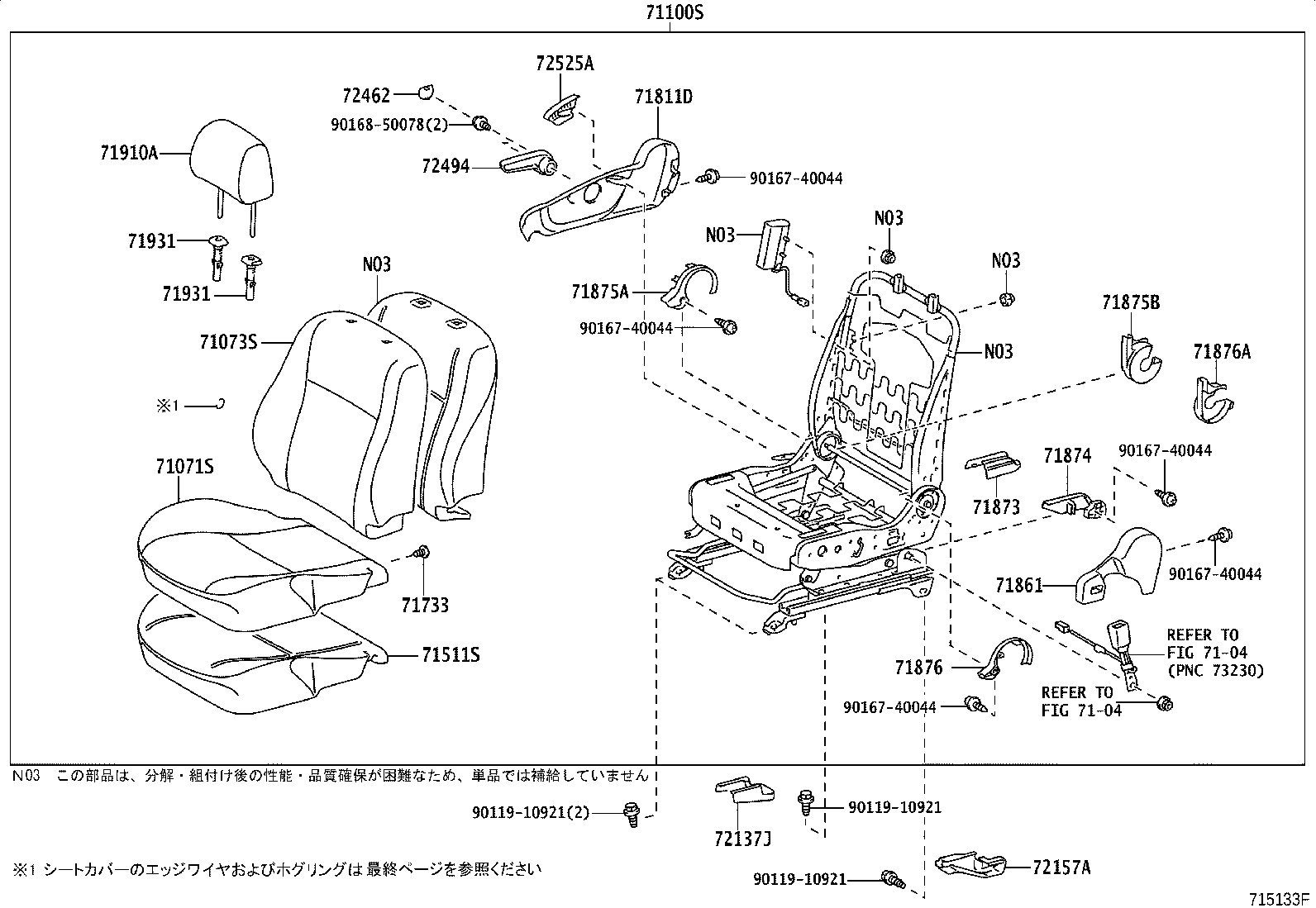

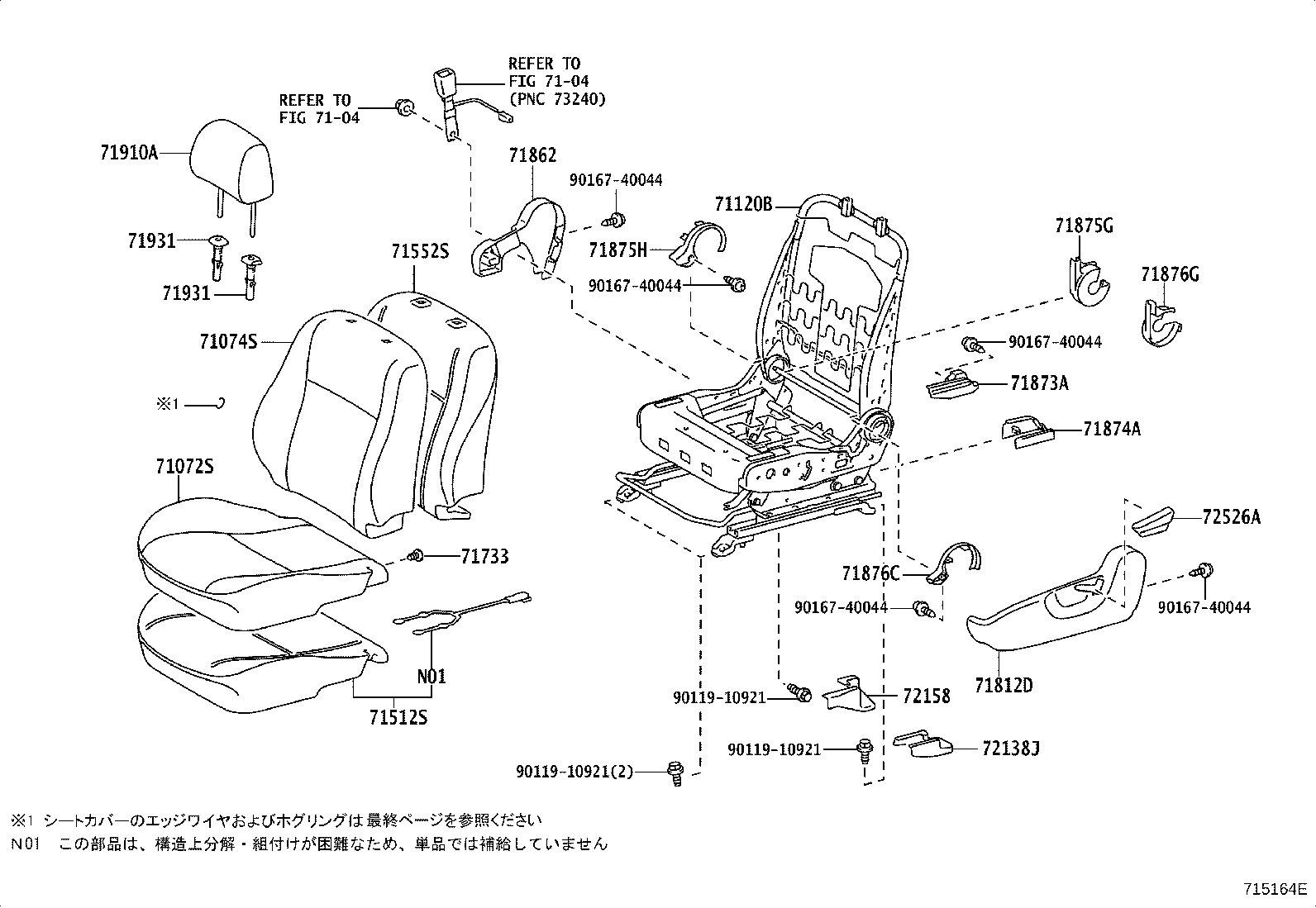

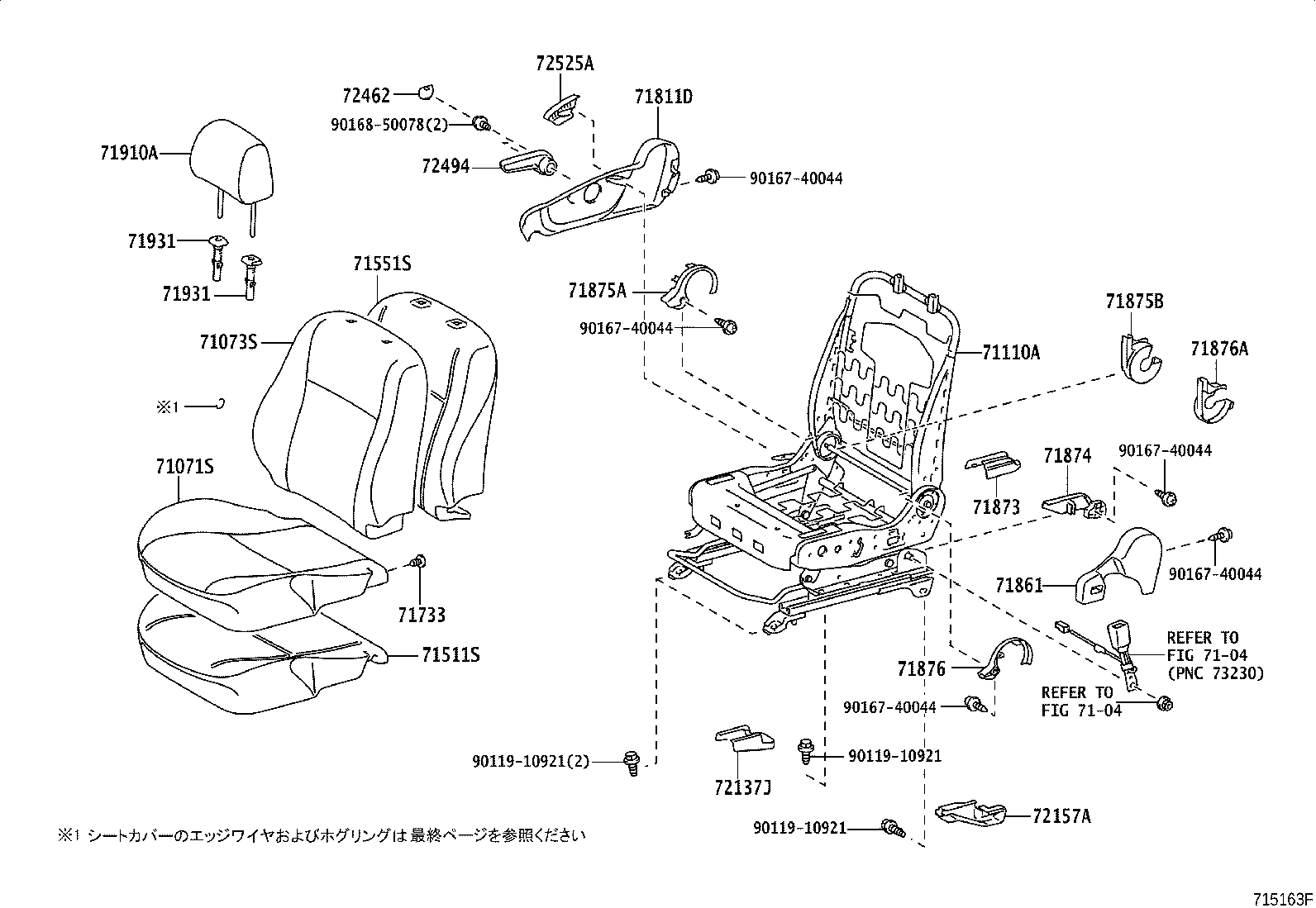

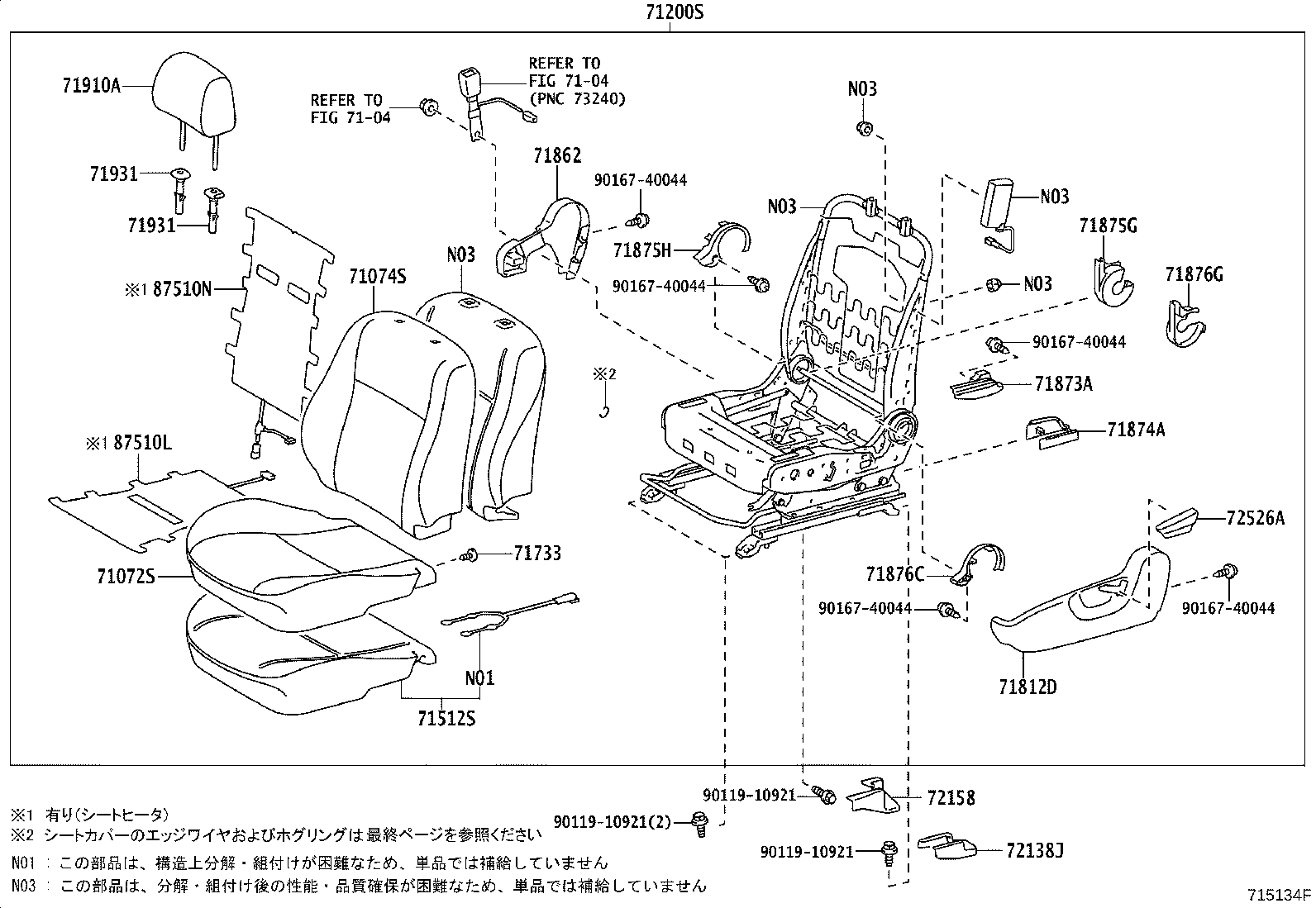

Front Seat & Seat Track
46 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71072S | Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71074S | Cover, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71100S | Seat Assy, Front RH |
| 71110A | Frame Assy, Front Seat W/Adjuster, RH |
| 71120B | Frame Assy, Front Seat W/Adjuster, LH |
| 71200S | Seat Assy, Front LH |
| 71511S | Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71512S | Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71551S | Pad, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71552S | Pad, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71733 | Retainer, Seat Cover Fastener, A (FOR FRONT SEAT) |
| 71811D | Shield, Front Seat Cushion, RH |
| 71812D | Shield, Front Seat Cushion, LH |
| 71861 | Shield, Front Seat Cushion, Inner RH |
| 71862 | Shield, Front Seat Cushion, Inner LH |
| 71867A | Shield, Front Seat Cushion, Inner NO.1 RH |
| 71873 | Shield, Front Seat Cushion, Lower RH |
| 71873A | Shield, Front Seat Cushion, Lower |
| 71874 | Shield, Front Seat Cushion, Lower LH |
| 71874A | Shield, Front Seat Cushion, Lower LH |
| 71875A | Cover, Reclining Adjuster Inside, RH |
| 71875B | Cover, Reclining Adjuster Inside, RH |
| 71875G | Cover, Reclining Adjuster Inside, RH (FOR LH SEAT) |
| 71875H | Cover, Reclining Adjuster Inside, RH (FOR LH SEAT) |
| 71876 | Cover, Reclining Adjuster Inside, LH |
| 71876A | Cover, Reclining Adjuster Inside, LH |
| 71876C | Cover, Reclining Adjuster Inside, LH |
| 71876G | Cover, Reclining Adjuster Inside, LH (FOR LH SEAT) |
| 71910A | Headrest Assy, Front Seat |
| 71931 | Support, Front Seat Headrest |
| 72137J | Cover, Front Seat Track, RH Rear Outer |
| 72138J | Cover, Front Seat Track, LH Rear Outer |
| 72157A | Cover, Seat Track Bracket, Inner RH |
| 72158 | Cover, Seat Track Bracket, Inner LH |
| 72462 | Cover, Vertical Adjuster RH |
| 72494 | Handle, Vertical Adjusting, RH |
| 72525A | Handle, Reclining Adjuster Release, RH |
| 72526A | Handle, Reclining Adjuster Release, LH |
| 72750D | Adjuster Assy, Lumbar Support, RH |
| 85820Y | Motor Assy, Power Seat |
| 87510K | Heater Assy, Front Seat Cushion, RH |
| 87510L | Heater Assy, Front Seat Cushion, LH |
| 87510M | Heater Assy, Front Seatback, RH |
| 87510N | Heater Assy, Front Seatback, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
