Toyota Premio/Allion

2007-05 → 2021-03 · chassis NZT260,ZRT26# · catalogue 271160 · Japan

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate (EXTERIOR & INTERIOR)

6 part groups · 2 illustrations

Illustrations

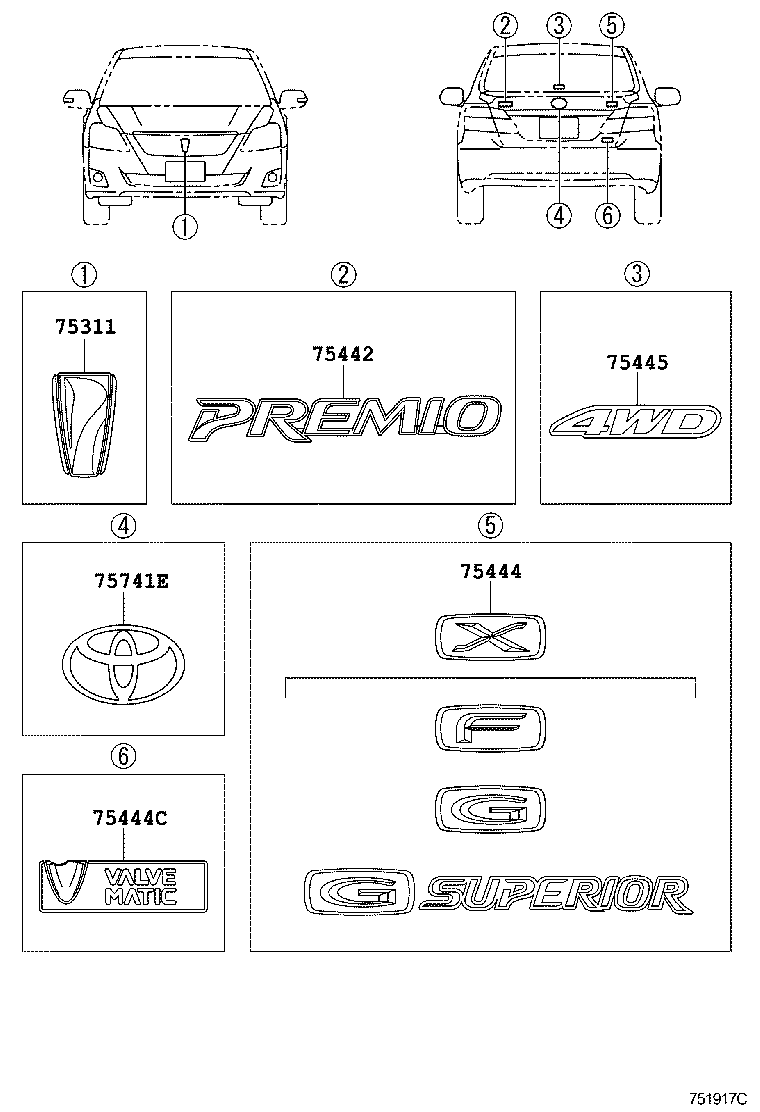

Figure 751916B 751916B 2007-05 → — Figure 751917C 751917C 2007-05 → —

Part groups

PNCDescription
75311 Emblem, Radiator Grille (OR FRONT PANEL)
75442 Plate, Luggage Compartment Door Name, NO.2
75444 Plate, Luggage Compartment Door, NO.4
75444C Plate, Luggage Compartment Door Name, NO.4
75445 Plate, Luggage Compartment Door Name, NO.5
75741E Emblem, Symbol
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
