Toyota Premio/Allion

2007-05 → 2021-03 · chassis NZT260,ZRT26# · catalogue 271160 · Japan

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

9 part groups · 2 illustrations

Illustrations

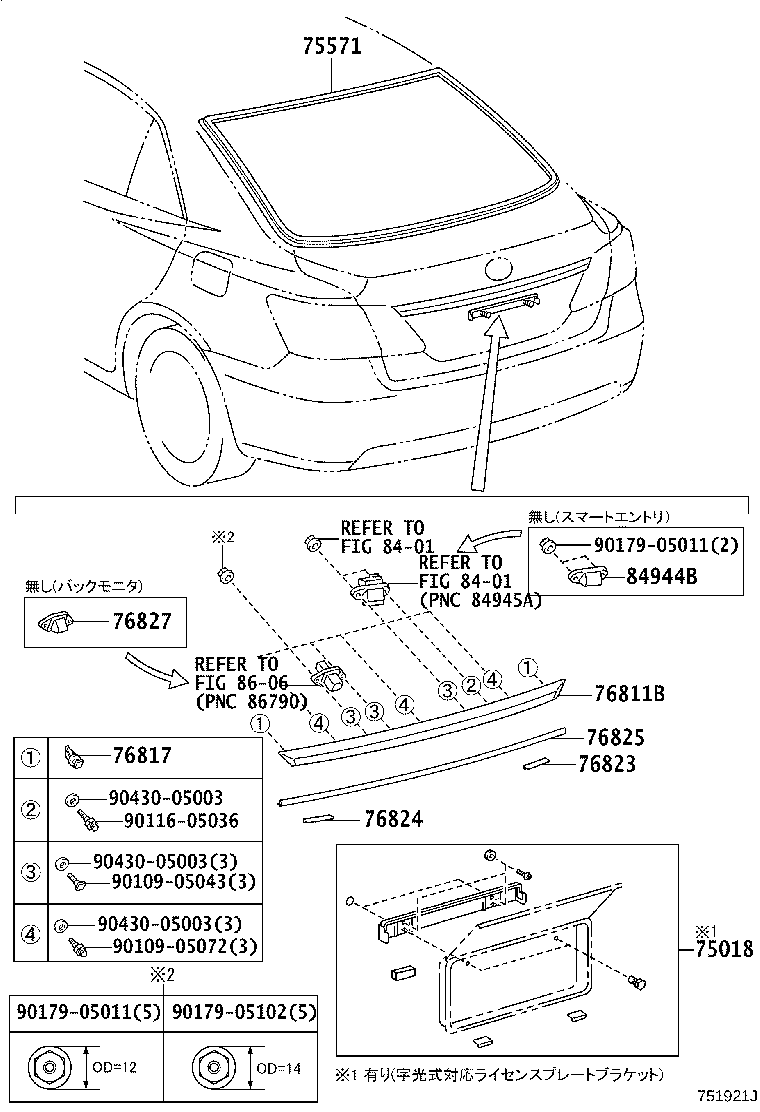

Figure 751920J 751920J 2007-05 → — Figure 751921J 751921J 2007-05 → —

Part groups

PNCDescription
75018 Frame Sub-assy, Rear License Plate
75571 Moulding, Back Window, Outside Upper
76811B Garnish, Luggage Compartment Door, Outside
76817 Clip, Back Door Outside Garnish
76823 Protector, Back Door Garnish Moulding, RH
76824 Protector, Back Door Garnish Moulding, LH
76825 Protector, Back Door Outside Garnish
76827 Retainer, Back Door Garnish, NO.2
84944B Cover, Luggage Electrical Key Switch
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
