Toyota Premio/Allion
2007-05 → 2021-03 · chassis NZT260,ZRT26# · catalogue 271160 · Japan
Supported model
Data version 2022-07
Mudguard & Spoiler

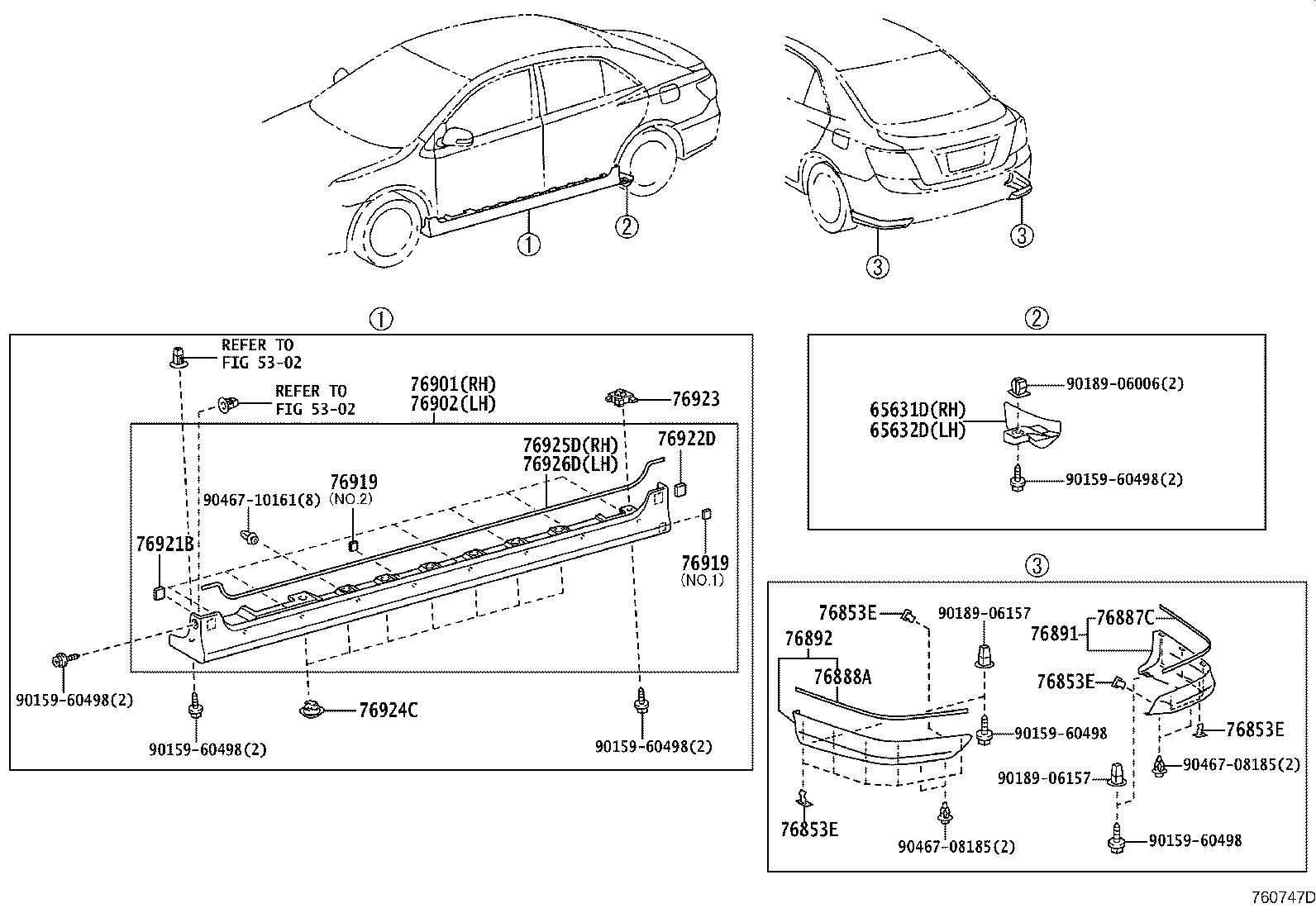

28 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 65631D | Plate, Rear Wheel House, Front RH |
| 65632D | Plate, Rear Wheel House, Front LH |
| 76621C | Mudguad, Front Fender, RH |
| 76622C | Mudguard, Front Fender, LH |
| 76625D | Mudguard, Quarter Panel, Rear RH |
| 76626D | Mudguard, Quarter Panel, Rear LH |
| 76851A | Cover, Front Spoiler, RH |
| 76852A | Cover, Front Spoiler, LH |
| 76853A | Retainer, Front Spoiler, Upper NO.1 |
| 76853E | Retainer, Rear Spoiler, NO.1 |
| 76877D | Protector, Front Spoiler Side, RH |
| 76878A | Protector, Front Spoiler Side, LH |
| 76887C | Protector, Rear Spoiler, NO.9 RH |
| 76888A | Protector, Rear Spoiler, NO.9 LH |
| 76891 | Spoiler, Rear NO.1 |
| 76892 | Spoiler, Rear NO.2 |
| 76901 | Mudguard Sub-assy, Side, RH |
| 76902 | Mudguard Sub-assy, Side, LH |
| 76911B | Mudguard, Side, RH |
| 76912D | Mudguard, Side, LH |
| 76919 | Pad, Side Mudguard |
| 76921B | Protector, Side Mudguard, NO.1 |
| 76922D | Protector, Side Mudguard, NO.2 |
| 76923 | Retainer, Side Mudguard |
| 76924A | Retainer, Side Mudguard, NO.2 |
| 76924C | Retainer, Side Mudguard, NO.2 |
| 76925D | Protector, Side Mudguard, RH |
| 76926D | Protector, Side Mudguard, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
