Toyota Premio/Allion

2007-05 → 2021-03 · chassis NZT260,ZRT26# · catalogue 271160 · Japan

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

35 part groups · 6 illustrations

Illustrations

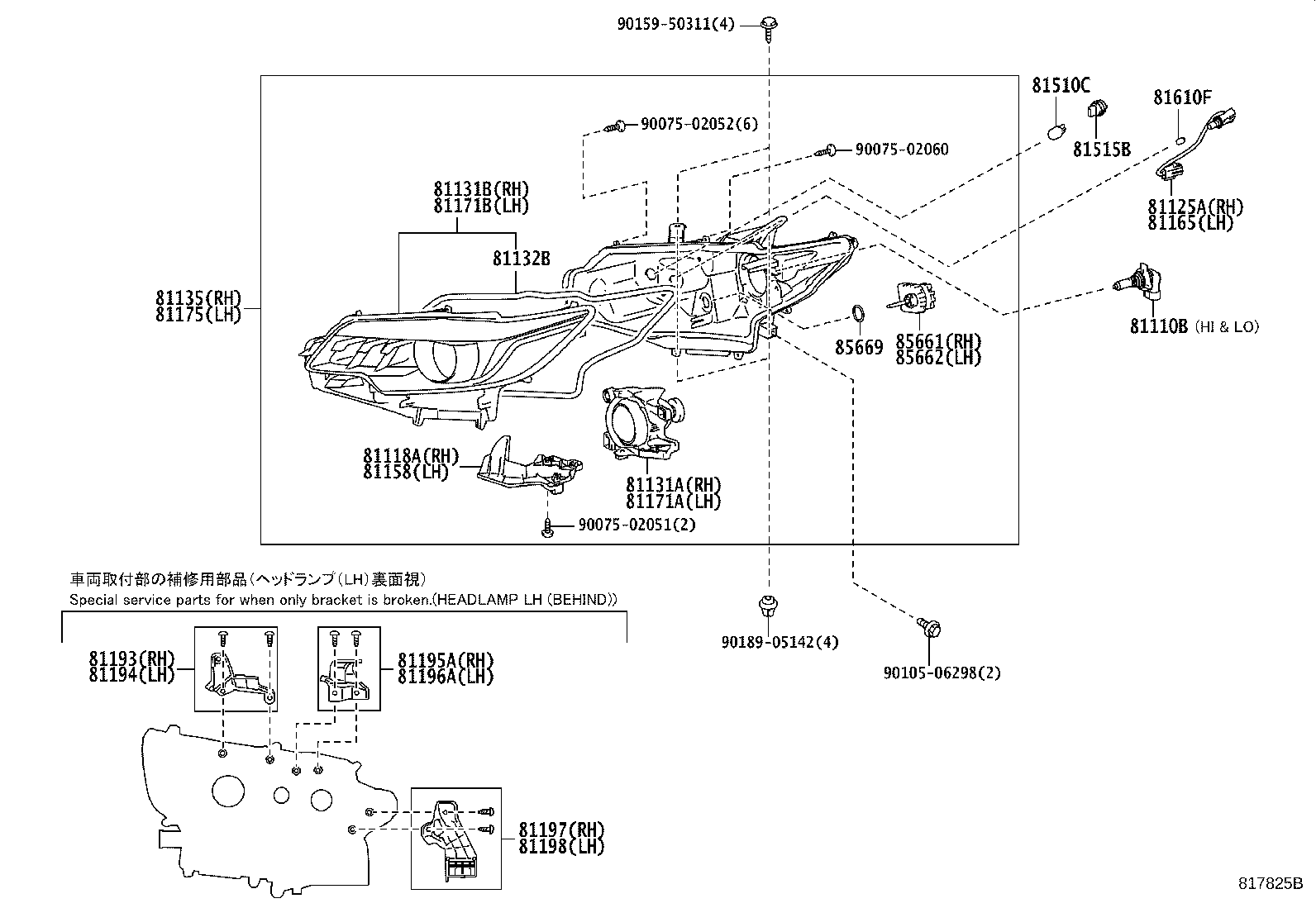

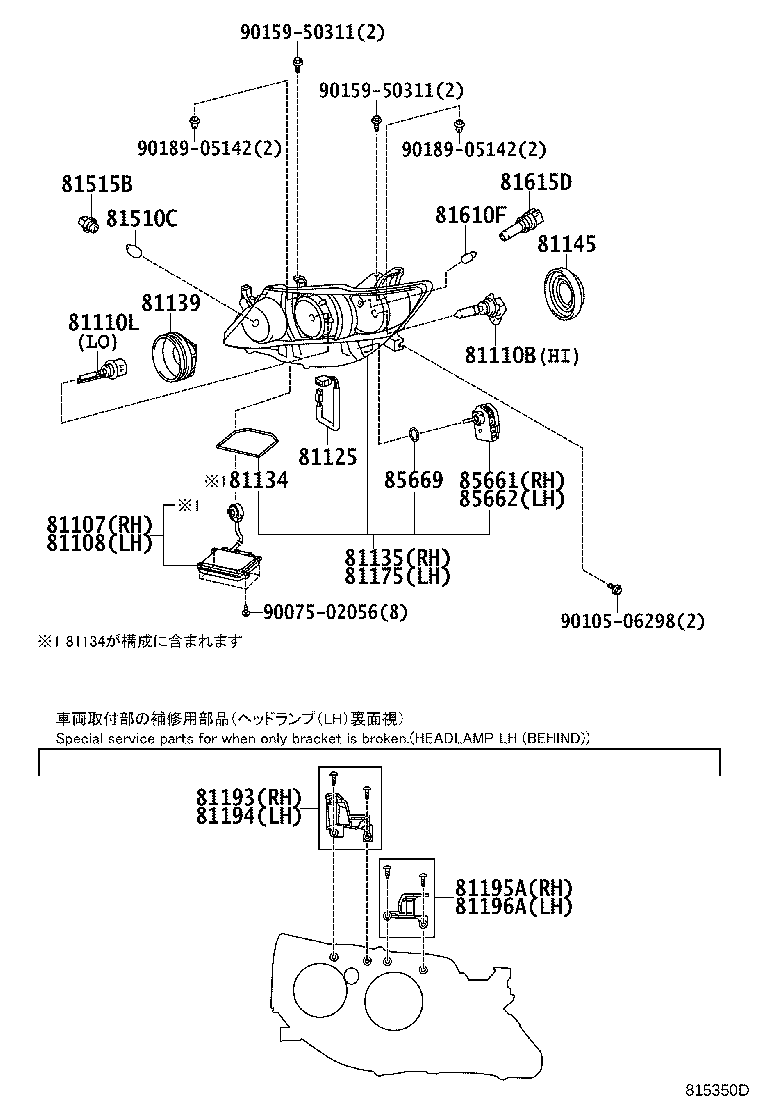

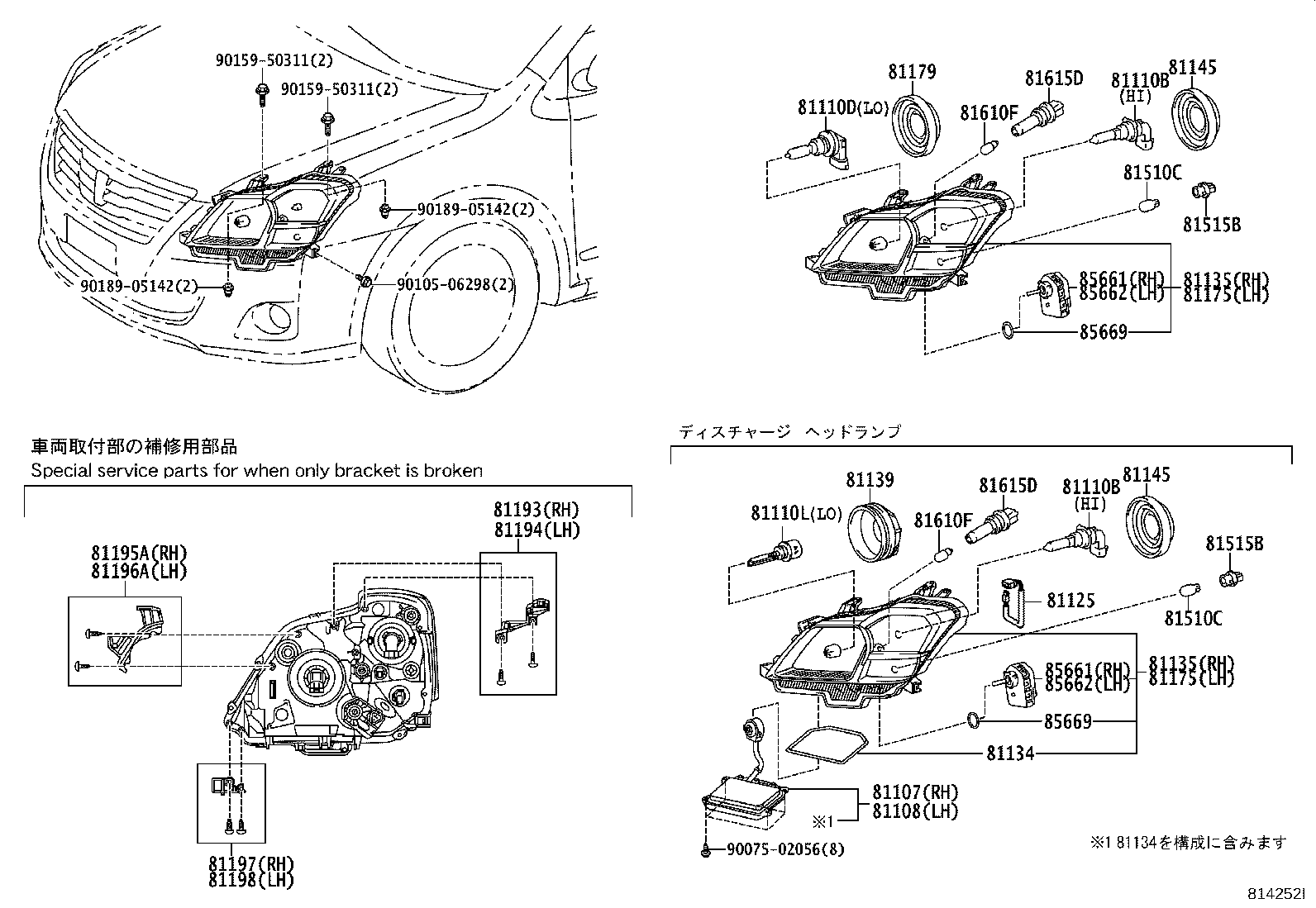

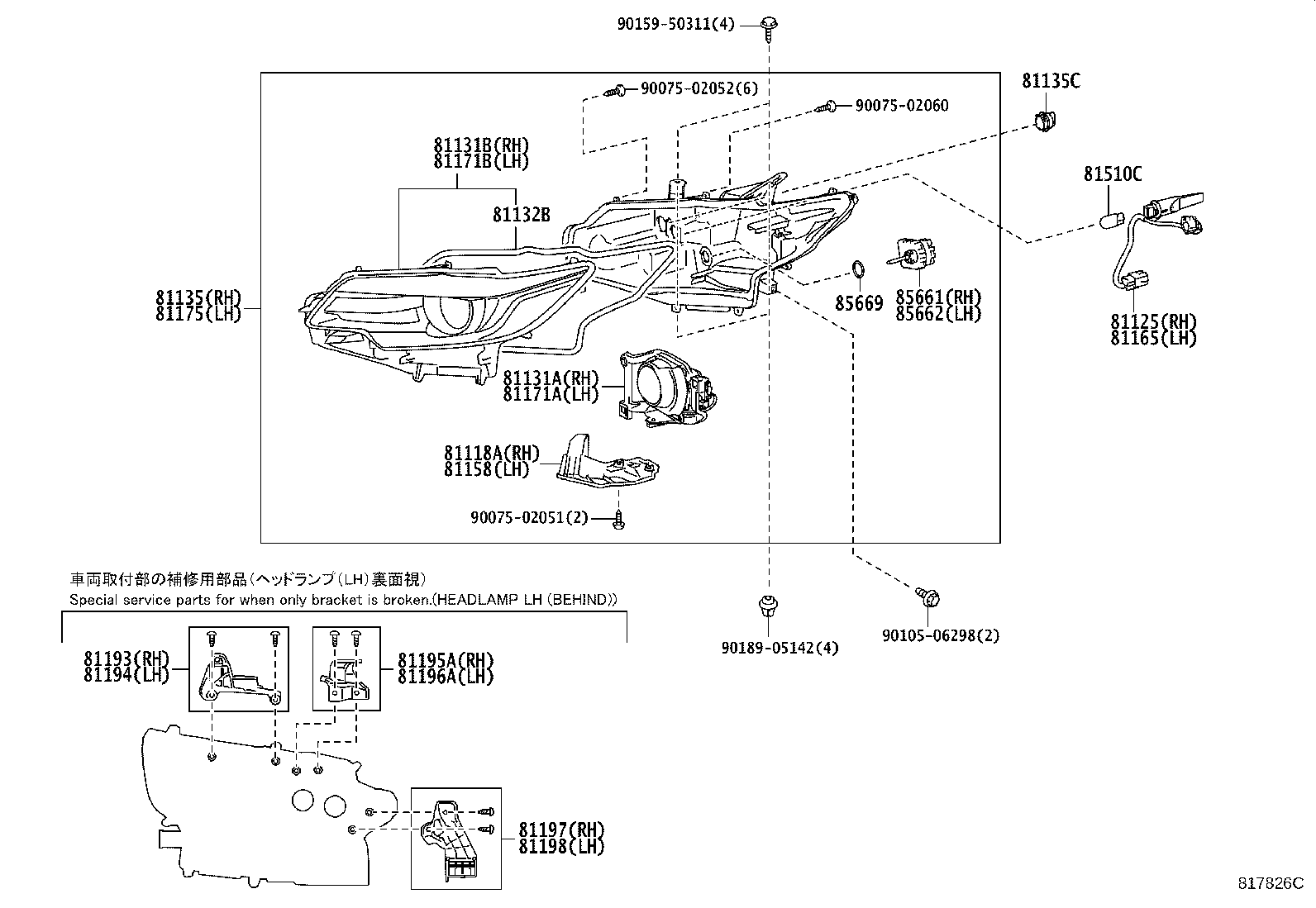

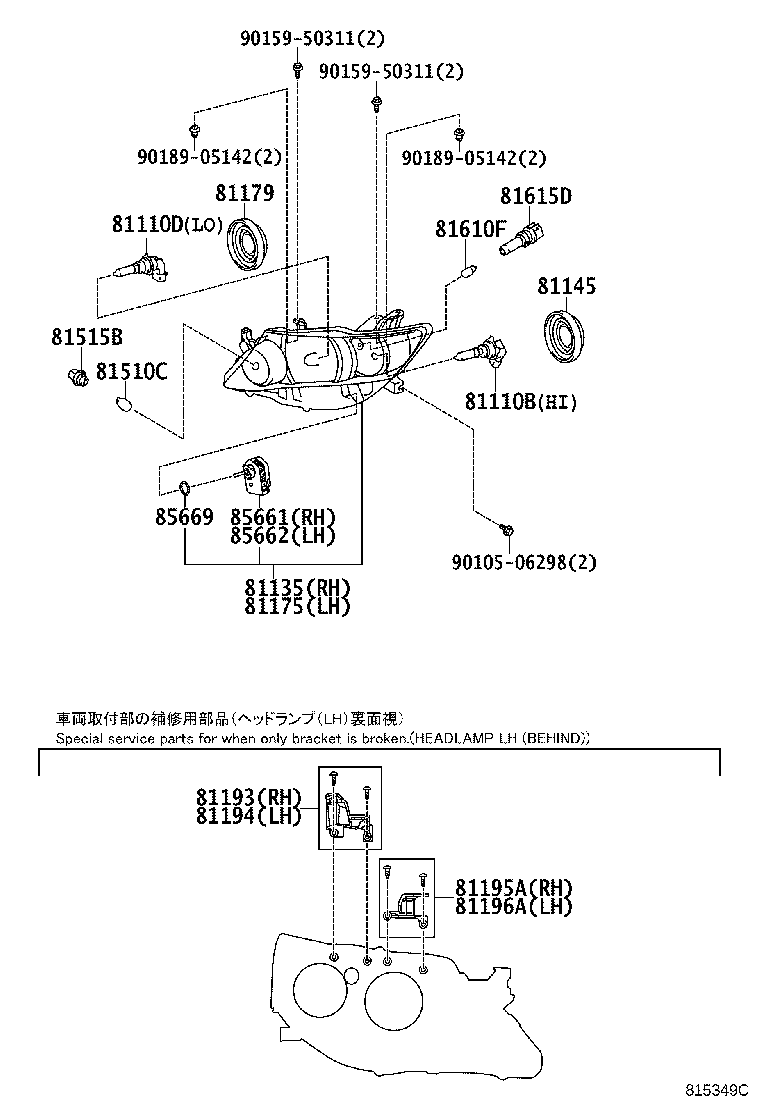

Figure 814251H 814251H 2007-05 → 2010-04 Figure 814252I 814252I 2007-05 → 2016-06 Figure 815349C 815349C 2010-04 → 2016-06 Figure 815350D 815350D 2010-04 → 2016-06 Figure 817825B 817825B 2016-06 → — Figure 817826C 817826C 2016-06 → —

Part groups

PNCDescription
81107 Computer Sub-assy, Headlamp Light Control, RH
81108 Computer Sub-assy, Headlamp Light Control, LH
81110B Bulb(FOR HEADLAMP, NO.1)
81110D Bulb(FOR HEADLAMP, NO.2)
81110L Bulb, Discharge Headlamp
81118A Bracket, Headlamp, RH
81125 Cord, Headlamp
81125A Cord, Headlamp, RH
81131A Unit, Headlamp, RH
81131B Head Lamp Lens, RH
81132B Gasket, Headlamp Lens
81134 Gasket, Headlamp
81135 Unit Assy, Headlamp, RH
81135C Cover, Headlamp Back, NO.1
81139 Cover, Headlamp Socket
81145 Cover, Headlamp, NO.2
81158 Bracket, Headlamp, LH
81165 Cord, Headlamp, LH
81171A Unit, Headlamp, LH
81171B Head Lamp Lens, LH
81175 Unit Assy, Headlamp, LH
81179 Cover, Headlamp Socket
81193 Retainer, Headlamp Protector, Upper RH
81194 Retainer, Headlamp Protector, Upper LH
81195A Retainer, Headlamp Protector, Lower RH
81196A Retainer, Headlamp Protector, Lower LH
81197 Bracket, Headlamp, Lower RH
81198 Bracket, Headlamp, Lwr LH
81510C Bulb (FOR FRONT TURN SIGNAL LAMP)
81515B Socket, Front Turn Signal Lamp
81610F Bulb(FOR CLEARANCE LAMP)
81615D Socket, Clearance Lamp
85661 Motor, Headlamp Leveling, RH
85662 Motor, Headlamp Leveling, LH
85669 Packing, Headlamp Leveling Motor Base
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
