Toyota Premio/Allion
2007-05 → 2021-03 · chassis NZT260,ZRT26# · catalogue 271160 · Japan
Supported model
Data version 2022-07

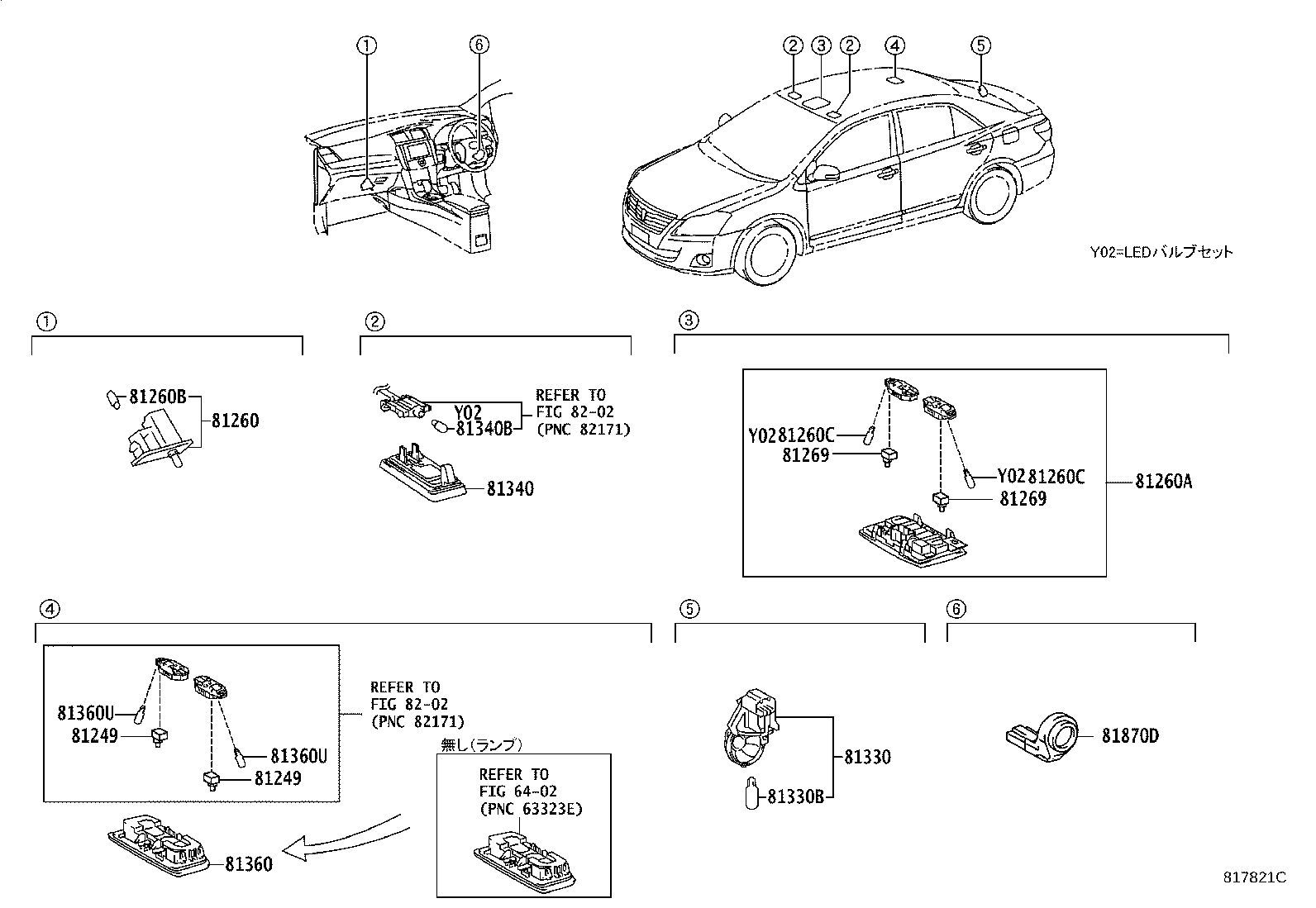

Interior Lamp
15 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81080J | Lamp Assy, Interior Illumination, NO.1 |
| 81249 | Switch, Room Lamp |
| 81260 | Lamp Assy, Glove Box |
| 81260A | Lamp Assy, Map |
| 81260B | Bulb(FOR GLOVE BOX) |
| 81260C | Bulb(FOR MAP LAMP) |
| 81269 | Switch, Map Lamp |
| 81330 | Lamp Assy, Luggage Compartment, NO.1 |
| 81330B | Bulb, Luggage Compartment Lamp |
| 81340 | Lamp Assy, Vanity |
| 81340B | Bulb (FOR VANITY LAMP) |
| 81360 | Lamp Assy, Step OR Spot |
| 81360U | Bulb, Spot Lamp |
| 81870D | Lamp Assy, Key Cylinder |
| 81870E | Bulb, Key Cylinder Lamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
