Toyota Premio/Allion

2007-05 → 2021-03 · chassis NZT260,ZRT26# · catalogue 271160 · Japan

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Fuel Injection System

8 part groups · 5 illustrations

Illustrations

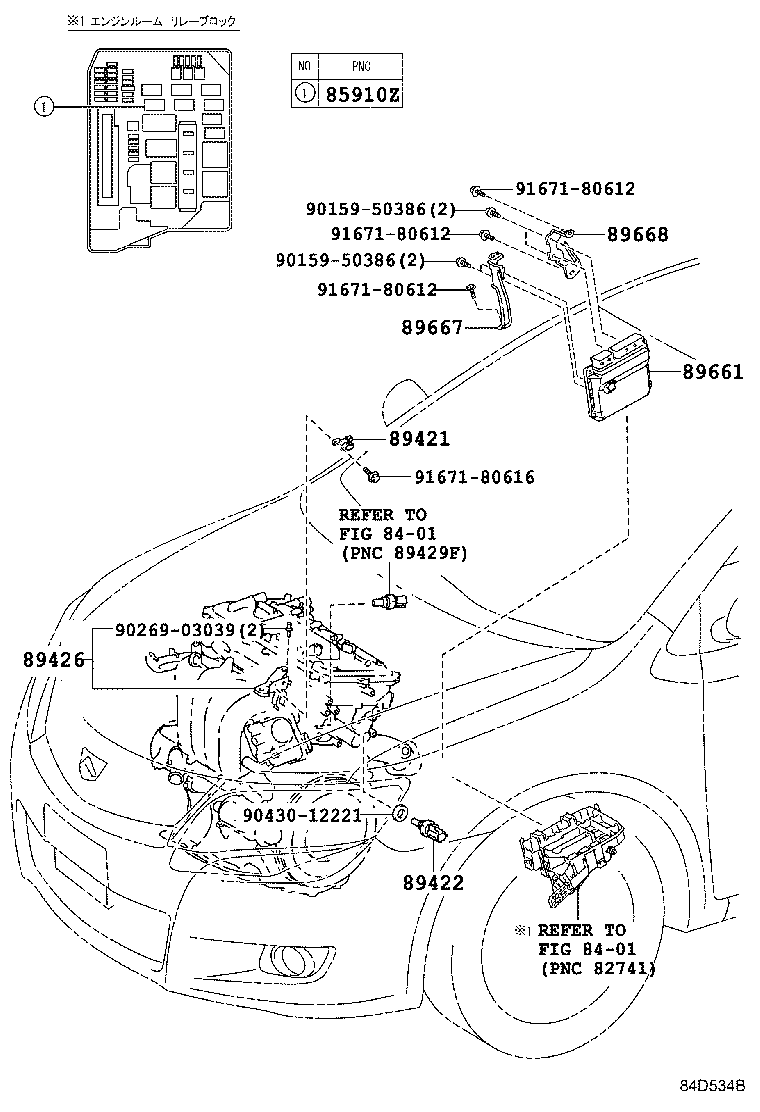

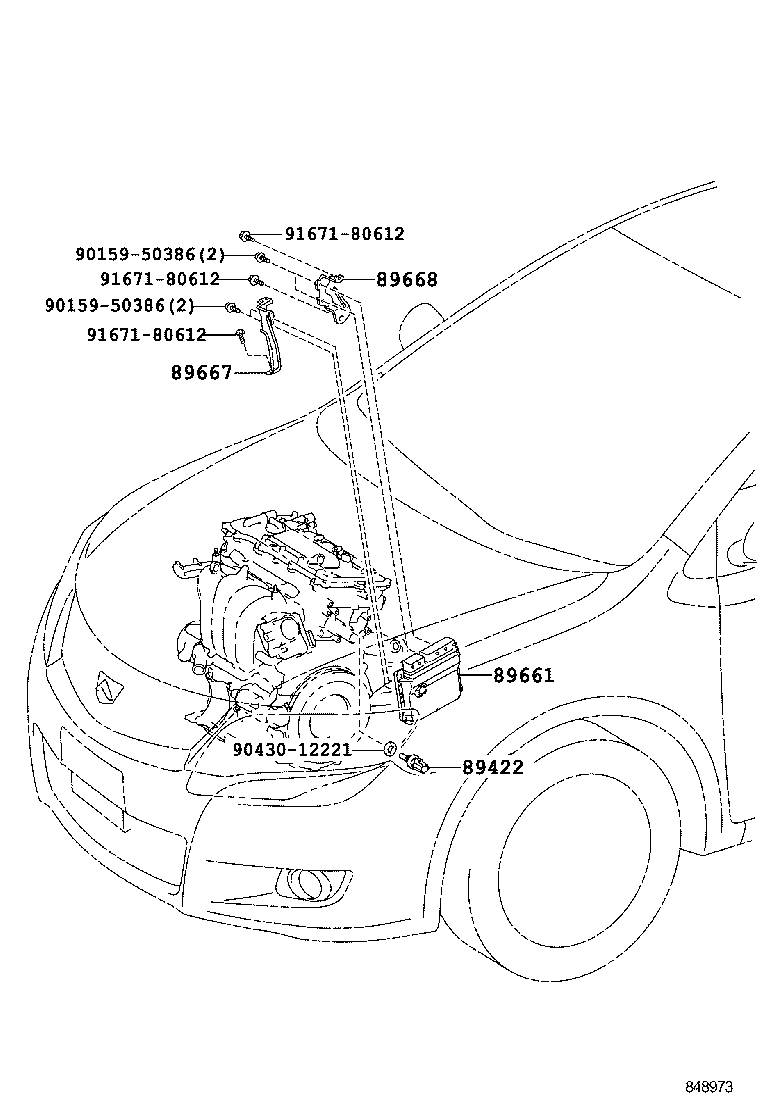

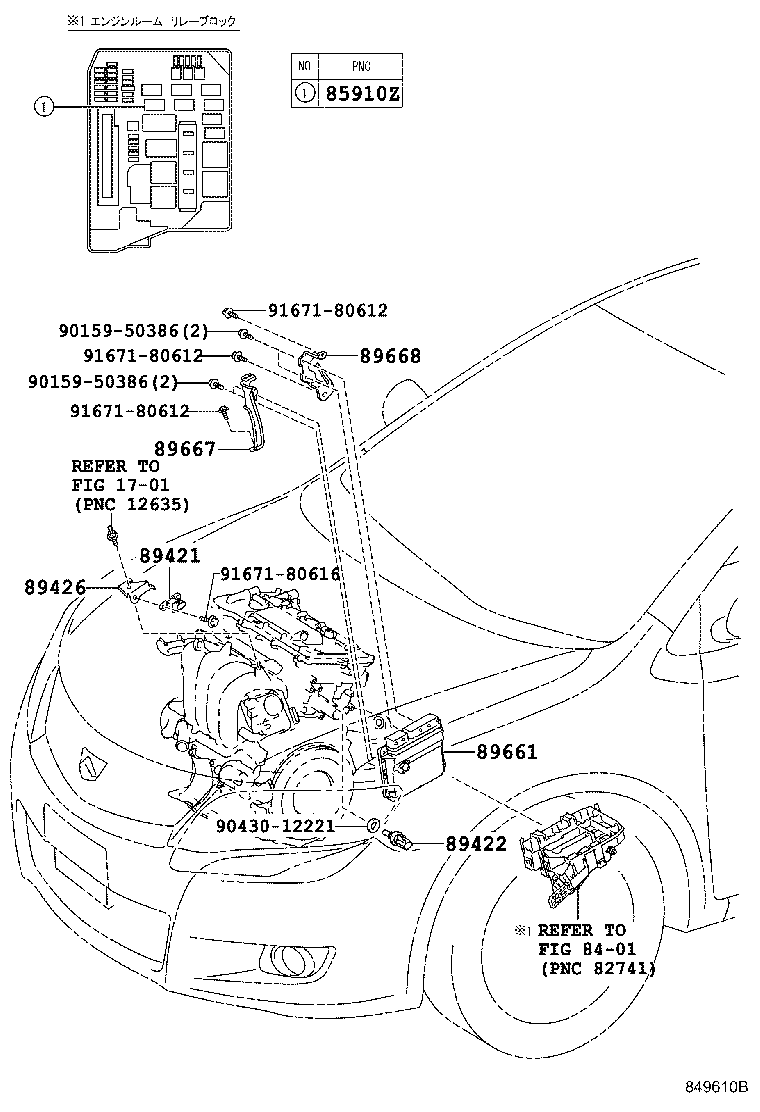

Figure 848972C 848972C 2007-05 → — Figure 848973 848973 2007-05 → 2010-04 Figure 849610B 849610B 2007-12 → 2010-04 Figure 849610B 849610B 2010-04 → 2012-12 Figure 84D534B 84D534B 2012-12 → —

Part groups

PNCDescription
85910Z Relay, Injection (FOR EFI)
89412A Sensor, E.G.R Gas Temperature
89421 Sensor Assy, Vacuum (FOR E.F.I.)
89422 Sensor, Water Temperature (FOR E.F.I.)
89426 Bracket, Vacuum Sensor
89661 Computer, Engine Control
89667 Bracket, Engine Control Computer
89668 Bracket, Engine Control Computer, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
