Toyota Premio/Allion

2007-05 → 2021-03 · chassis NZT260,ZRT26# · catalogue 271160 · Japan

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Overdrive & Electronic Controlled Transmission

5 part groups · 4 illustrations

Illustrations

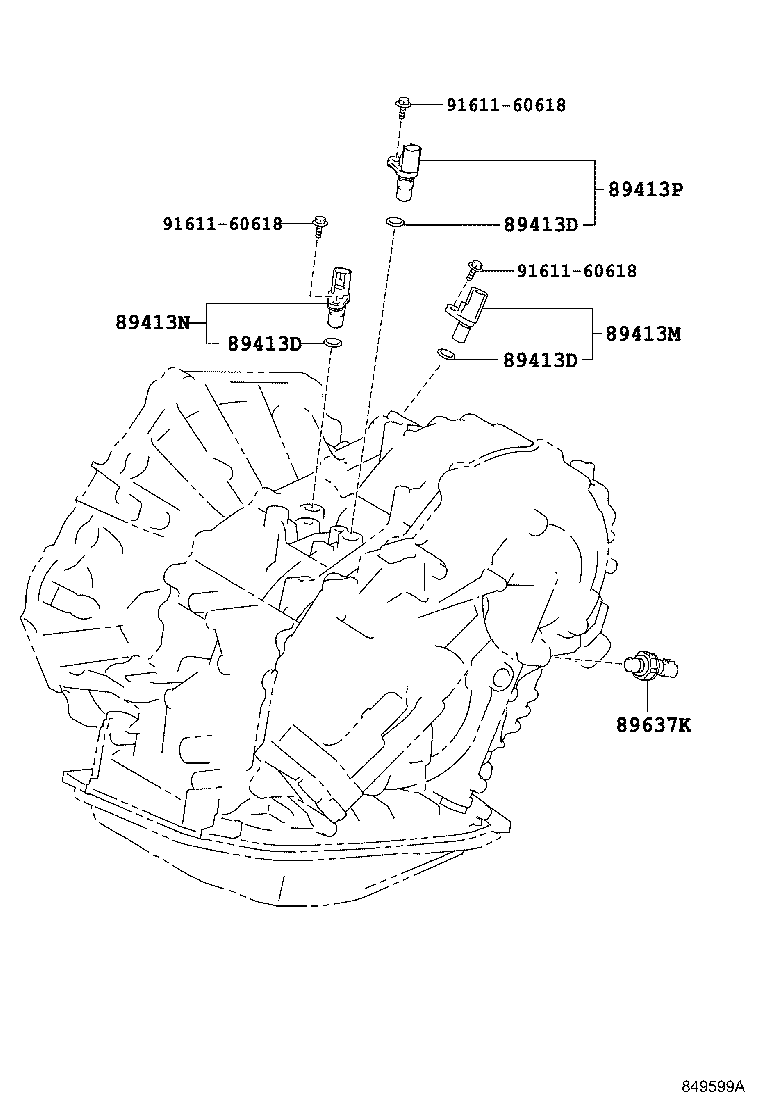

Figure 848877C 848877C 2007-05 → 2012-12 Figure 848877C 848877C 2007-05 → — Figure 849599A 849599A 2007-12 → — Figure 84D492C 84D492C 2012-12 → —

Part groups

PNCDescription
89413D Ring, O(FOR TRANSMISSION REVOLUTION SENSOR)
89413M Sensor, Transmission Revolution, (NOUT)
89413N Sensor, Transmission Revolution, (NT)
89413P Sensor, Transmission Revolution, (NIN)
89637K Sensor, Oil Pressure
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
