Toyota Premio/Allion

2007-05 → 2021-03 · chassis NZT260,ZRT26# · catalogue 271160 · Japan

Supported model Data version 2022-07

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

11 part groups · 4 illustrations

Illustrations

Figure 84J315

84J315 2007-05 → 2010-04

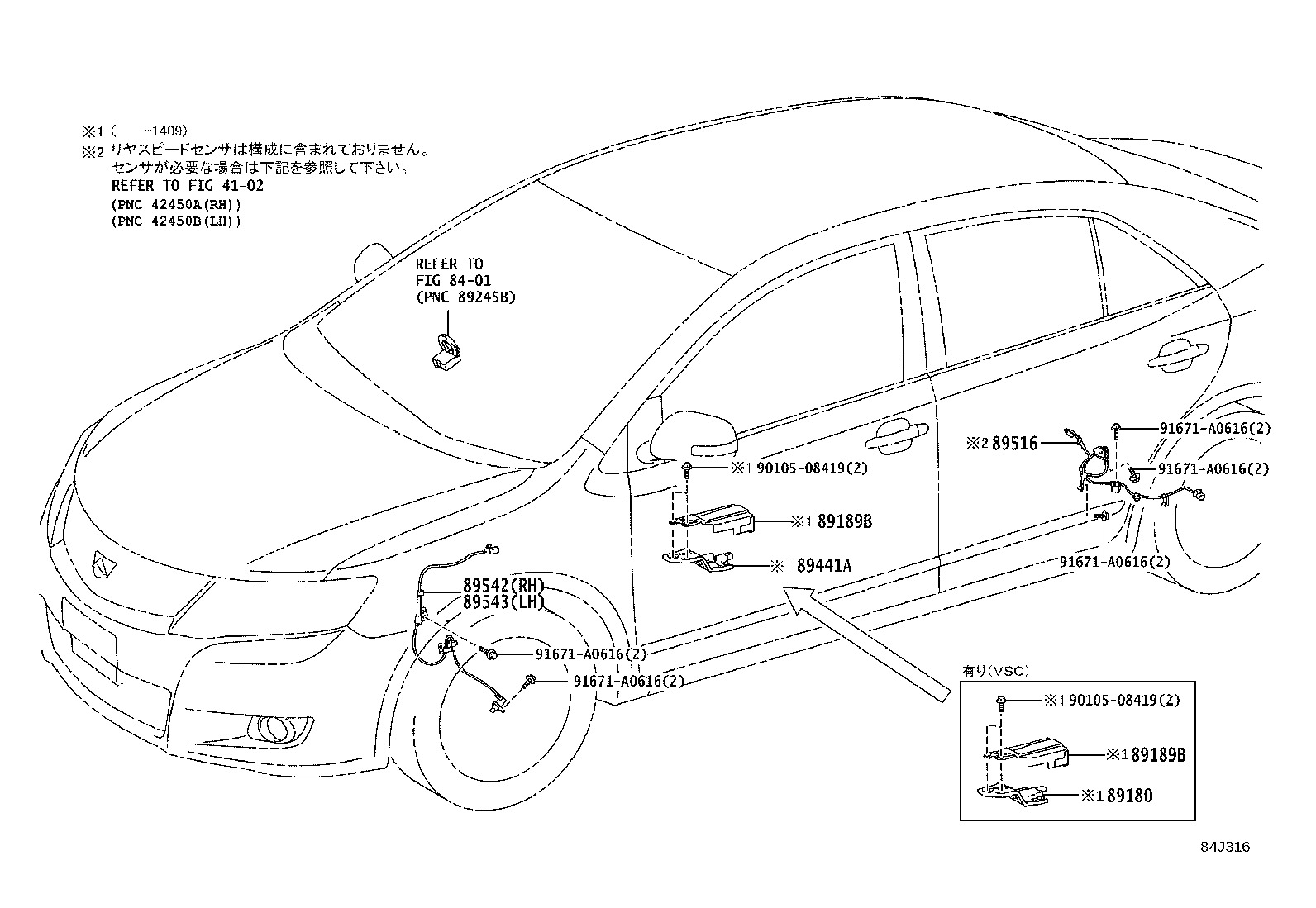

Figure 84J316

84J316 2010-04 → 2016-06

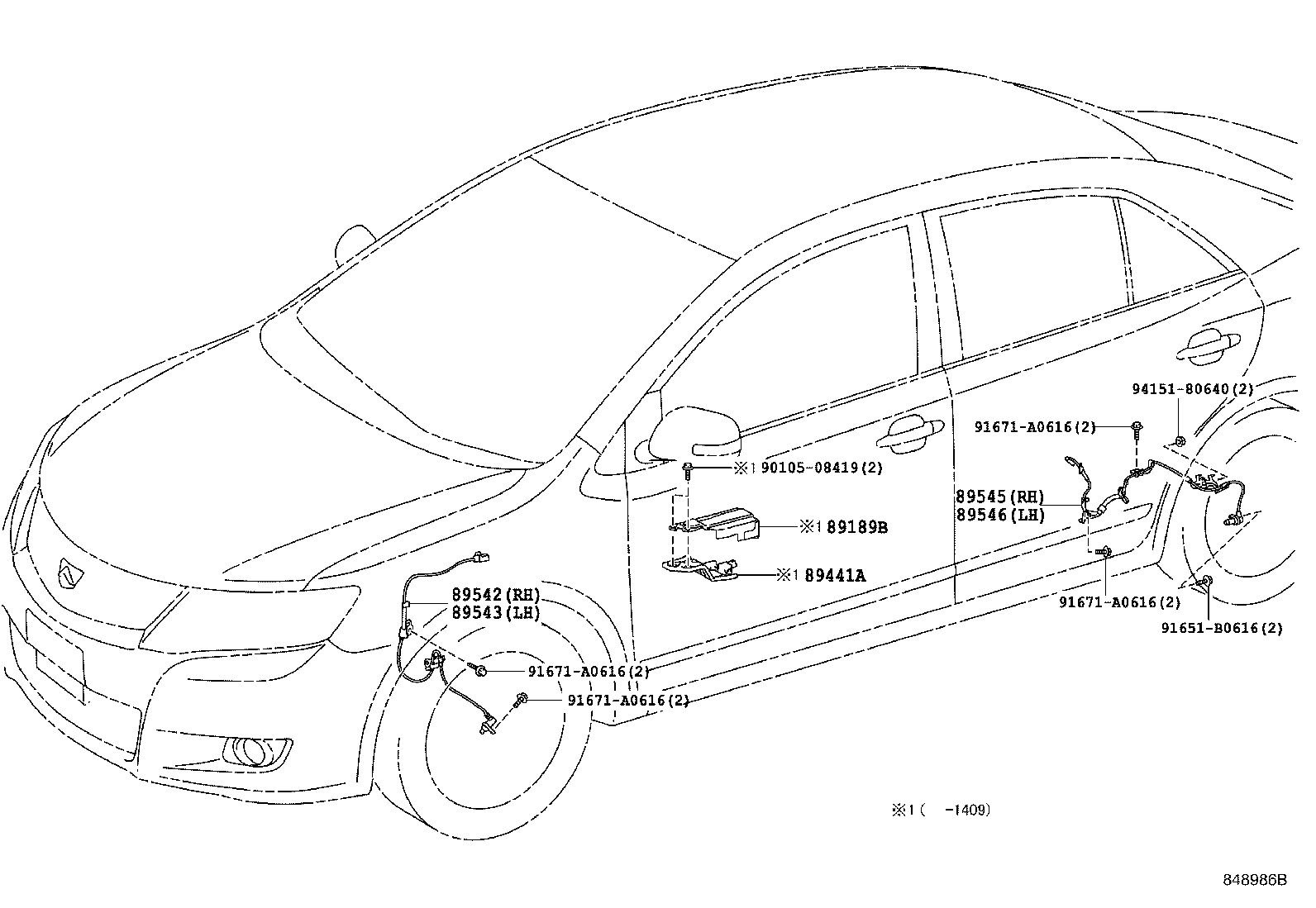

Figure 848986B

848986B 2007-05 → 2016-06

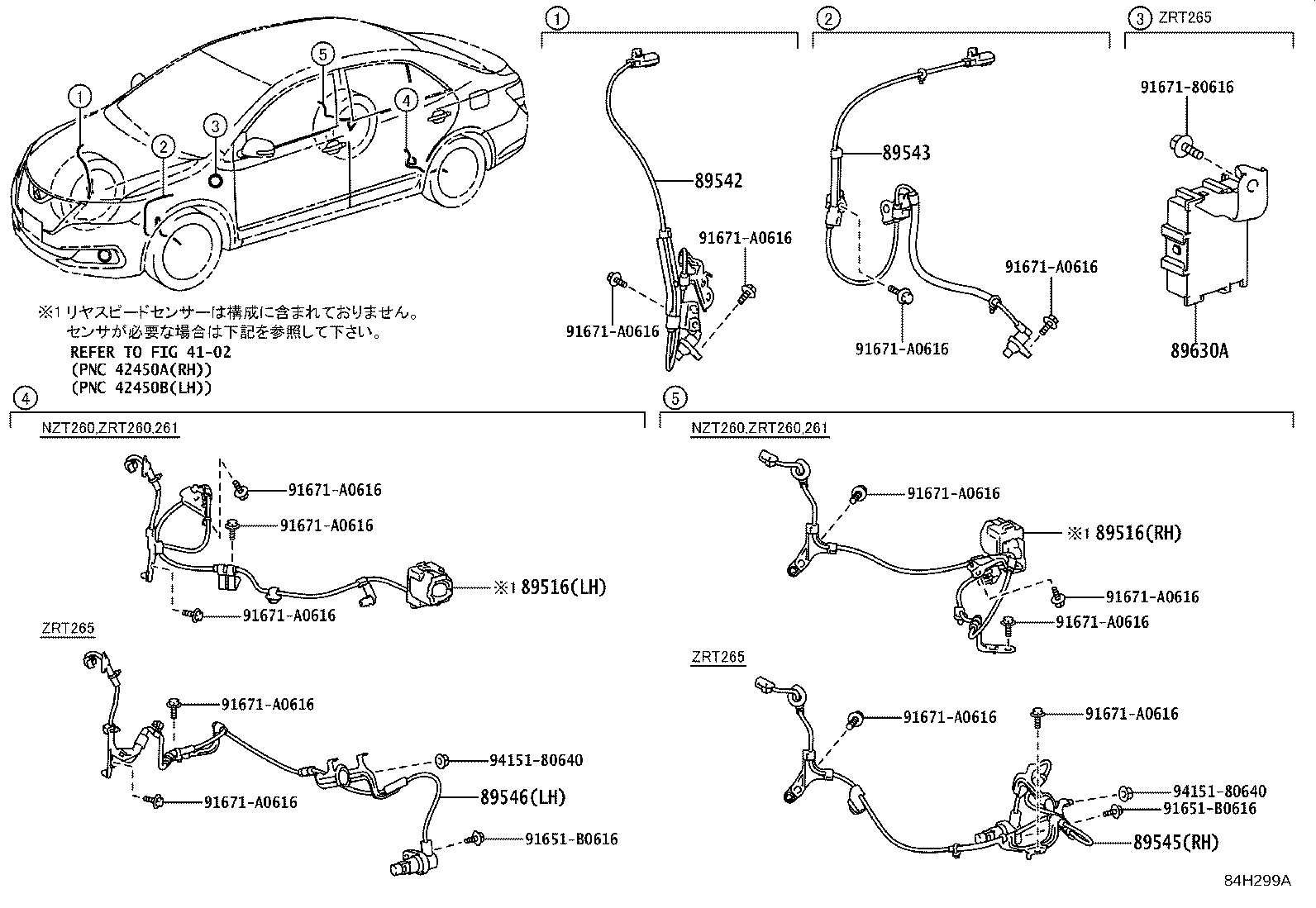

Figure 84H299A

84H299A 2016-06 → —

Part groups

PNC	Description
86652A	Buzzer Assy, Skid Control
89180	Sensor Assy, Yawrate
89189B	Bracket, Yawrate Sensor
89441A	Sensor, Deceleration
89516	Wire, Skid Control Sensor
89542	Sensor, Speed, Front RH
89543	Sensor, Speed, Front LH
89544	Sensor, Skid Control
89545	Sensor, Speed, Rear RH
89546	Sensor, Speed, Rear LH
89630A	Computer Assy, 4WD

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
