Factory parts data · Europe

Toyota Premio/Allion

2007-05 → 2021-03 · chassis NZT260,ZRT26# · catalogue 271160 · Japan

Supported model Data version 2022-07

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

5 part groups · 3 illustrations

Illustrations

863220 2007-05 → 2016-06

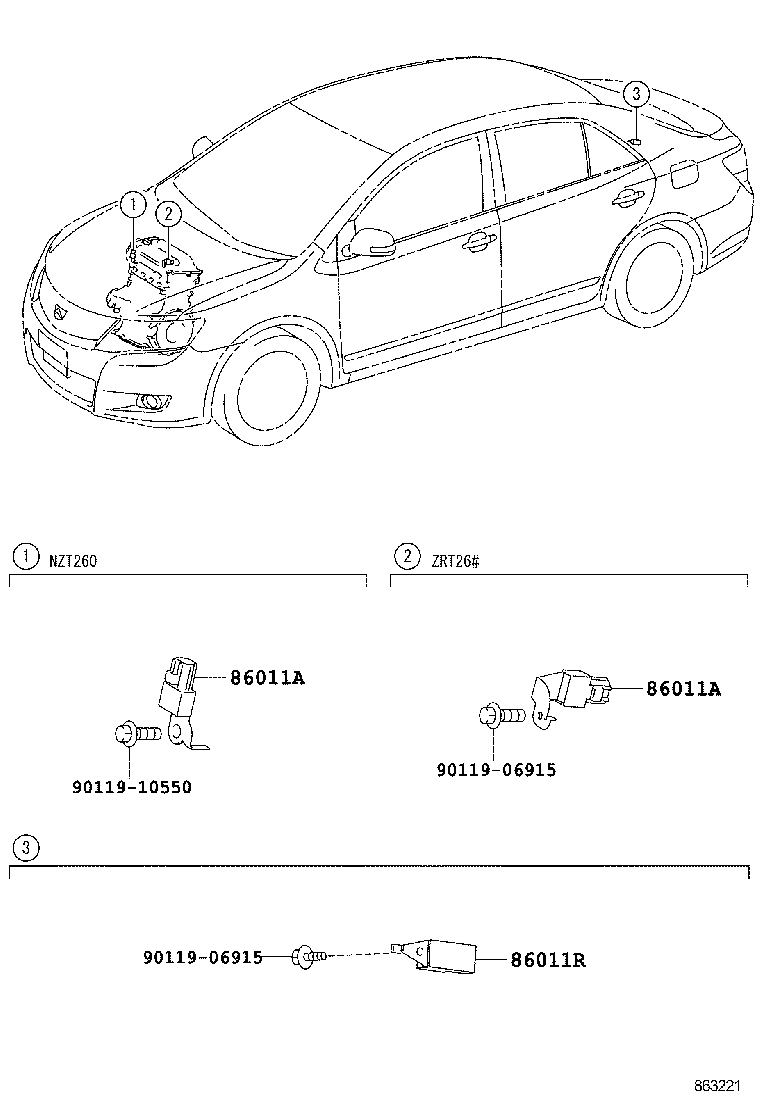

863221 2007-05 → 2016-06

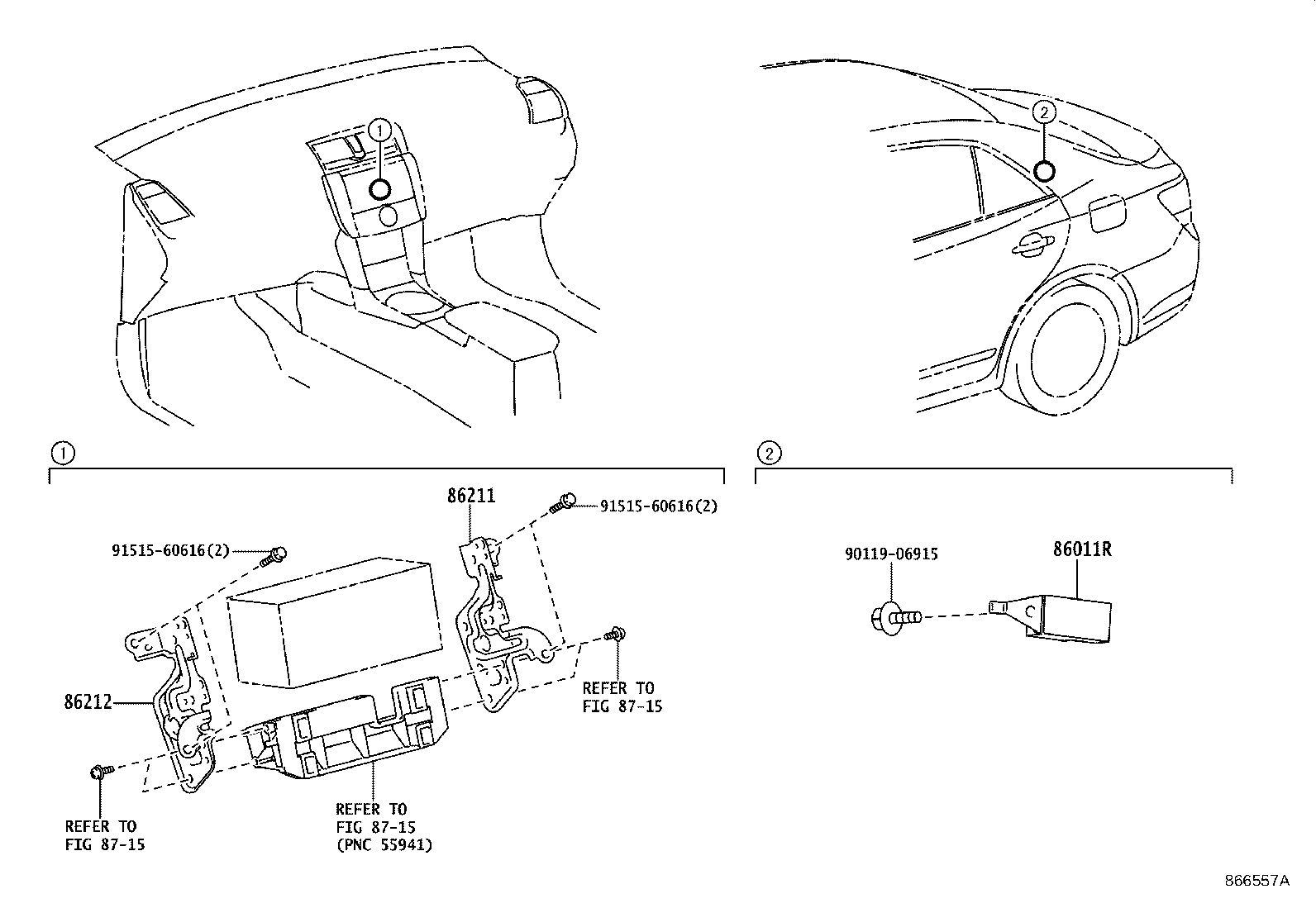

Figure 866557A

866557A 2016-06 → —

Part groups

PNC	Description
86011A	Condenser, Radio Setting
86011R	Condenser, Radio Setting
86120	Receiver Assy, Radio
86211	Bracket, Radio, NO.1
86212	Bracket, Radio, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
