Toyota Premio/Allion
2007-05 → 2021-03 · chassis NZT260,ZRT26# · catalogue 271160 · Japan
Supported model
Data version 2022-07
Heating & Air Conditioning - Control & Air Duct
25 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|

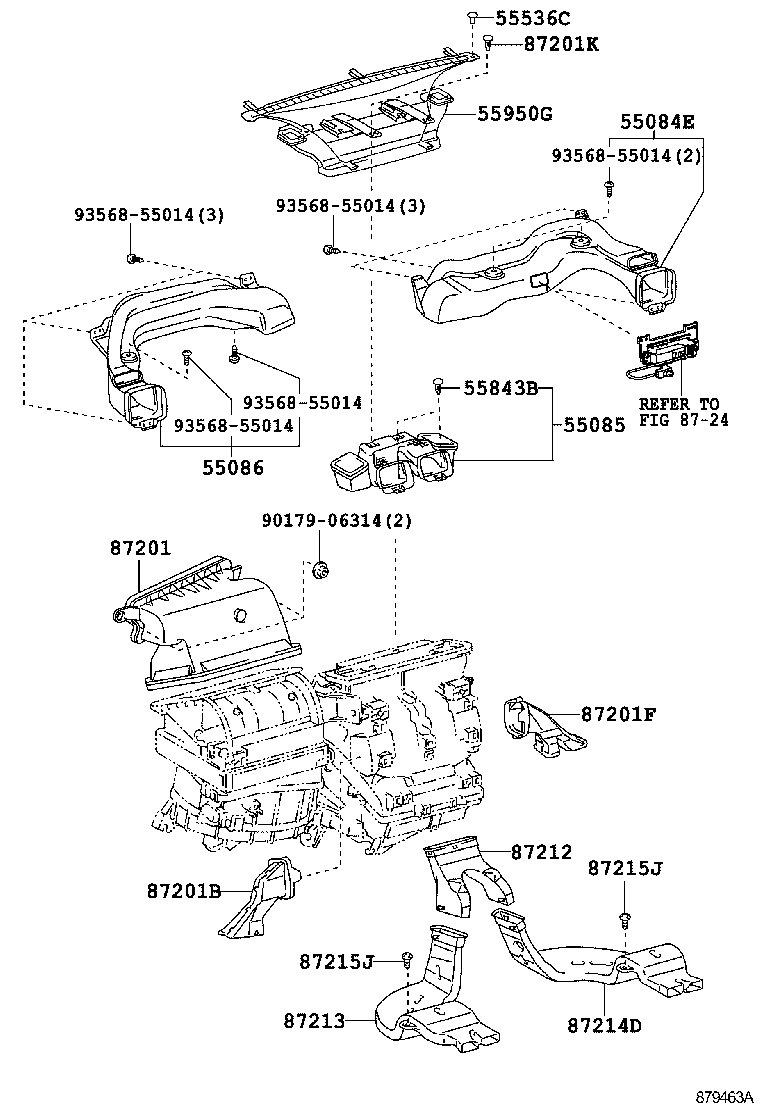

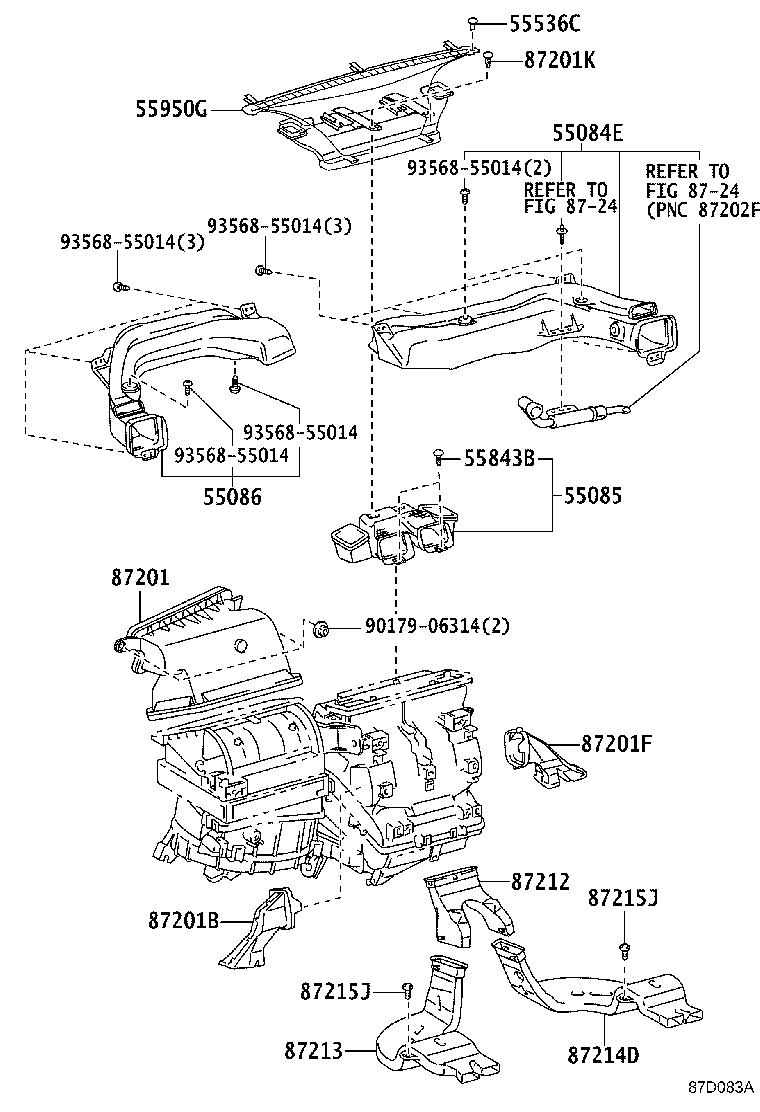

| 55084E | Duct Sub-assy, Heater TO Register, NO.1 |
| 55085 | Duct Sub-assy, Heater TO Register, NO.2 |
| 55086 | Duct Sub-assy, Heater TO Register, NO.3 |
| 55536C | Cover, Light Control Switch Hole |
| 55843B | Clip, Heater TO Register Duct |

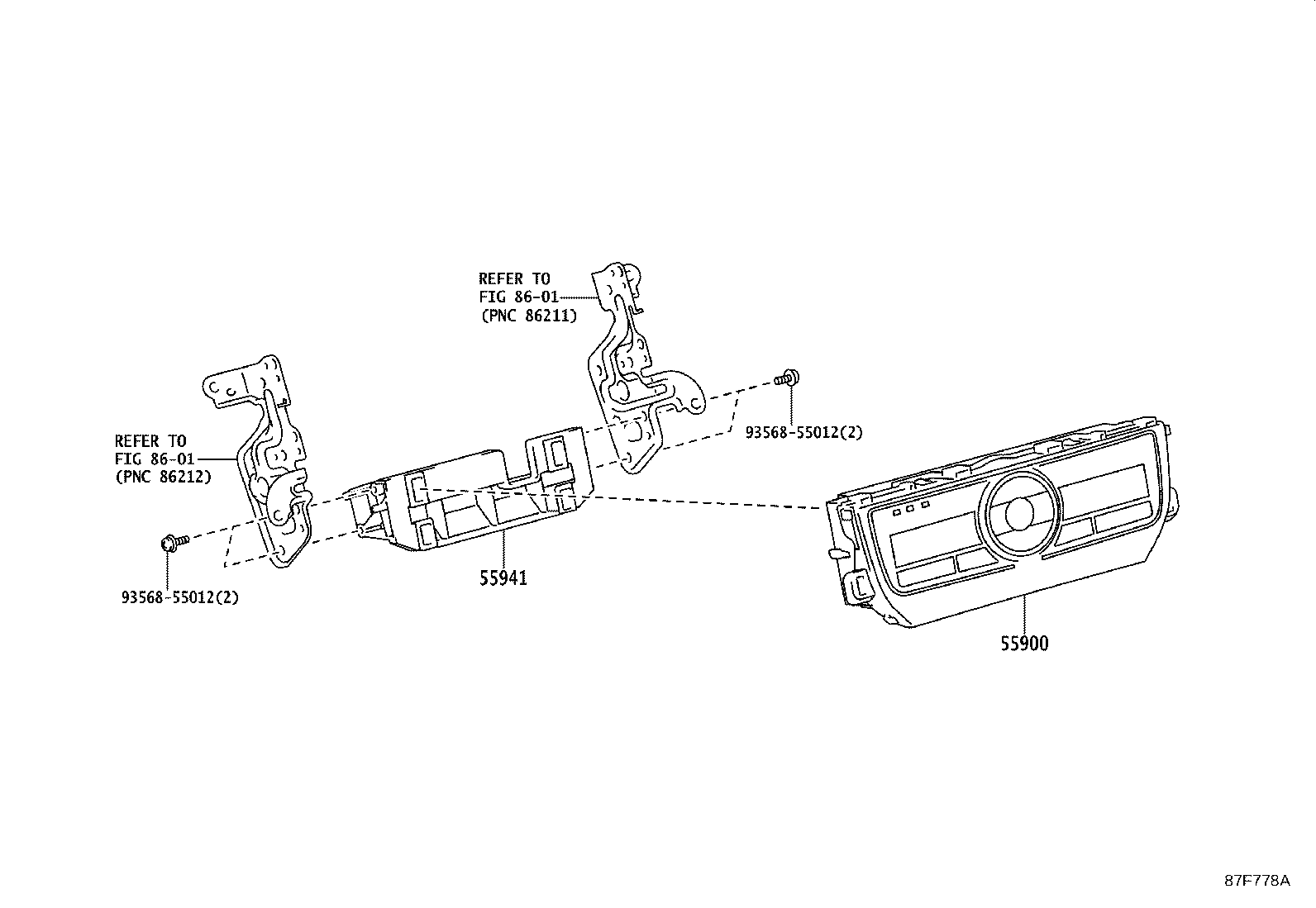

| 55900 | Control Assy, Air Conditioner |
| 55902C | Panel Sub-assy, Air Conditioner |
| 55904A | Housing Sub-assy, Heater Control |
| 55920 | Harness Assy, Heater Control Sub Wire |
| 55921A | Retainer, Heater Control |
| 55941 | Bracket, Heater Control |
| 55942 | Guard, Heater Control |
| 55950G | Nozzle Assy, Defroster |
| 86442A | Board, Heater Control Switch |
| 87201 | Duct Sub-assy, Air, NO.1 |
| 87201B | Duct Sub-assy, Air, NO.2 |
| 87201F | Duct Sub-assy, Air, NO.3 |
| 87201K | Clip (FOR AIR DUCT) |
| 87212 | Duct, Air, Rear NO.1 |
| 87213 | Duct, Air, Rear NO.2 |
| 87214D | Duct, Air, Rear NO.3 |
| 87215J | Clip (FOR AIR REAR DUCT) |

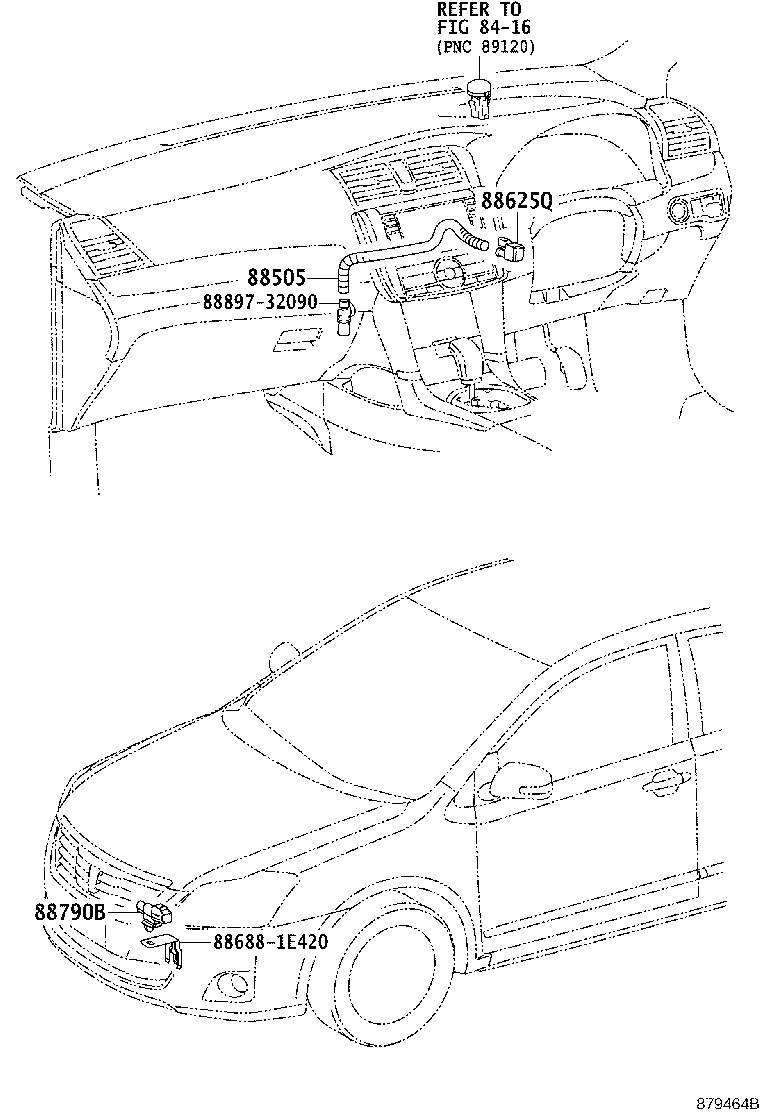

| 88505 | Duct Sub-assy,Air Conditioner |
| 88625Q | Thermistor, Cooler (ROOM TEMP. SENSOR) |
| 88790B | Thermistor Assy |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
