Heating & Air Conditioning - Water Piping

5 part groups · 3 illustrations

Illustrations

Figure 879427E

879427E 2007-05 → —

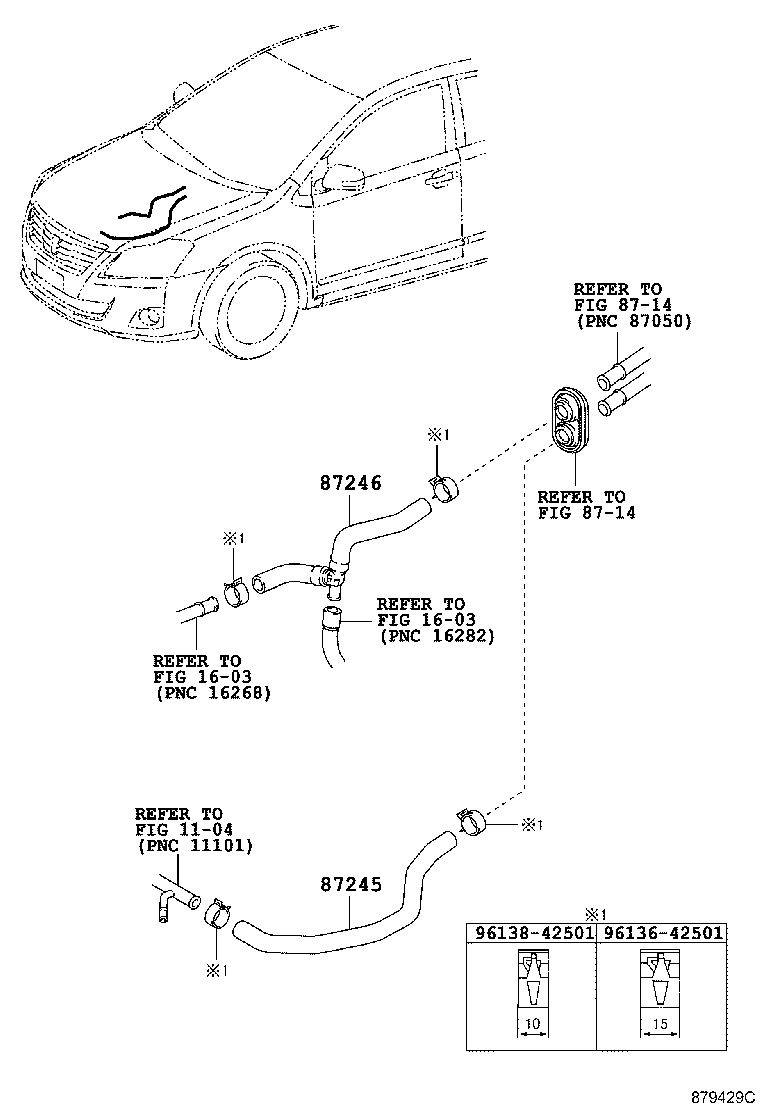

Figure 879429C

879429C 2007-05 → —

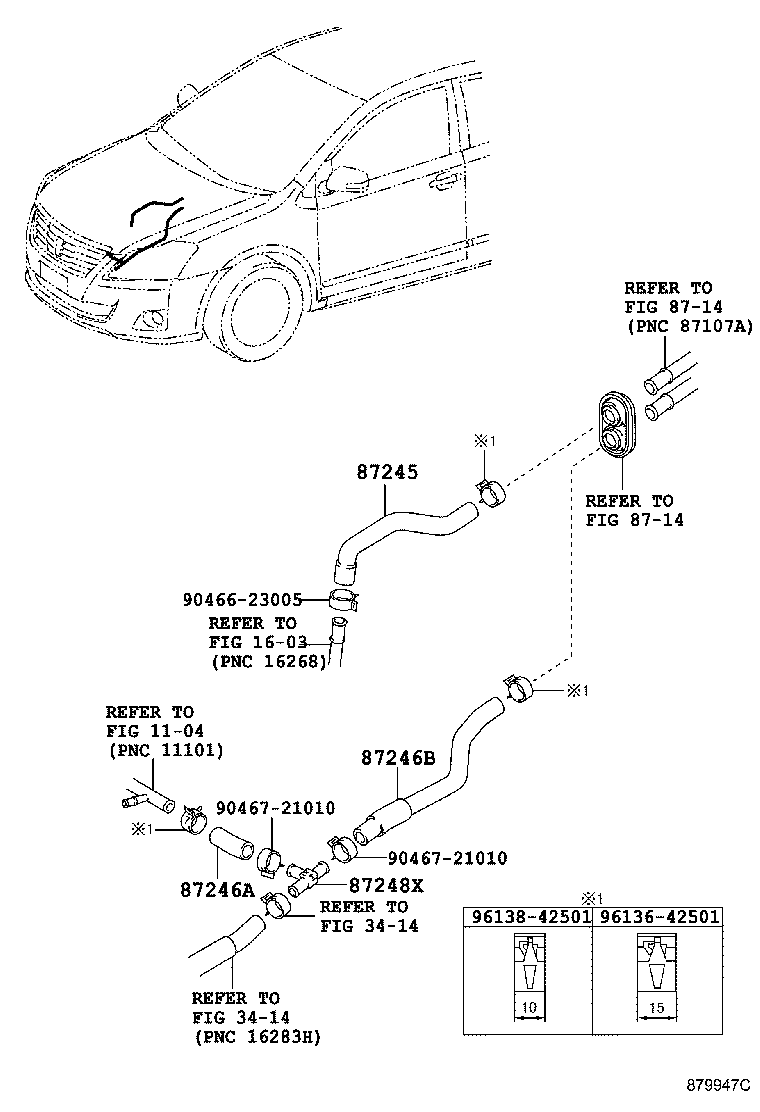

Figure 879947C

879947C 2007-12 → —

Part groups

PNC	Description
87245	Hose, Heater Water, Inlet
87246	Hose, Heater Water, Outlet
87246A	Hose, Heater Water, Outlet A
87246B	Hose, Heater Water, Outlet B
87248X	Pipe, Heater Water

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
