Toyota Premio/Allion
2007-05 → 2021-03 · chassis NZT260,ZRT26# · catalogue 271160 · Japan
Supported model
Data version 2022-07

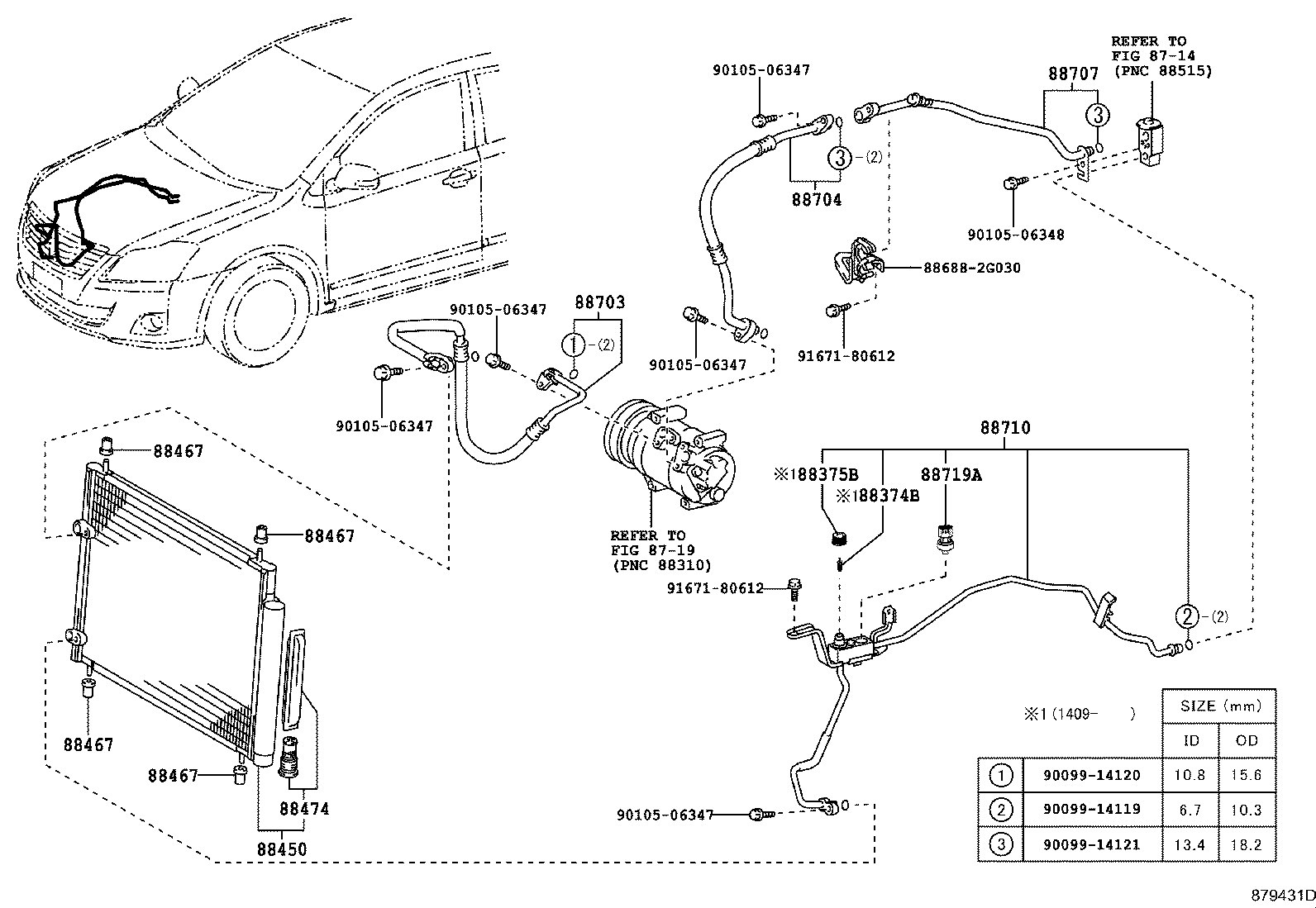

Heating & Air Conditioning - Cooler Piping
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 88374B | Valve, Service, NO.1 |
| 88375B | Cap, Service Valve, NO.1 |
| 88450 | Condenser Assy, W/Receiver |
| 88467 | Cushion, Cooler Condenser, NO.1 |
| 88474 | Dryer, Cooler |
| 88703 | Hose Sub-assy, Discharge |
| 88704 | Hose Sub-assy, Suction |
| 88707 | Pipe Sub-assy, Suction |
| 88710 | Tube Assy, Air Conditioner |
| 88719A | Sensor, Air Conditioner Pressure |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
