Toyota Avensis
2003-07 → 2008-11 · chassis AZT25# · catalogue 273150 · Japan
Supported model
Data version 2009-04

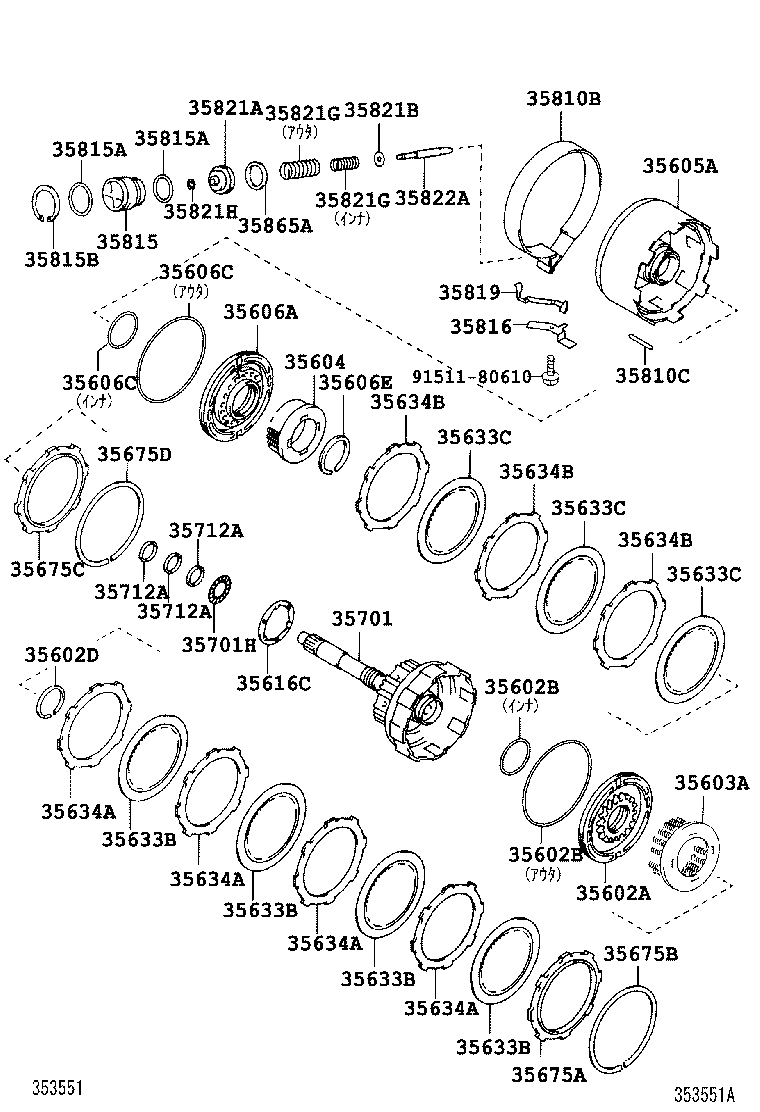

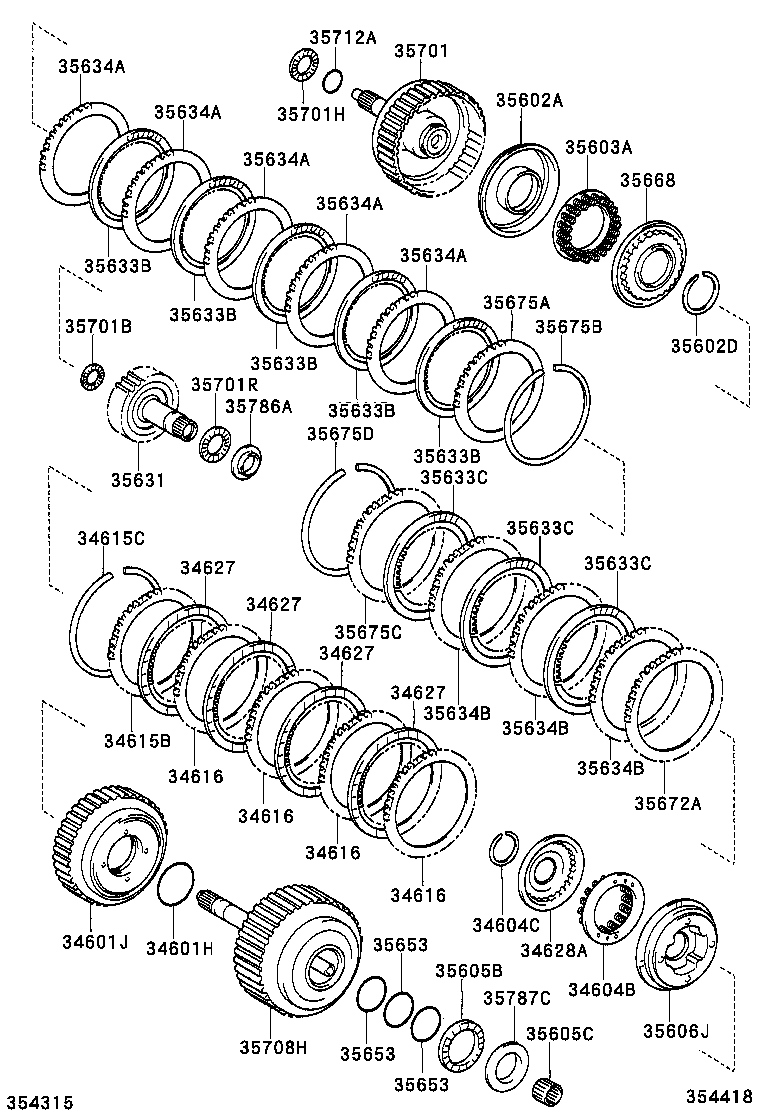

Brake Band & Multiple Disc Clutch (ATM)
56 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 34601H | Ring, O (FOR OVERDRIVE DIRECT CLUCH) |
| 34601J | Drum Sub-assy, Overdrive Direct Clutch |
| 34604B | Spring Sub-assy, Overdrive Clutch Return |
| 34604C | Spring Sub-assy, Overdrive Clutch Return |
| 34615B | Flange, Overdrive Clutch |
| 34615C | Ring, Hole Snap(FOR OVERDRIVE CLUCH) |
| 34616 | Plate, Overdrive Clutch |
| 34627 | Disc, Overdrive Direct Clutch |
| 34628A | Balancer, Overdrive Direct Clutch |
| 35602A | Piston Sub-assy, Forward Clutch |
| 35602B | Ring, O (FOR FORWARD CLUTCH PISTON) |
| 35602D | Ring, Shaft Snap(FOR FORWARD CLUTCH PISTON RETURN SPRING) |
| 35603A | Spring Sub-assy, Forward Clutch Return |
| 35604 | Spring Sub-assy, Direct Clutch Return |
| 35605A | Drum Sub-assy, Direct Clutch |
| 35605B | Bearing, Thrust Needle Roller |
| 35605C | Bearing, Needle Roller |
| 35606A | Piston Sub-assy, Direct Clutch |
| 35606C | Ring, O (FOR DIRECT CLUTCH PISTON) |
| 35606E | Ring, Shaft Snap (FOR DIRECT CLUTCH PISTON RETURN SPRING) |
| 35606G | Piston Set, Direct Clutch |
| 35606J | Piston, Overdrive Direct Clutch |
| 35616C | Washer, Clutch Drum Thrust (FOR DIRECT CLUTCH DRUM) |
| 35631 | Hub, Clutch(FOR MULTIPLE DISC CLUTCH) |
| 35633B | Disc, Clutch (FOR FORWARD MULTIPLE DISC CLUTCH) |
| 35633C | Disc, Clutch (FOR DIRECT MULTIPLE DISC CLUTCH) |
| 35634A | Plate, Clutch (FOR FORWARD MULTIPLE DISC CLUTCH) |
| 35634B | Plate, Clutch (FOR DIRECT MULTIPLE DISC CLUTCH) |
| 35653 | Ring, Rear Clutch Oil Seal, Outer |
| 35668 | Balancer, Clutch, NO.1 |
| 35672A | Plate, Clutch Cushion (FOR DIRECT MULTIPLE DISC CLUTCH) |
| 35675A | Flange, Forward Clutch |
| 35675B | Ring, Hole Snap (FOR FORWARD CLUTCH FLANGE) |
| 35675C | Flange, Direct Clutch |
| 35675D | Ring, Hole Snap (FOR DIRECT CLUTCH FLANGE) |
| 35701 | Shaft Sub-assy, Input |
| 35701B | Bearing, Thrust Needle Roller (FOR INPUT SHAFT REAR) |
| 35701H | Bearing, Thrust Needle Roller (FOR INPUT SHAFT) |
| 35701R | Bearing, Thrust Needle Roller |
| 35708H | Shaft Sub-assy, Intermediate |
| 35712A | Ring, Input Shaft Oil Seal |
| 35786A | Race, Thrust Bearing, NO.1 |
| 35787C | Race, Thrust Bearing, NO.2 |
| 35810B | Band Assy, 2ND Coast Brake |
| 35810C | Pin (FOR 2ND COAST BRAKE BAND) |
| 35815 | Cover, 2ND Coast Brake |
| 35815A | Ring, O (FOR 2ND COAST BRAKE COVER) |
| 35815B | Ring, Hole Snap (FOR 2ND COAST BRAKE COVER) |
| 35816 | Retainer, Brake Band Guide Plate |
| 35819 | Plate, 2ND Coast Brake Band Guide |
| 35821A | Piston, 2ND Coast Brake |
| 35821B | Washer, Plate (FOR 2ND COAST BRAKE PISTON) |
| 35821G | Spring, Compression (FOR 2ND COAST BRAKE PISTON) |
| 35821H | Ring, E (FOR 2ND COAST BRAKE PISTON) |
| 35822A | Rod, 2ND Coast Brake Piston |
| 35865A | Ring, 2ND Coast Brake Piston Oil Seal |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
