Toyota Avensis

2003-07 → 2008-11 · chassis AZT25# · catalogue 273150 · Japan

Supported model Data version 2009-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Cooler & Tube (ATM)

15 part groups · 3 illustrations

Illustrations

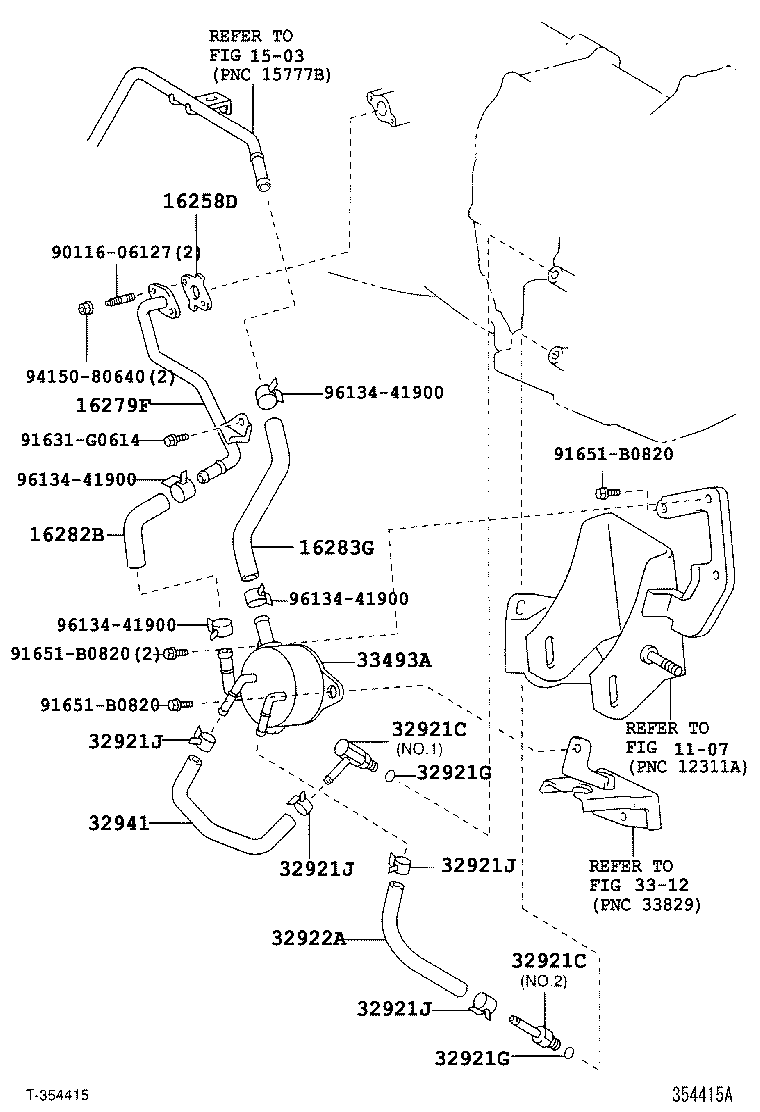

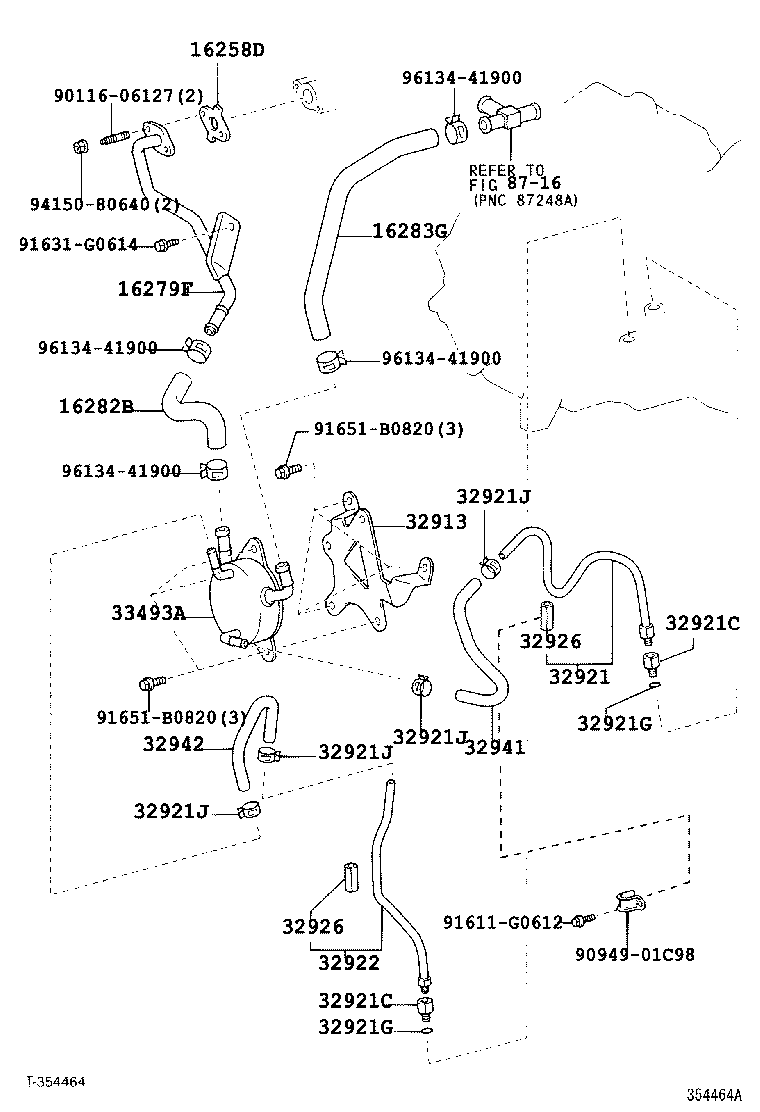

Figure 354401A 354401A 2003-07 → — Figure 354464A 354464A 2003-09 → — Figure 354415A 354415A 2005-06 → —

Part groups

PNCDescription
16258D Gasket(FOR WATER BY-PASS PIPE)
16279F Pipe, Water By-pass, NO.3
16282B Hose, Water By-pass, NO.5
16283G Hose, Water By-pass, NO.6
32913 Bracket, Oil Cooler
32921 Tube, Oil Cooler Inlet, NO.1
32921C Union(FOR OIL COOLER TUBE)
32921G Ring, O(FOR OIL COOLER TUBE UNION)
32921J Clip(FOR OIL COOLER HOSE)
32922 Tube, Oil Cooler Outlet, NO.1
32922A Hose(FOR OIL COOLER OUTLET)
32926 Cushion, Oil Cooler Tube(ATM)
32941 Hose, Oil Cooler Inlet, NO.1
32942 Hose, Oil Cooler Outlet, NO.1
33493A Cooler, Transmission Oil(ATF WARMER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
