Toyota Avensis

2003-07 → 2008-11 · chassis AZT25# · catalogue 273150 · Japan

Supported model Data version 2009-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

2 part groups · 4 illustrations

Illustrations

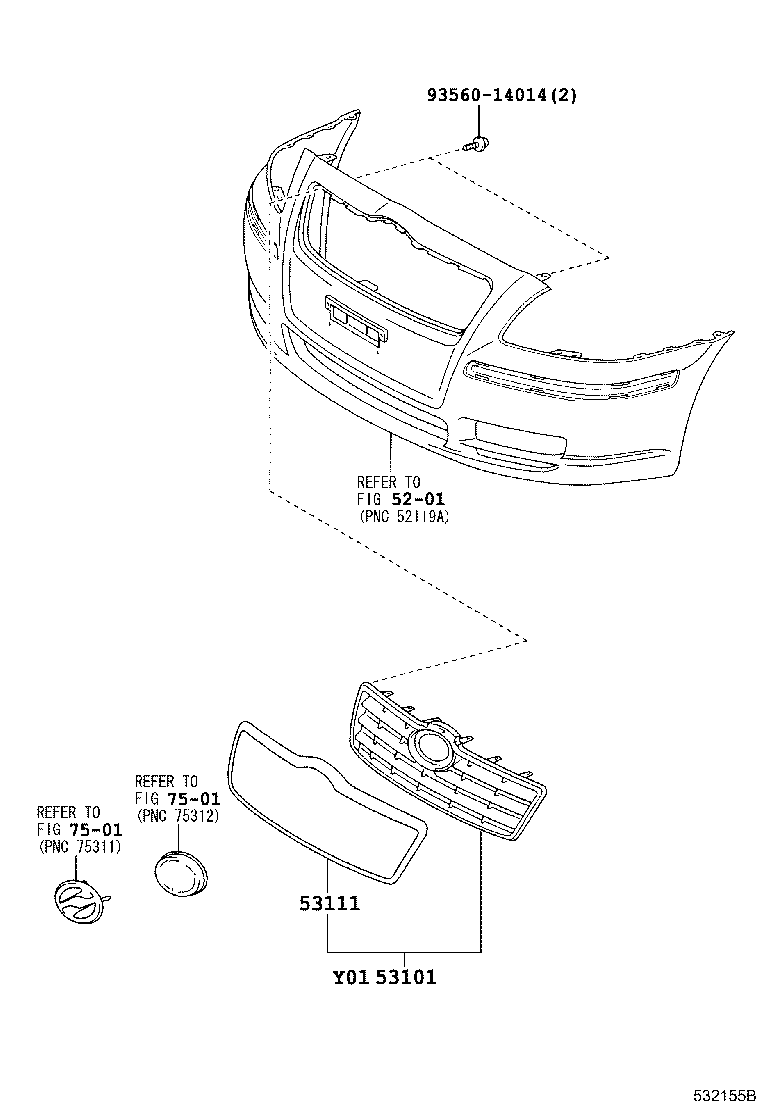

Figure 531446F 531446F 2003-07 → 2005-06 Figure 531446F 531446F 2003-07 → 2005-08 Figure 532155B 532155B 2005-06 → 2006-06 Figure 532224B 532224B 2006-06 → —

Part groups

PNCDescription
53101 Grille Sub-assy, Radiator
53111 Grille, Radiator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
