Toyota Avensis

2003-07 → 2008-11 · chassis AZT25# · catalogue 273150 · Japan

Supported model Data version 2009-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

13 part groups · 2 illustrations

Illustrations

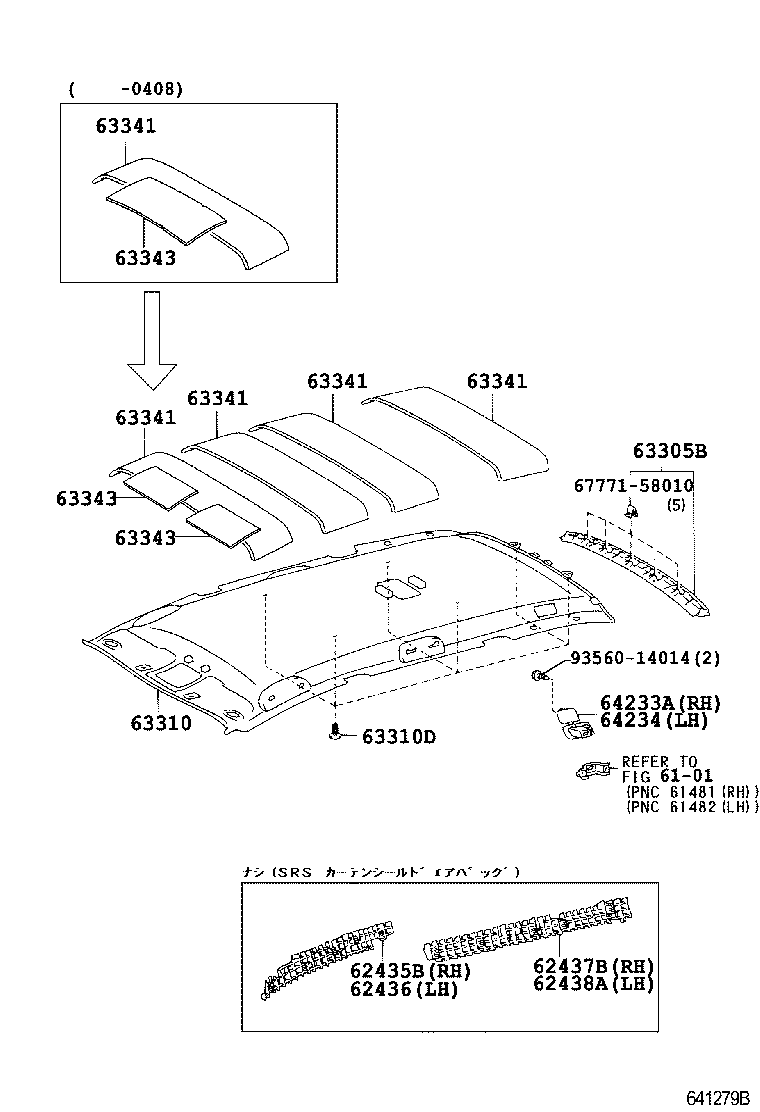

Figure 641278A 641278A 2003-07 → — Figure 641279B 641279B 2003-07 → —

Part groups

PNCDescription
62435B Pad, Roof Side Rail, Front RH
62436 Pad, Roof Side Rail, Front LH
62437B Pad, Roof Side Rail, Rear RH
62438A Pad, Roof Side Rail, Rear LH
63305B Trim Sub-assy, Roof Headlining, Rear
63310 Headlining Assy, Roof
63310D Clip, Roof Headlining
63341 Pad, Roof Silencer, NO.1
63342 Pad, Roof Silencer, NO.2
63343 Pad, Roof Silencer, NO.3
63356C Holder, Sunshade Trim
64233A Hook, Room Partition Net, Rear RH
64234 Hook, Room Partition Net, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
