Toyota Avensis

2003-07 → 2008-11 · chassis AZT25# · catalogue 273150 · Japan

Supported model Data version 2009-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

10 part groups · 2 illustrations

Illustrations

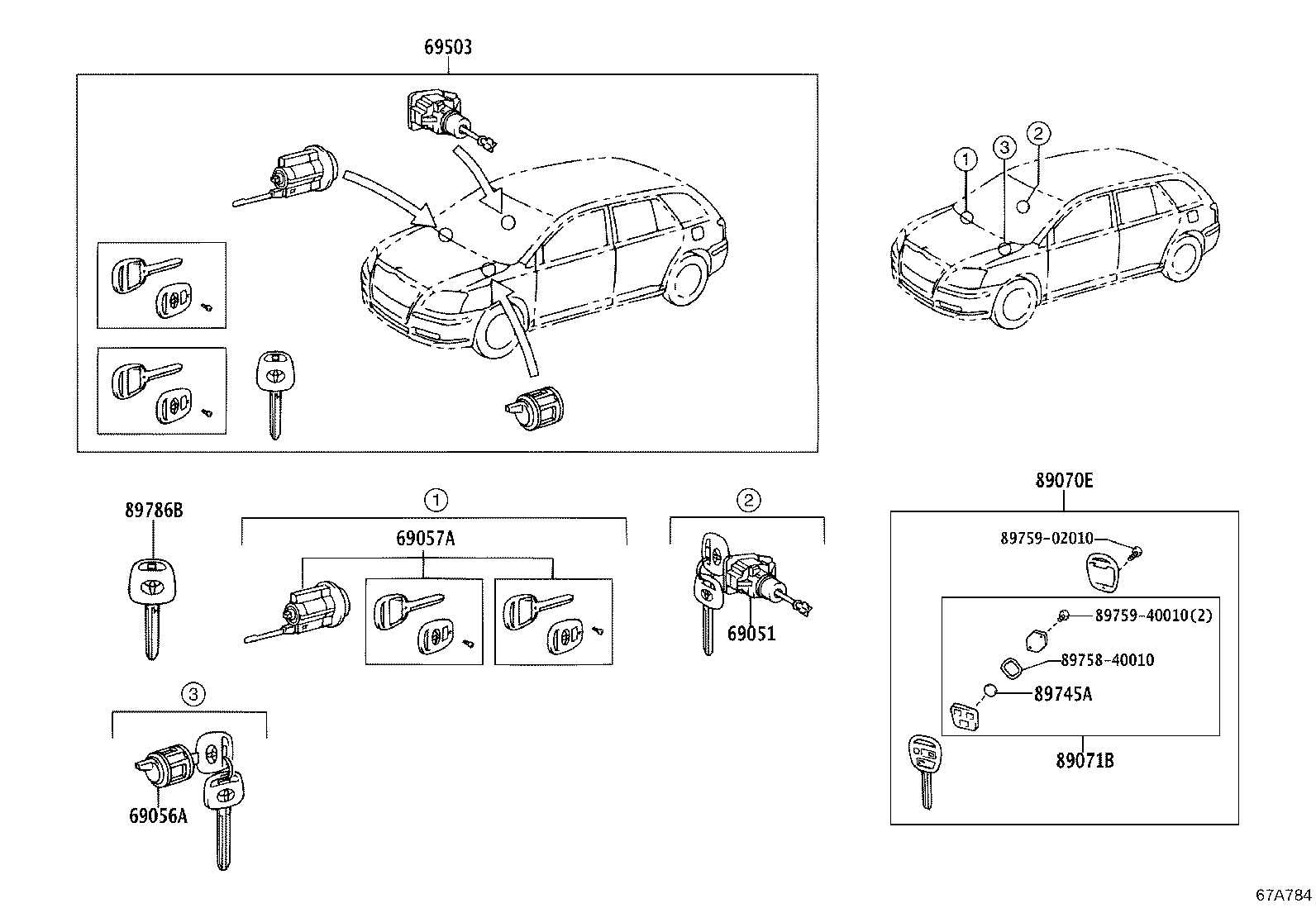

Figure 67A783 67A783 2003-07 → — Figure 67A784 67A784 2003-07 → —

Part groups

PNCDescription
69051 Cylinder & Key Set, Door Lock, RH
69055A Cylinder & Key Set, Luggage Compartment Lock
69056A Cylinder & Key Set, Glove Compartment Lock
69057A Cylinder & Key Set, Ignition Switch Lock
69503 Cylinder Set, Lock
69759G Snap, Luggage Door Lock Cylinder
89070E Transmitter Assy, Door Control
89071B Module Set, Transmitter Sub-assy, Door Control
89745A Battery, Transmitter
89786B Transmitter, Transponder Key Sub
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
