Toyota Avensis

2003-07 → 2008-11 · chassis AZT25# · catalogue 273150 · Japan

Supported model Data version 2009-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

20 part groups · 3 illustrations

Illustrations

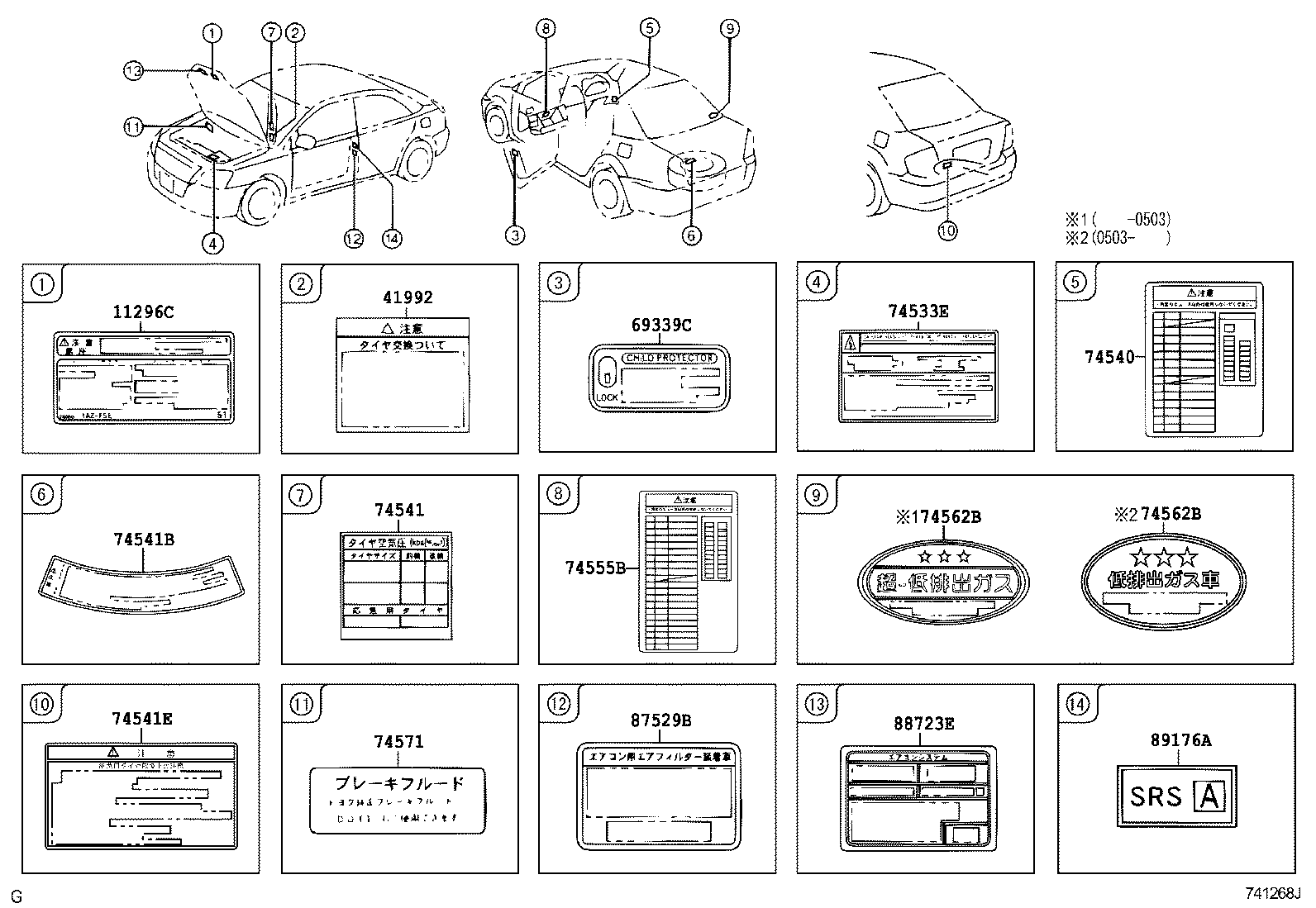

Figure 746130 746130 2003-07 → — Figure 741268J 741268J 2003-07 → — Figure 741482B 741482B 2003-07 → —

Part groups

PNCDescription
11289B Label, Spark Plug Notice
11291B Plate, Engine Name
11295B Label, Engine Service Notice, NO.1
11296C Label, Engine Service Information
41992 Label, Differential Notice
69339C Label, Child Protector Information
74533E Label, Headlamp Voltage Caution
74540 Plate, Fuse Block Caution
74541 Plate, Tire Pressure Caution
74541B Plate, Compact Spare Tire Caution
74541E Plate, Compact Spare Tire Caution
74555B Plate, Fuse Block Caution
74561A Label, Fuel Consumption Information
74562B Label, Emission Information
74569A Plate, Vehicle Information
74571 Plate, Brake Fluid Caution
74579A Label, Unleaded Fuel Information
87529B Label, A/C Filter Information
88723E Label, Cooler Service Caution
89176A Label, Airbag Deployment Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
