Toyota Avensis
2003-07 → 2008-11 · chassis AZT25# · catalogue 273150 · Japan
Supported model
Data version 2009-04

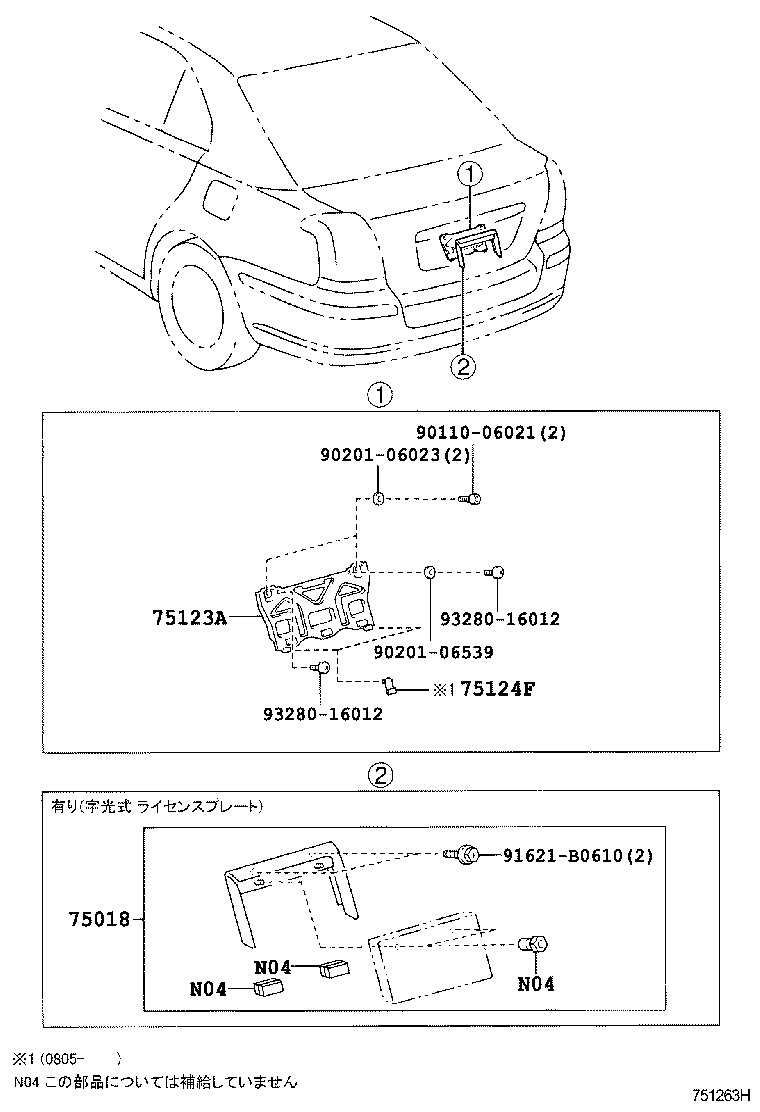

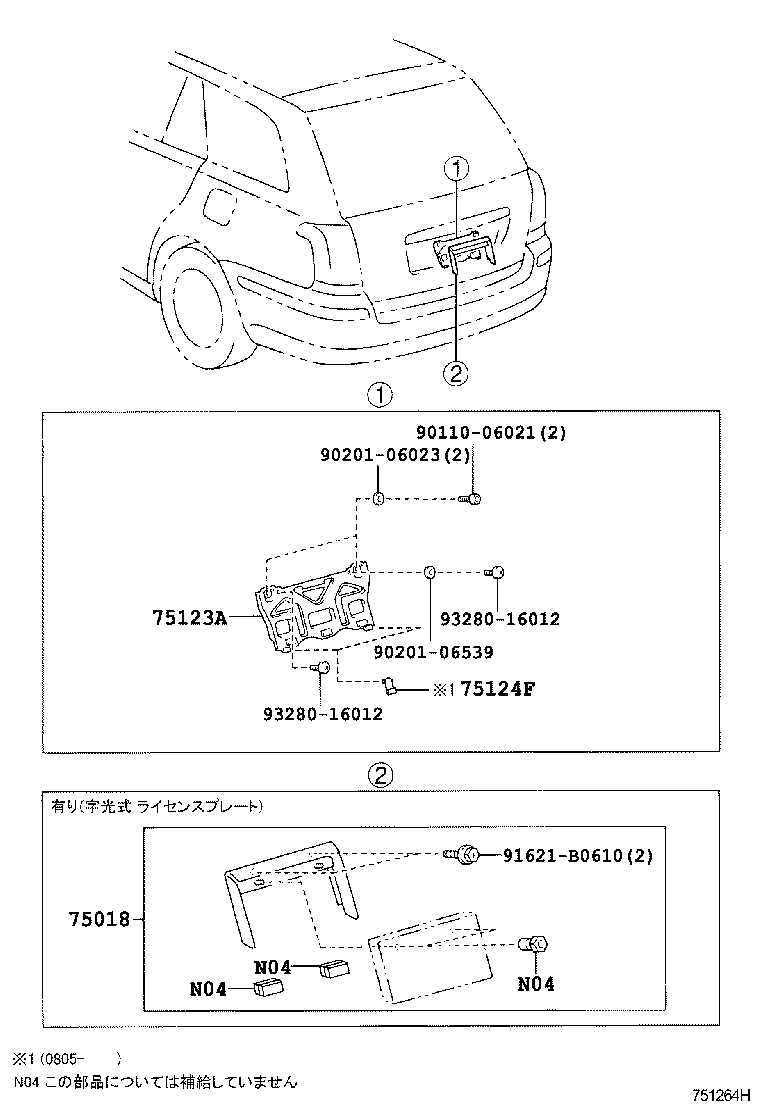

Rear Moulding
8 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 75018 | Frame Sub-assy, Rear License Plate |
| 75123A | Bracket Rear Licence Plate |
| 75124F | Bracket, Rear License Retainer |
| 75571 | Moulding, Back Window, Outside Upper |
| 75819 | Clip, Luggage Compartment Door Moulding |
| 75819A | Clip, Back Door Moulding |
| 76801A | Garnish Sub-assy, Luggage Compartment Door, Outside |
| 76801B | Garnish Sub-assy, Back Door, Outside RH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
