Toyota Avensis

2003-07 → 2008-11 · chassis AZT25# · catalogue 273150 · Japan

Supported model Data version 2009-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Overdrive & Electronic Controlled Transmission

4 part groups · 3 illustrations

Illustrations

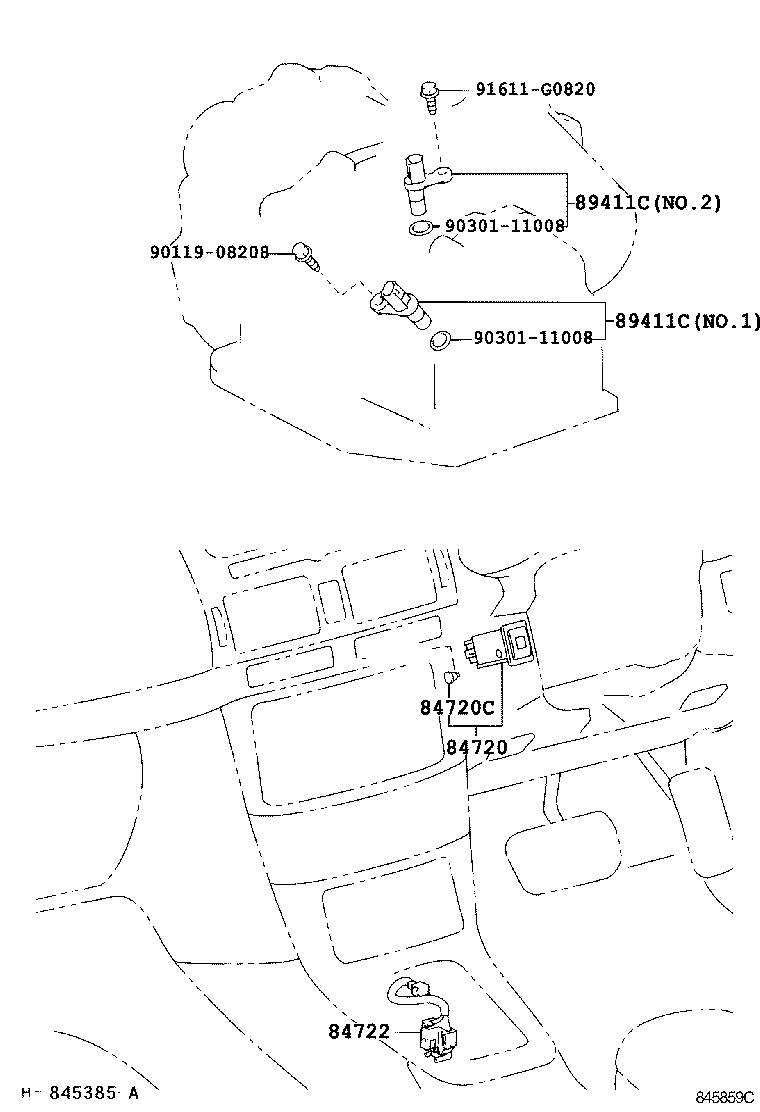

Figure 845385E 845385E 2003-07 → — Figure 845978A 845978A 2003-09 → — Figure 845859C 845859C 2005-06 → —

Part groups

PNCDescription
84720 Switch Assy, Pattern Select
84720C Bulb(FOR PATTERN SELECT SWITCH)
84722 Switch, Transmission Control
89411C Sensor, Speed
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
