Oil Cooler & Tube(CVT)

21 part groups · 2 illustrations

Illustrations

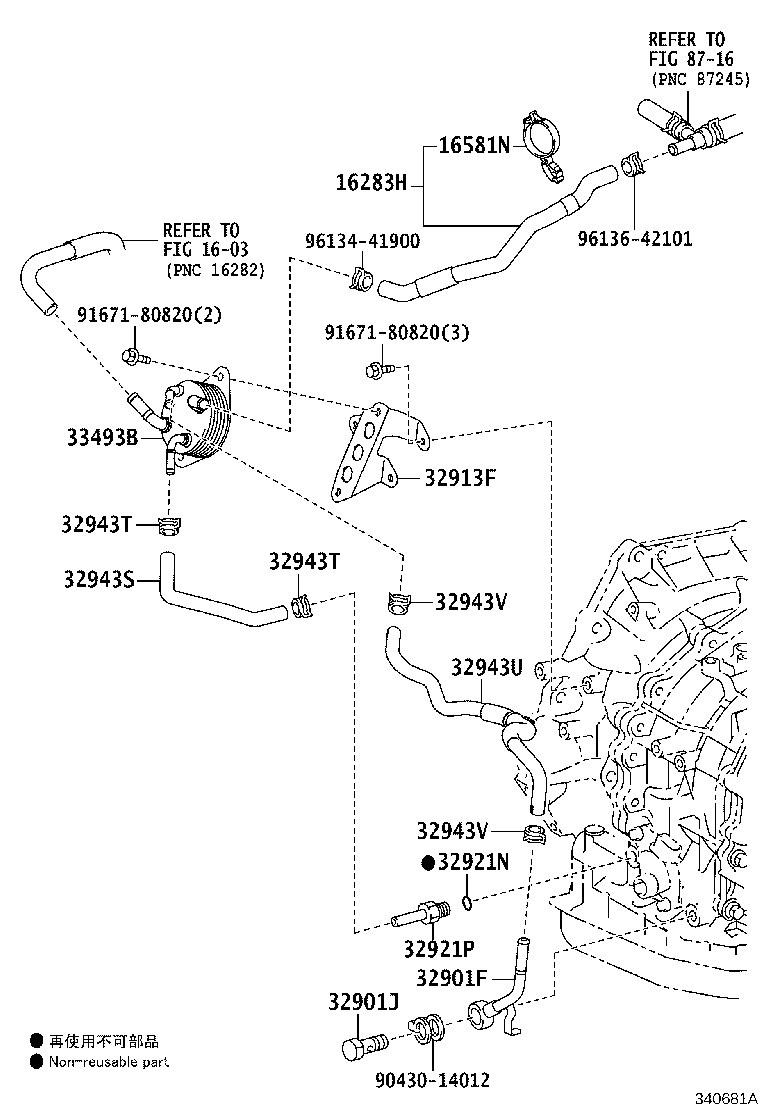

Figure 340327A 340327A 2011-07 → 2015-05 Figure 340681A 340681A 2015-07 → —

Part groups

PNCDescription
16283H Hose, Water By-pass, NO.6
16581N Clamp, Hose(FOR WATER HOSE)
32901F Elbow Sub-assy, Oil Cooler
32901J Bolt, Union(FOR OIL COOLER)
32907F Tube Sub-assy, Oil Cooler W/O Hose
32913F Bracket, Transmission Oil Cooler
32921N Ring, O(FOR OIL COOLER TUBE UNION)
32921P Union(FOR OIL COOLER TUBE)
32930A Hose Assy, Transmission Oil Cooler
32931F Tube, Oil Cooler Inlet
32932C Tube, Oil Cooler Outlet
32941D Hose, Oil Cooler Inlet
32941E Clip(FOR OIL COOLER TUBE)
32941K Clip, NO.1(FOR OIL COOLER HOSE)
32942C Hose, Oil Cooler Outlet, NO.1
32942F Clip, NO.2(FOR OIL COOLER HOSE)
32943S Hose, Transmission Oil Cooler, NO.1
32943T Clip, NO.1(FOR OIL COOLER HOSE)
32943U Hose, Transmission Oil Cooler, NO.2
32943V Clip, NO.2(FOR OIL COOLER HOSE)
33493B Cooler, Oil
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
