Toyota Avensis

2011-07 → 2018-07 · chassis ZRT272 · catalogue 273160 · Japan

Supported model Data version 2019-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

5 part groups · 2 illustrations

Illustrations

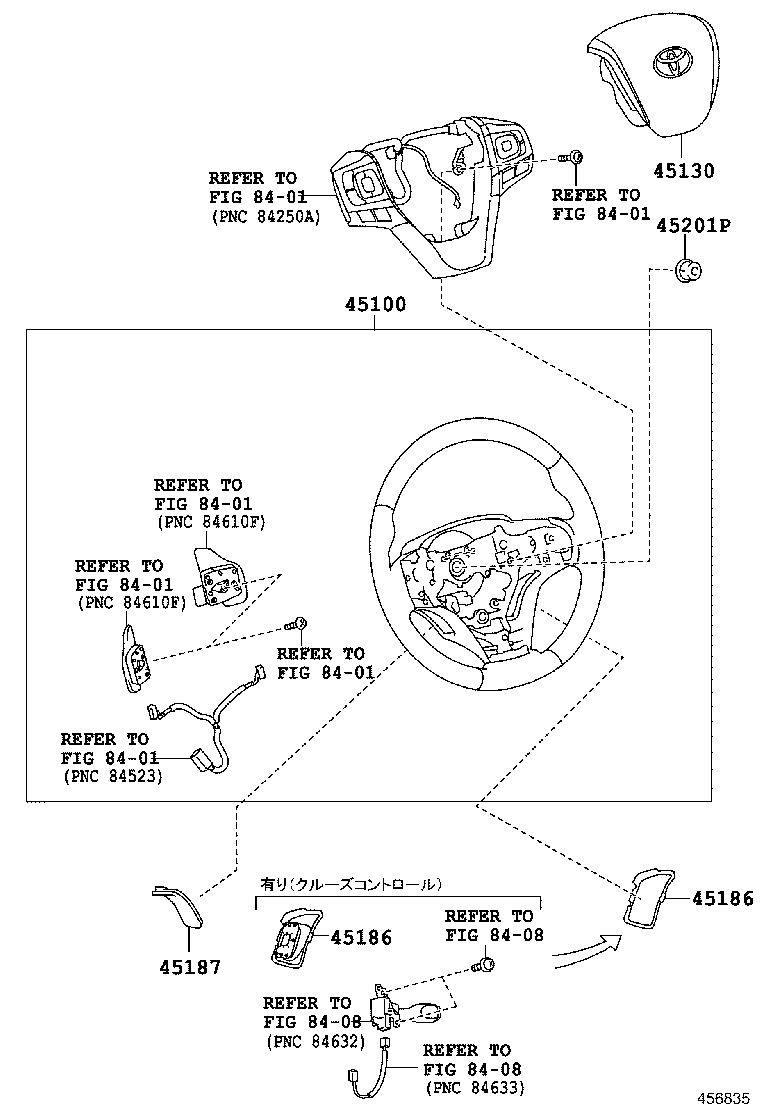

Figure 455859C 455859C 2011-07 → 2015-05 Figure 456835 456835 2015-07 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45130 Button Assy, Horn
45186 Cover, Steering Wheel, Lower NO.2
45187 Cover, Steering Wheel, Lower NO.3
45201P Nut, Steering Wheel Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
