Toyota Avensis

2011-07 → 2018-07 · chassis ZRT272 · catalogue 273160 · Japan

Supported model Data version 2019-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

36 part groups · 3 illustrations

Illustrations

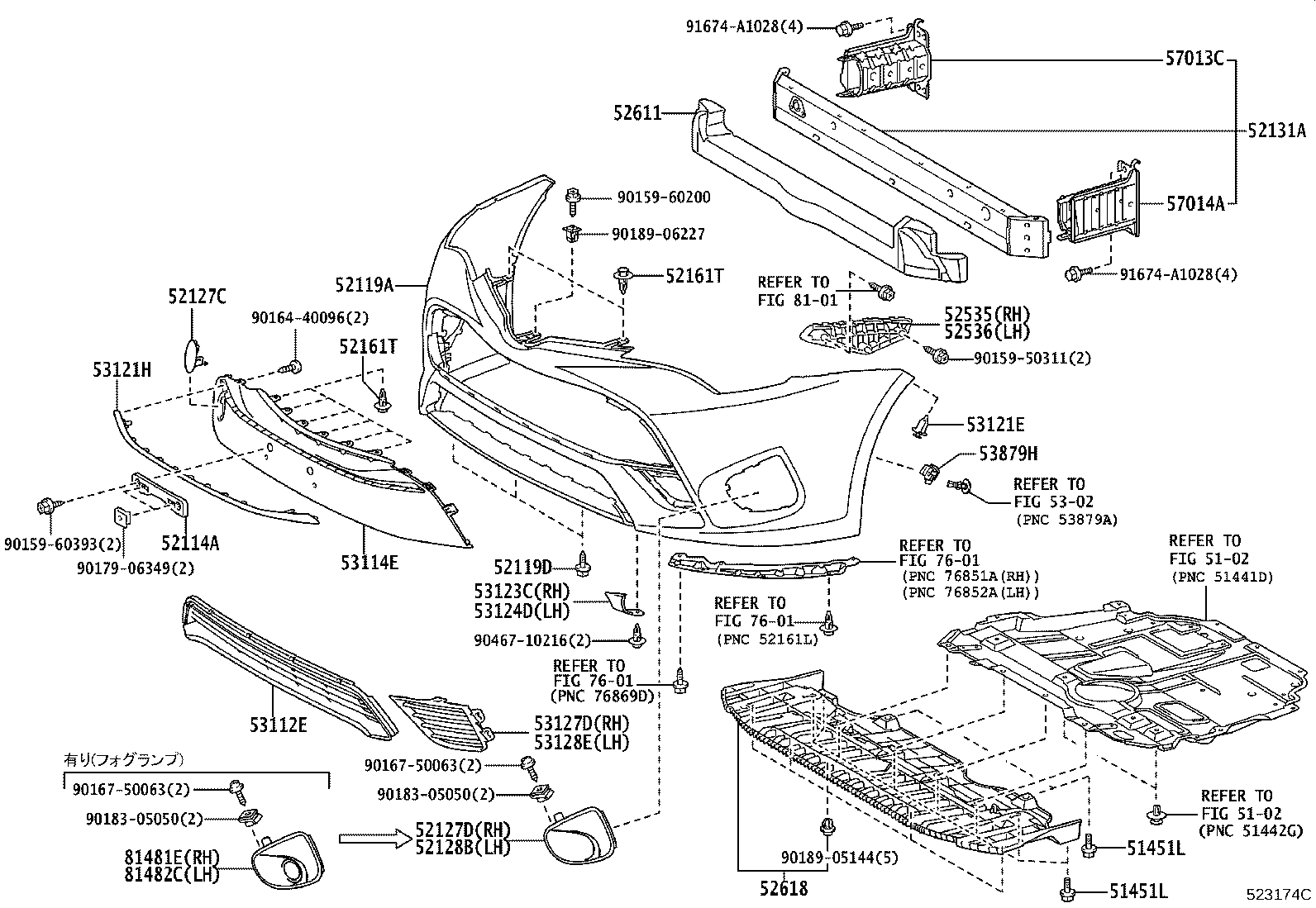

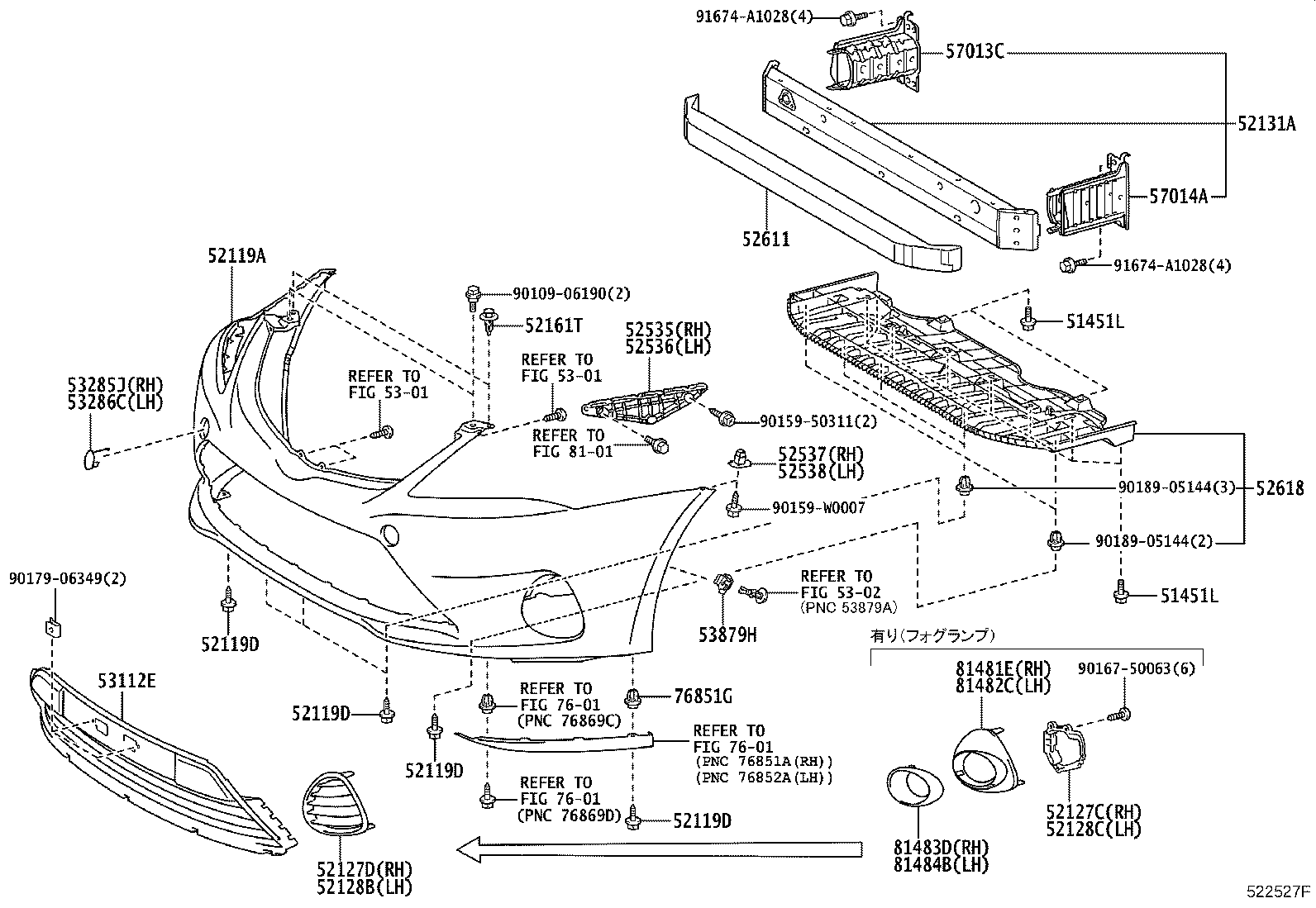

Figure 522445D 522445D 2011-07 → 2012-02 Figure 522527F 522527F 2012-02 → 2015-05 Figure 523174C 523174C 2015-07 → —

Part groups

PNCDescription
51451L Bolt, NO.1
52114A Bracket, Front Bumper Extension Mounting
52119A Cover, Front Bumper
52119D Screw, NO.1
52127C Cover, Front Bumper Hole
52127D Cover, Front Bumper Hole, RH
52128B Cover, Front Bumper Hole, LH
52128C Cover, Front Bumper Hole, LH
52131A Reinforcement, Front Bumper
52161C Piece, Front Bumper
52161T Piece, Front Bumper
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
52537 Retainer, Front Bumper End, RH
52537A Retainer, Front Bumper Side, NO.2
52538 Retainer, Front Bumper End, LH
52611 Absorber, Front Bumper Energy
52618 Absorber, Front Bumper, Lower
53112E Grille, Radiator, Lower NO.1
53114E Grille, Radiator, Upper
53121E Clip(FOR FRONT BUMPER), NO.1
53121H Moulding, Radiator Grille, NO.1
53123C Moulding, Radiator Grille, Lower RH
53124D Moulding, Radiator Grille, Lower LH
53127D Grille, Radiator, Lower Side RH
53128E Grille, Radiator, Lower Side LH
53285J Cover, Front Bumper Arm Hole, RH
53286C Cover, Front Bumper Arm Hole, LH
53879H Retainer, Front Fender Liner
57013C Bracket Sub-assy, Front Side Member, RH
57014A Bracket Sub-assy, Front Side Member, LH
76851G Grommet, Screw, NO.1
81481E Cover, Fog Lamp, RH
81482C Cover, Fog Lamp, LH
81483D Protector, Fog Lamp, RH
81484B Protector, Fog Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
