Toyota Avensis

2011-07 → 2018-07 · chassis ZRT272 · catalogue 273160 · Japan

Supported model Data version 2019-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

45 part groups · 5 illustrations

Illustrations

717170K 2011-07 → 2015-05

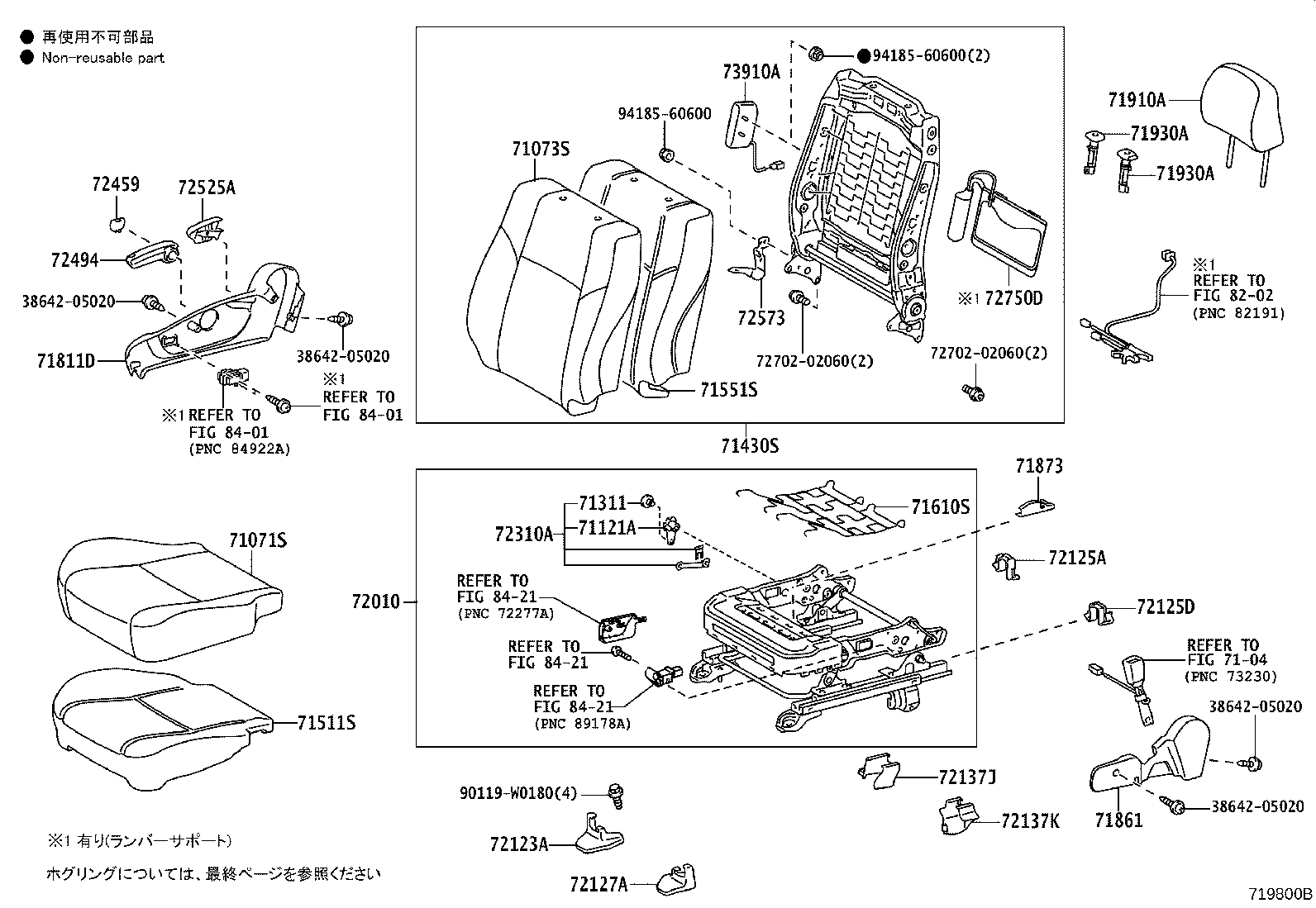

719800B 2015-07 → —

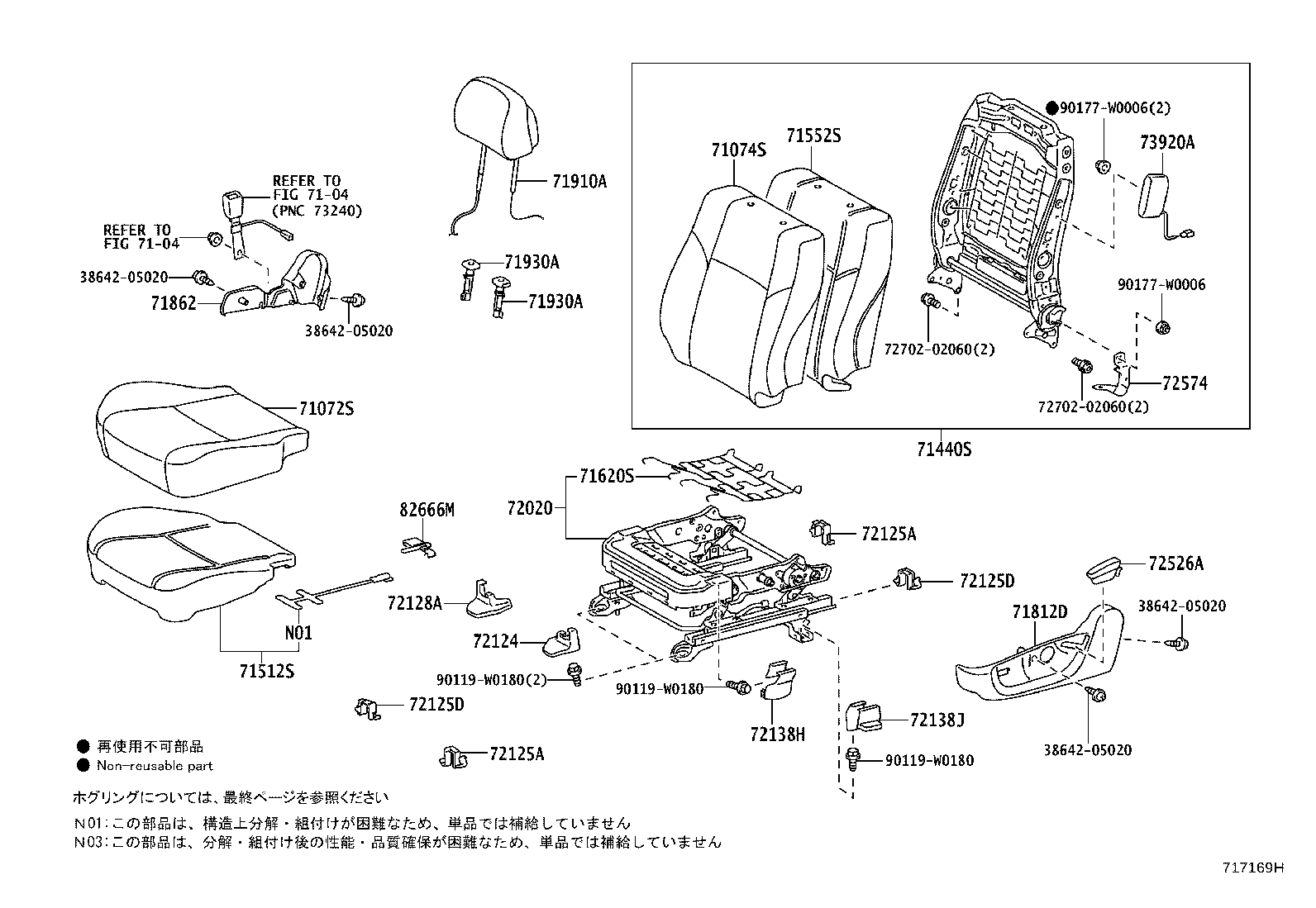

717169H 2011-07 → 2015-05

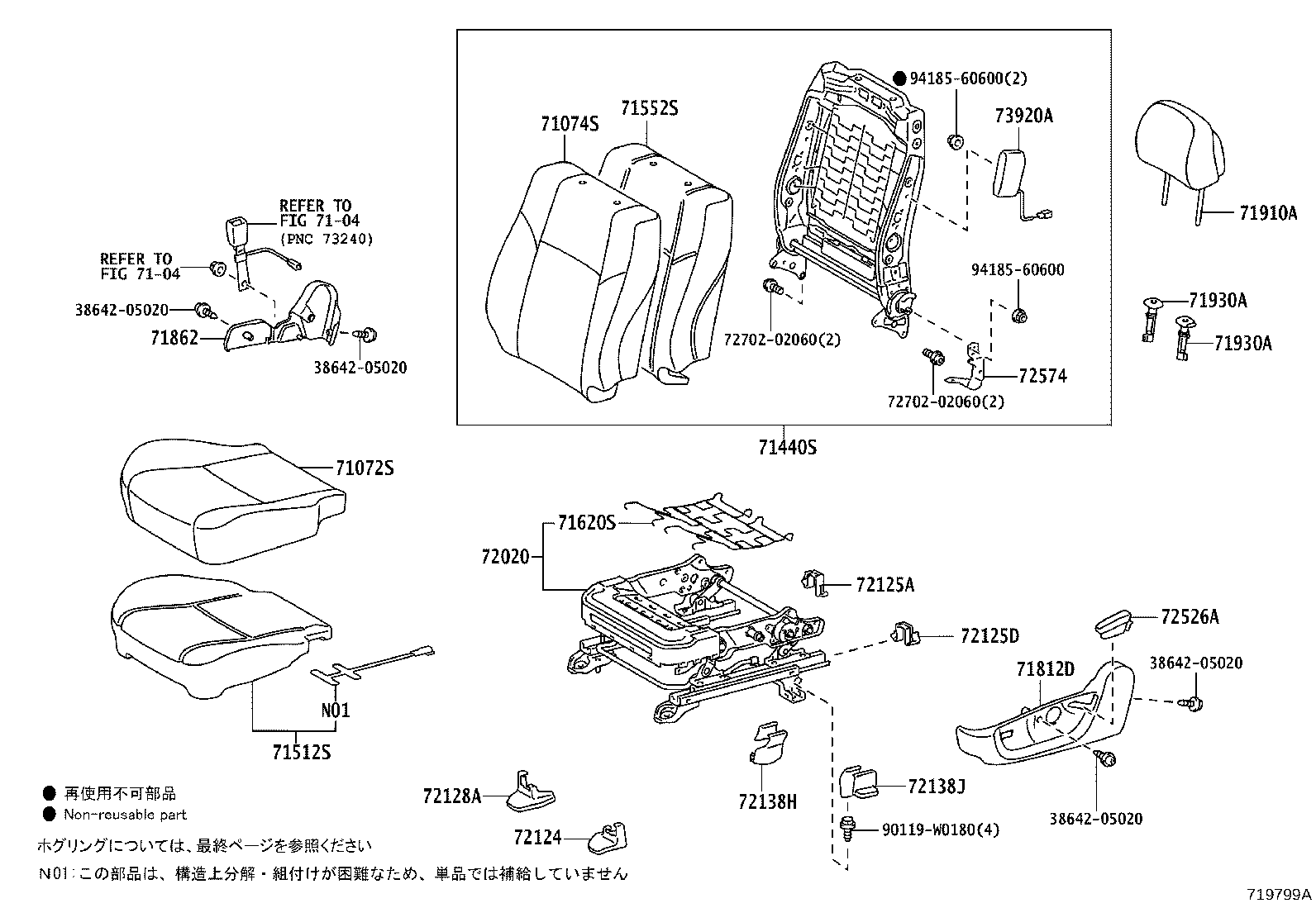

719799A 2015-07 → —

71F765 2011-07 → —

Part groups

PNC	Description
71071S	Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S	Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S	Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S	Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71121A	Bracket, Front Seat Cushion, Outer
71311	Pin, Front Seat Hinge
71430S	Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S	Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71511S	Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S	Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71551S	Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S	Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71610S	Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71620S	Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71811D	Shield, Front Seat Cushion, RH
71812D	Shield, Front Seat Cushion, LH
71861	Shield, Front Seat Cushion, Inner RH
71862	Shield, Front Seat Cushion, Inner LH
71873	Shield, Front Seat Cushion, Lower RH
71910A	Headrest Assy, Front Seat
71930A	Support Assy, Front Seat Headrest
72010	Adjuster Assy, Front Seat, RH
72020	Adjuster Assy, Front Seat, LH
72123A	Cover, Seat Track Bracket, Outer Front RH
72124	Cover, Seat Track Bracket, Outer Front LH
72125A	Cover, Seat Track, Upper Rear
72125D	Cover, Seat Track, Upper Rear NO.2
72127A	Cover, Seat Track Bracket, Inner Front RH
72128A	Cover, Seat Track Bracket, Inner Front LH
72137J	Cover, Front Seat Track, RH Rear Outer
72137K	Cover, Front Seat Track, RH Rear Inner
72138H	Cover, Front Seat Track, LH Rear Inner
72138J	Cover, Front Seat Track, LH Rear Outer
72310A	Adjuster Assy, Front Seat Vertical
72459	Cap, Vertical Seat Adjuster Knob
72494	Handle, Vertical Adjusting, RH
72525A	Handle, Reclining Adjuster Release, RH
72526A	Handle, Reclining Adjuster Release, LH
72573	Lever, Reclining Control, RH
72574	Lever, Reclining Control, LH
72750D	Adjuster Assy, Lumbar Support, RH
73146	Cover, Front Seat Belt Inner Anchor Bracket, RH
73910A	Airbag Assy, Front Seat, RH
73920A	Airbag Assy, Front Seat, LH
82666M	Holder, Connector

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
