Toyota Avensis

2011-07 → 2018-07 · chassis ZRT272 · catalogue 273160 · Japan

Supported model Data version 2019-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

12 part groups · 4 illustrations

Illustrations

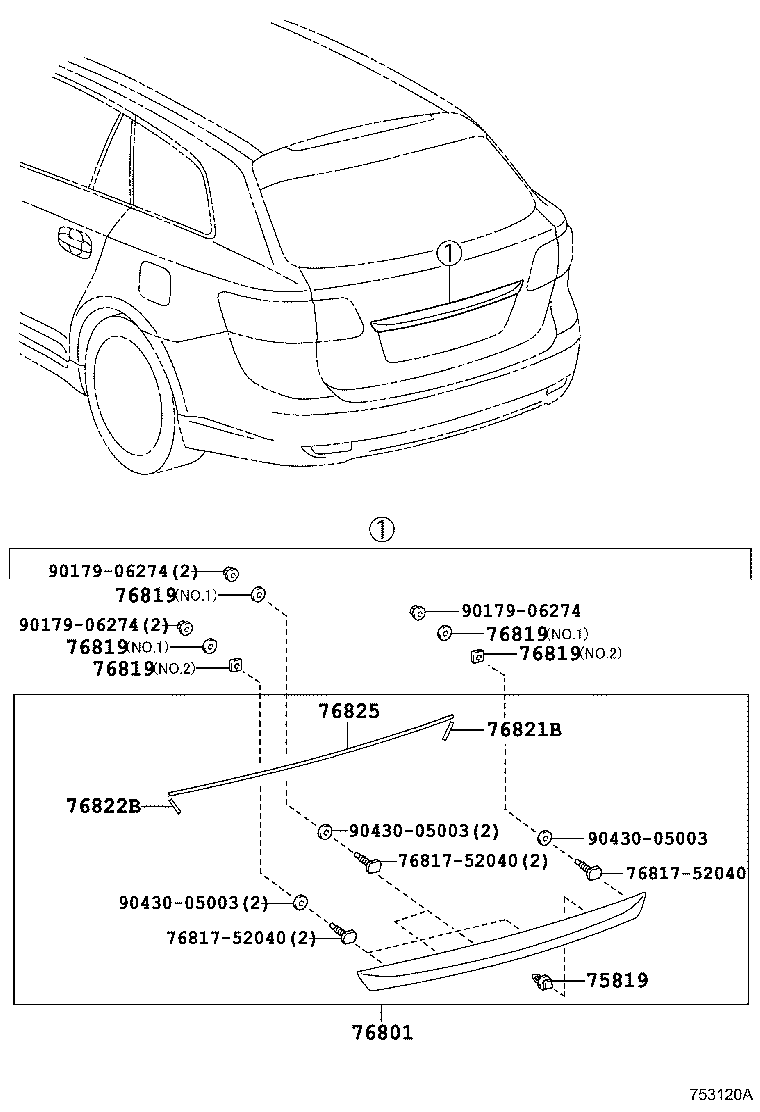

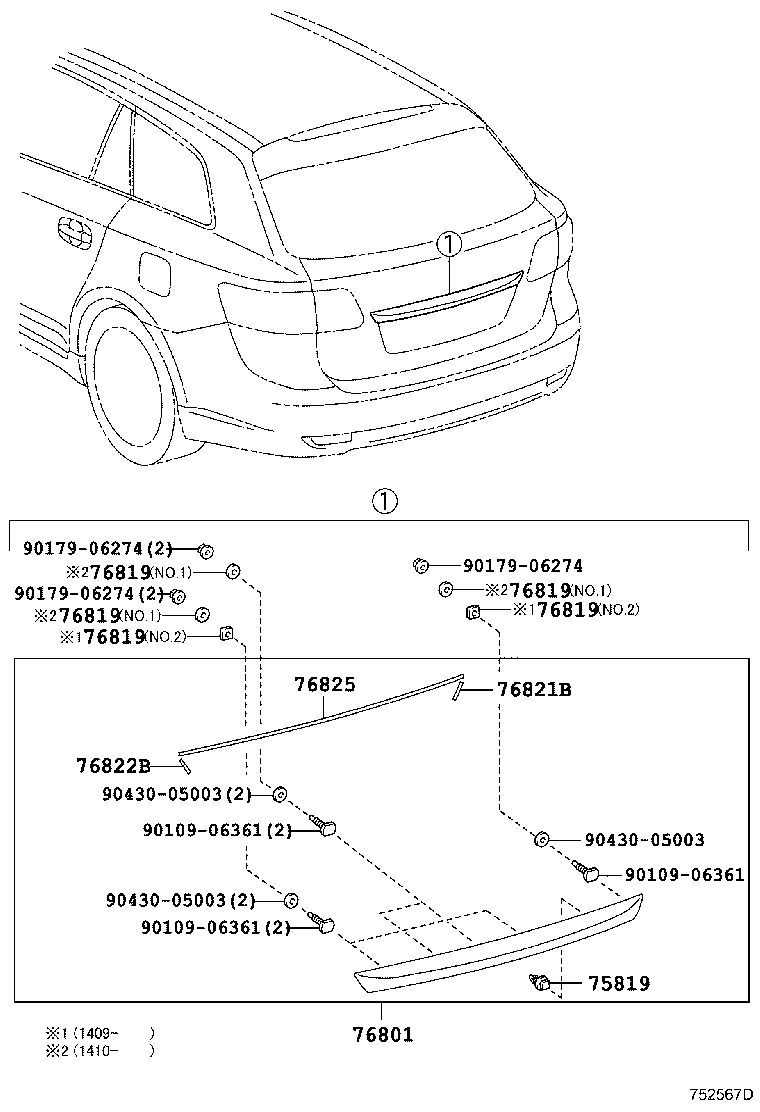

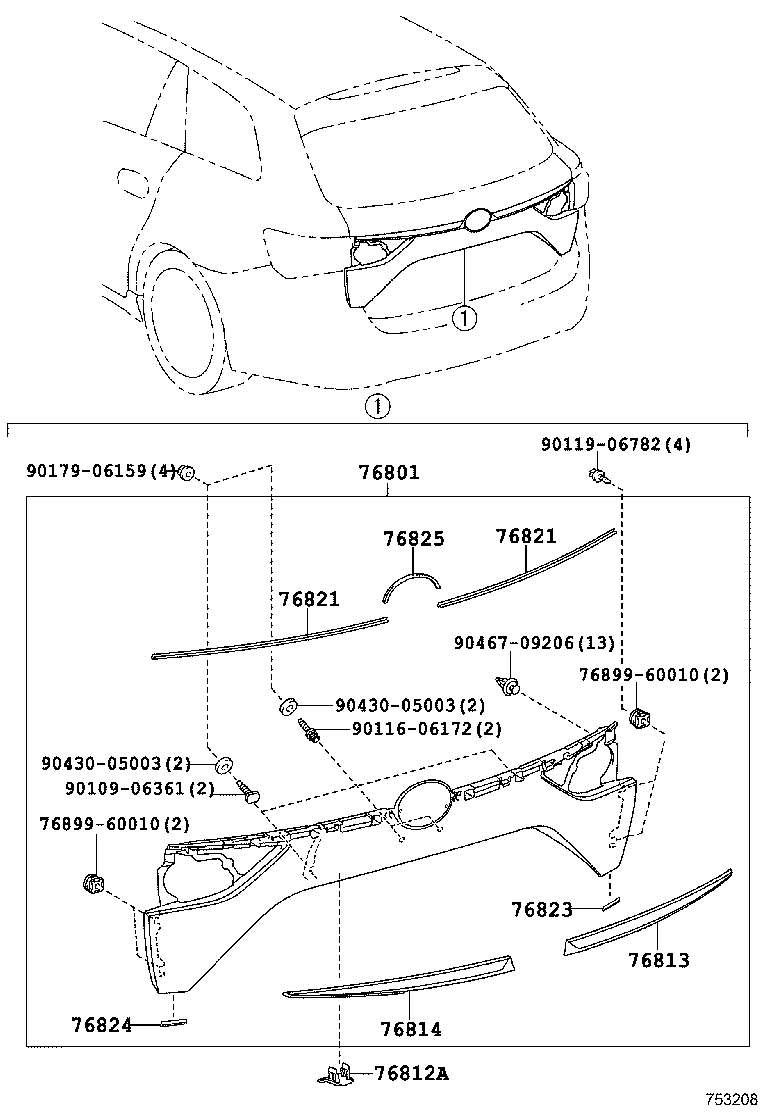

Figure 752490 752490 2011-07 → 2011-11 Figure 752567D 752567D 2012-02 → 2014-12 Figure 753120A 753120A 2014-12 → 2015-05 Figure 753208 753208 2015-07 → —

Part groups

PNCDescription
75819 Clip, Luggage Compartment Door Moulding
76801 Garnish Sub-assy, Back Door, Outside
76812A Garnish, Back Door, Outside NO.2
76813 Garnish, Back Door Outside, Upper RH
76814 Garnish, Back Door Outside, Upper LH
76819 Seal, Back Door Outside Garnish
76821 Protector, Back Door Garnish Moulding, Upper
76821B Protector, Back Door Garnish Side, RH
76822B Protector, Back Door Garnish Side, LH
76823 Protector, Back Door Garnish Moulding, RH
76824 Protector, Back Door Garnish Moulding, LH
76825 Protector, Back Door Outside Garnish
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
