Toyota Avensis

2011-07 → 2018-07 · chassis ZRT272 · catalogue 273160 · Japan

Supported model Data version 2019-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

5 part groups · 2 illustrations

Illustrations

864621 2011-07 → 2015-05

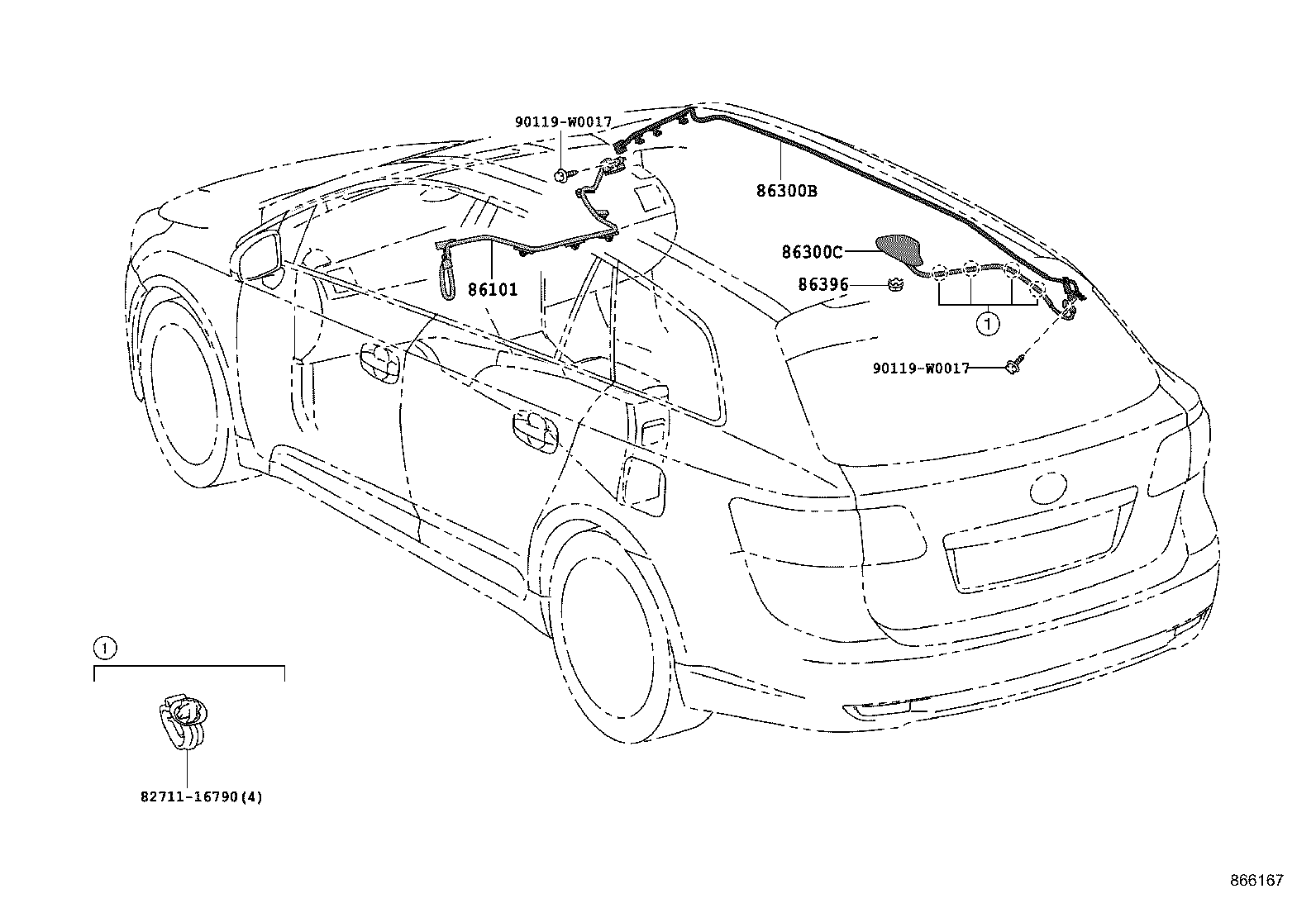

866167 2015-07 → —

Part groups

PNC	Description
86101	Cord Sub-assy, Antenna
86300B	Antenna Assy, Amplifier, NO.1
86300C	Antenna Assy, Amplifier, NO.2
86309E	Pole Sub-assy, Roof Antenna
86396	Nut, Antenna

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
