Toyota Avensis
2011-07 → 2018-07 · chassis ZRT272 · catalogue 273160 · Japan
Supported model
Data version 2019-01
Mirror
8 part groups · 2 illustrations
Part groups

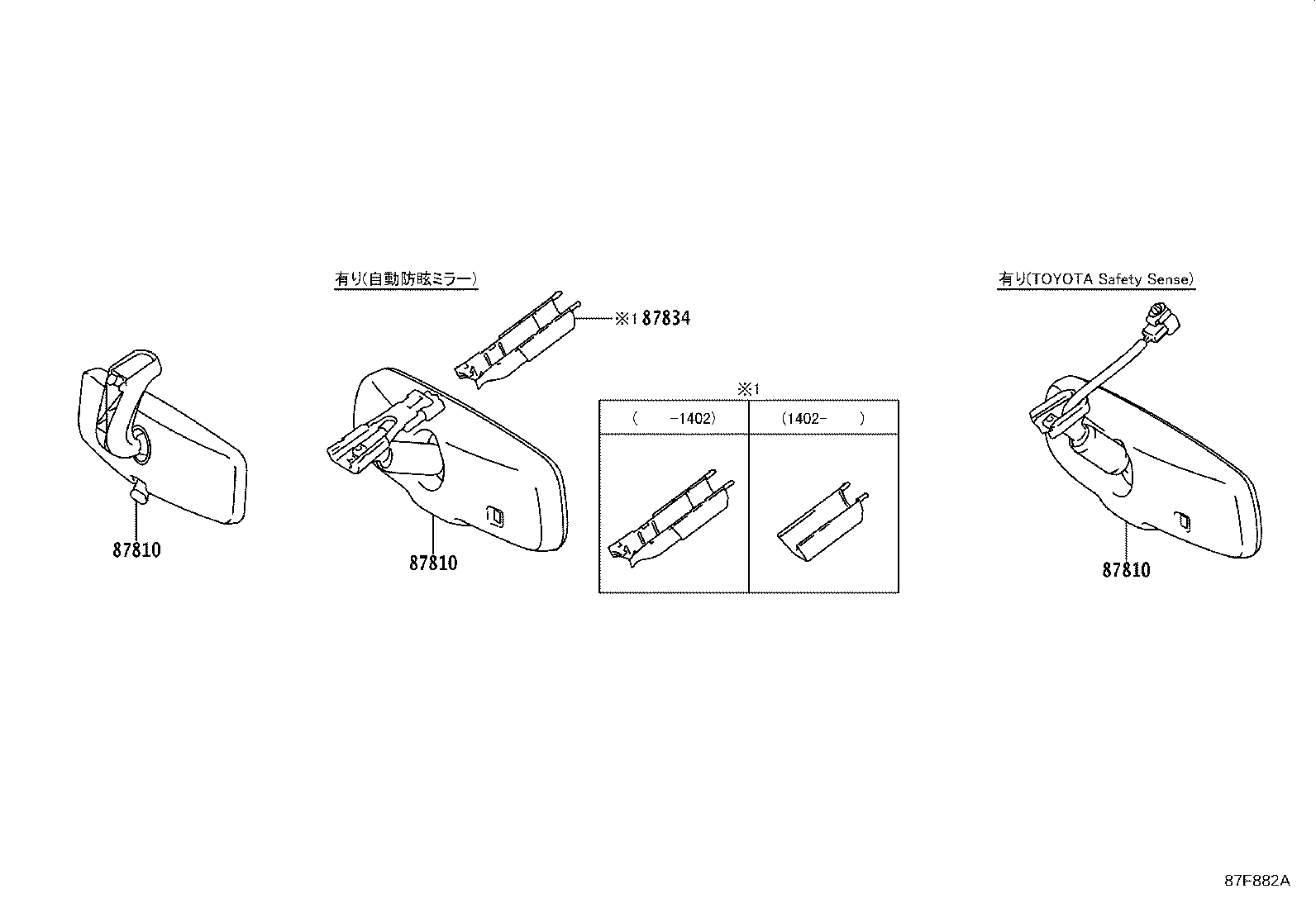

| PNC | Description |
|---|---|
| 87810 | Mirror Assy, Inner Rear View |
| 87834 | Cover, Inner Rear View Mirror Stay Holder |
| 87908B | Mirror Sub-assy, RH |
| 87909B | Mirror Sub-assy, LH |
| 87915A | Cover, Outer Mirror, RH |
| 87931 | Outer Mirror, RH |
| 87945B | Cover, Outer Mirror, LH |
| 87961 | Mirror Outer, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
