Toyota Caldina

1992-11 → 2002-06 · chassis AT191,CT19#,ET196,ST19# · catalogue 274130 · Japan

Discontinued model Data version 2003-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Filter

13 part groups · 7 illustrations

Illustrations

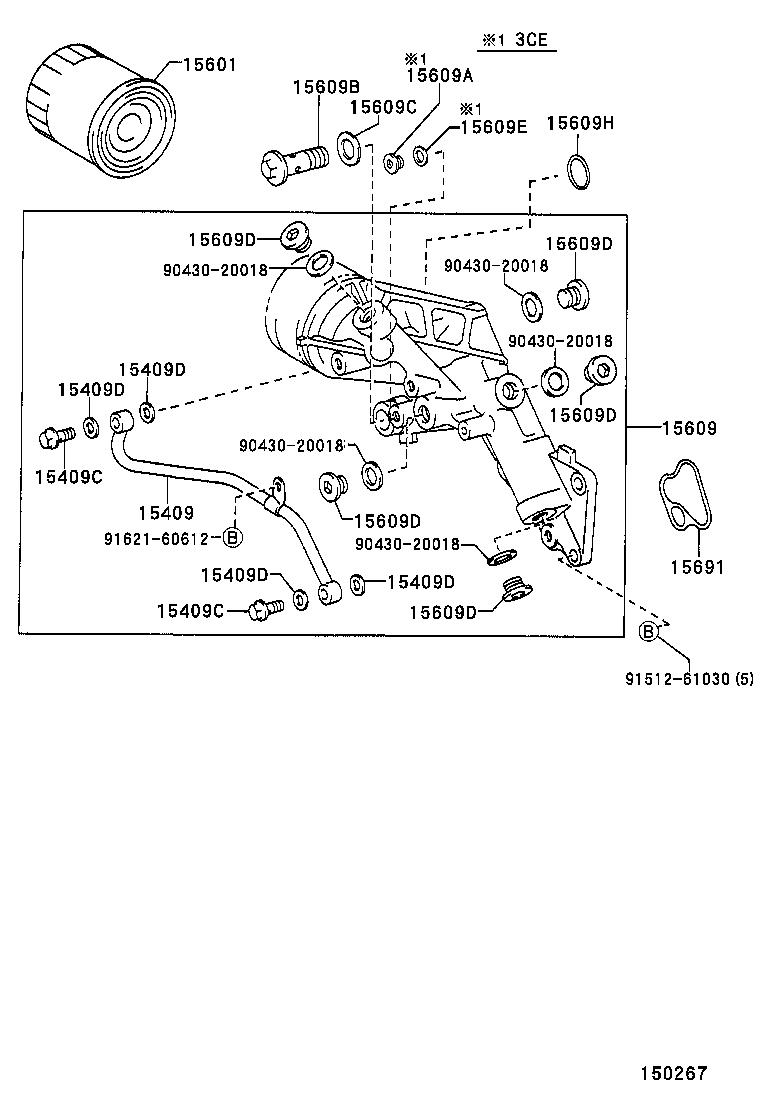

Figure NA0088 NA0088 1996-01 → 1997-08 Figure NA0014A NA0014A 1992-11 → — Figure MAD136A MAD136A 1992-11 → 1998-05 Figure 150267 150267 1996-01 → 1997-08 Figure 150267 150267 1998-05 → — Figure 150460 150460 1992-11 → — Figure NA0439 NA0439 1992-11 → —

Part groups

PNCDescription
15409 Pipe OR Hose, Oil Filter Outlet
15409C Bolt, Union(FOR OIL FILTER OUTLET PIPE)
15409D Gasket(FOR OIL FILTER OUTLET PIPE)
15600A Union(FOR OIL FILTER)
15601 Filter Sub-assy, Oil
15609 Bracket Sub-assy, Oil Filter
15609A Plug, Taper Screw(FOR OIL FILTER BRACKET)
15609B Union(FOR OIL FILTER BRACKET)
15609C Gasket(FOR OIL FILTER BRACKET UNION)
15609D Plug, W/Head Straight Screw(FOR OIL FILTER BRACKET)
15609E Gasket, W/Head Straight Screw Plug
15609H Ring, O(FOR OIL FILTER BRACKET)
15691 Gasket, Oil Filter
