Toyota Caldina

1992-11 → 2002-06 · chassis AT191,CT19#,ET196,ST19# · catalogue 274130 · Japan

Discontinued model Data version 2003-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

V-belt

4 part groups · 4 illustrations

Illustrations

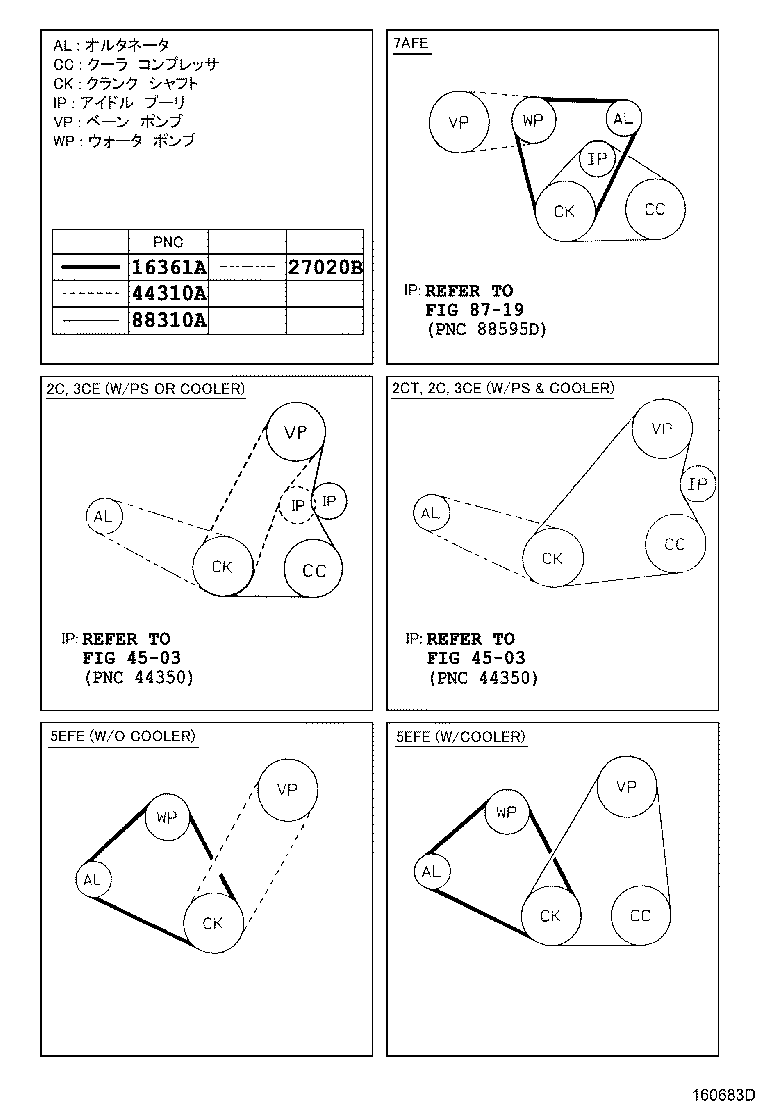

Figure 165753A 165753A 1992-11 → 1996-01 Figure 165754A 165754A 1992-11 → 1996-01 Figure 160683D 160683D 1996-01 → — Figure 165755A 165755A 1996-01 → —

Part groups

PNCDescription
16361A Belt, V(FOR FAN & ALTERNATOR)
27020B Belt, V(FOR ALTERNATOR)
44310A Belt, V(FOR VANE PUMP)
88310A Belt, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
