Toyota Caldina

1992-11 → 2002-06 · chassis AT191,CT19#,ET196,ST19# · catalogue 274130 · Japan

Discontinued model Data version 2003-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

67 part groups · 16 illustrations

Illustrations

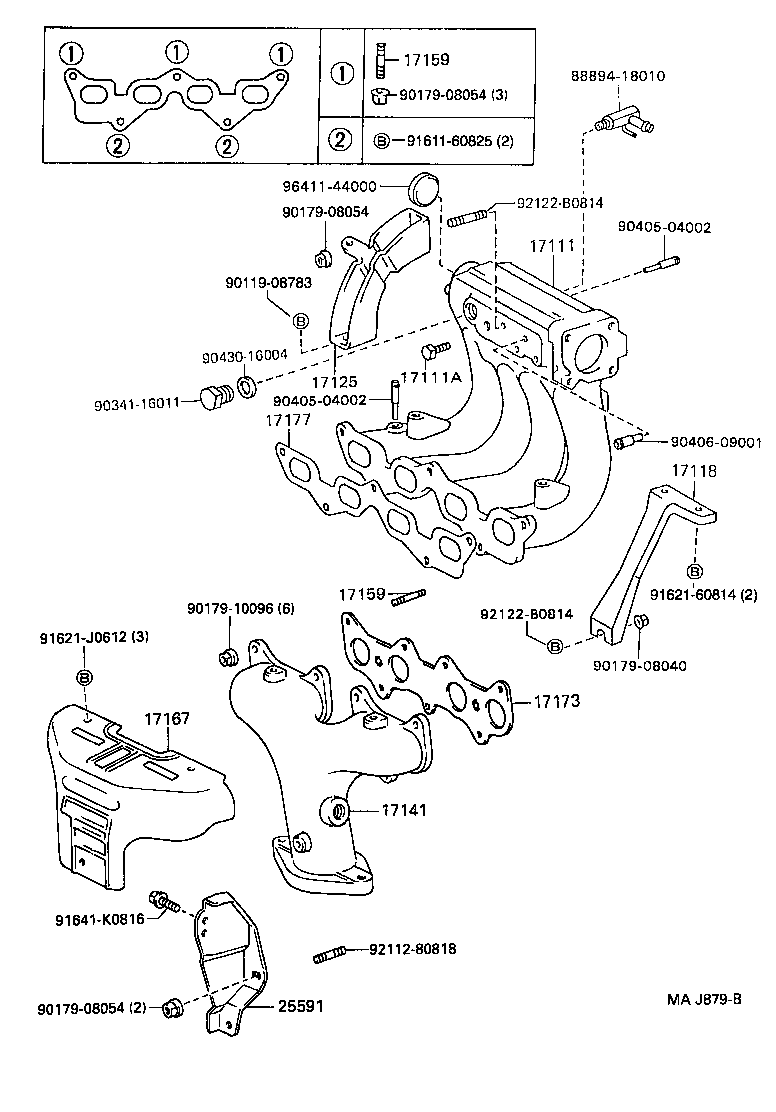

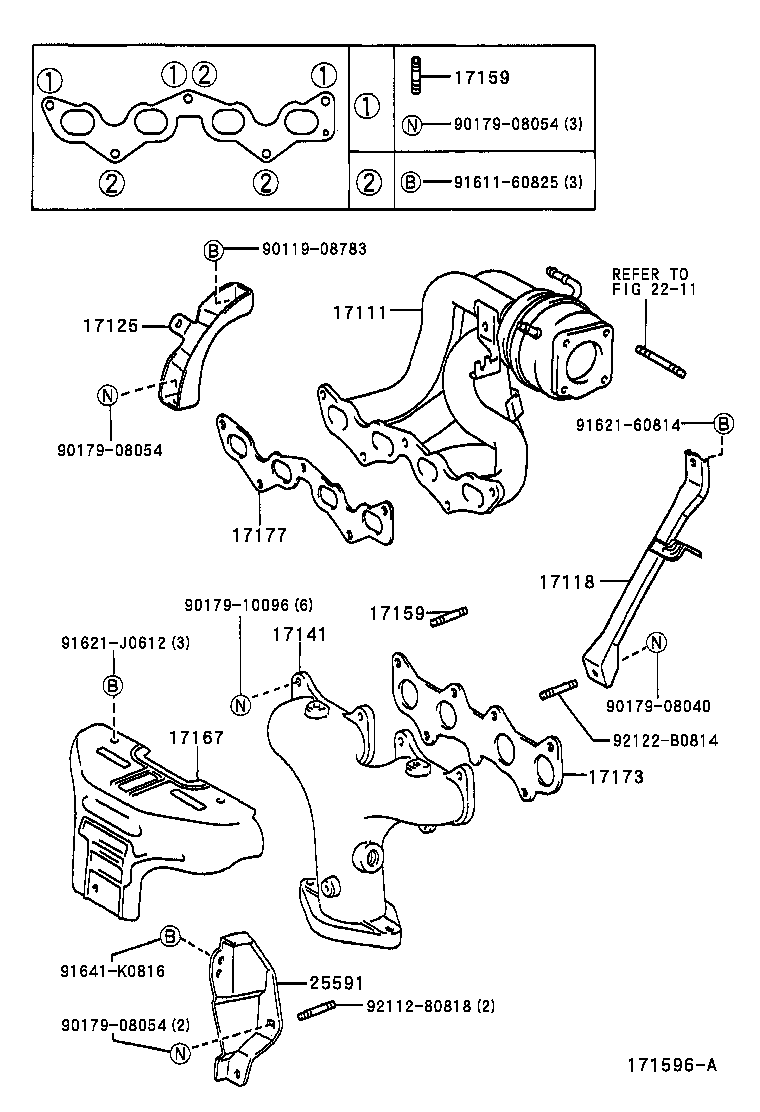

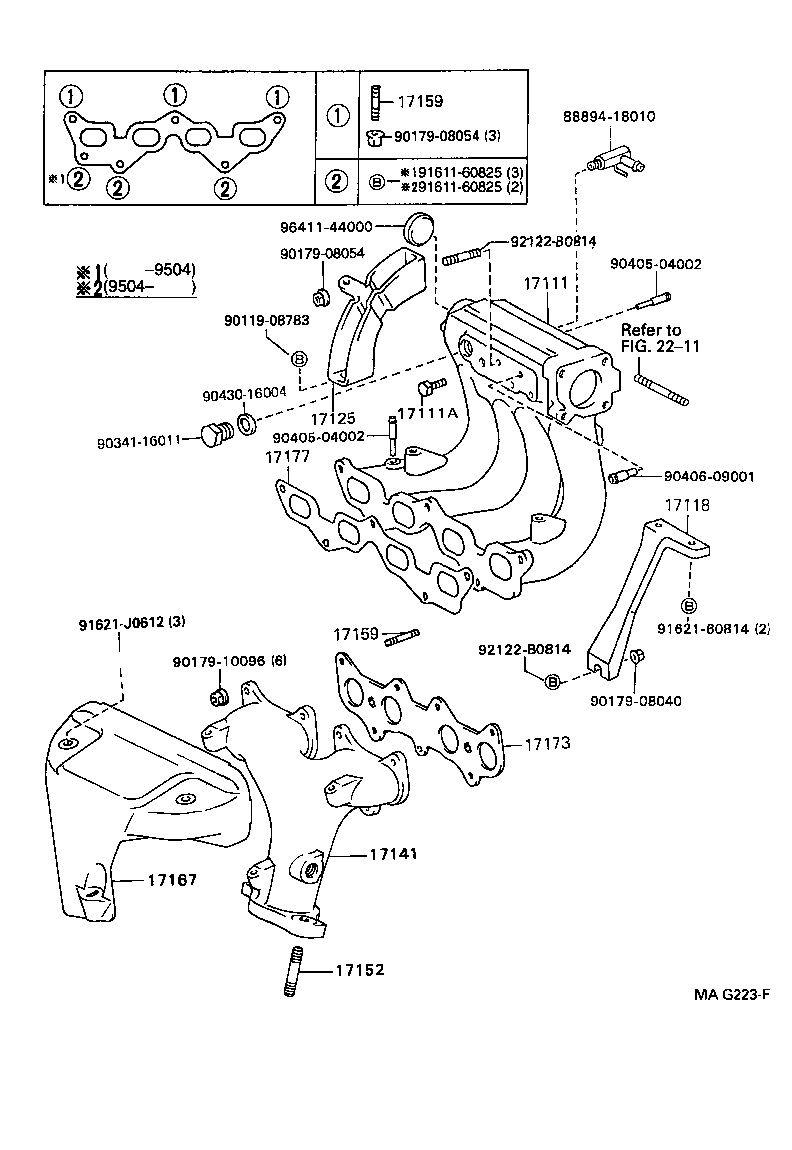

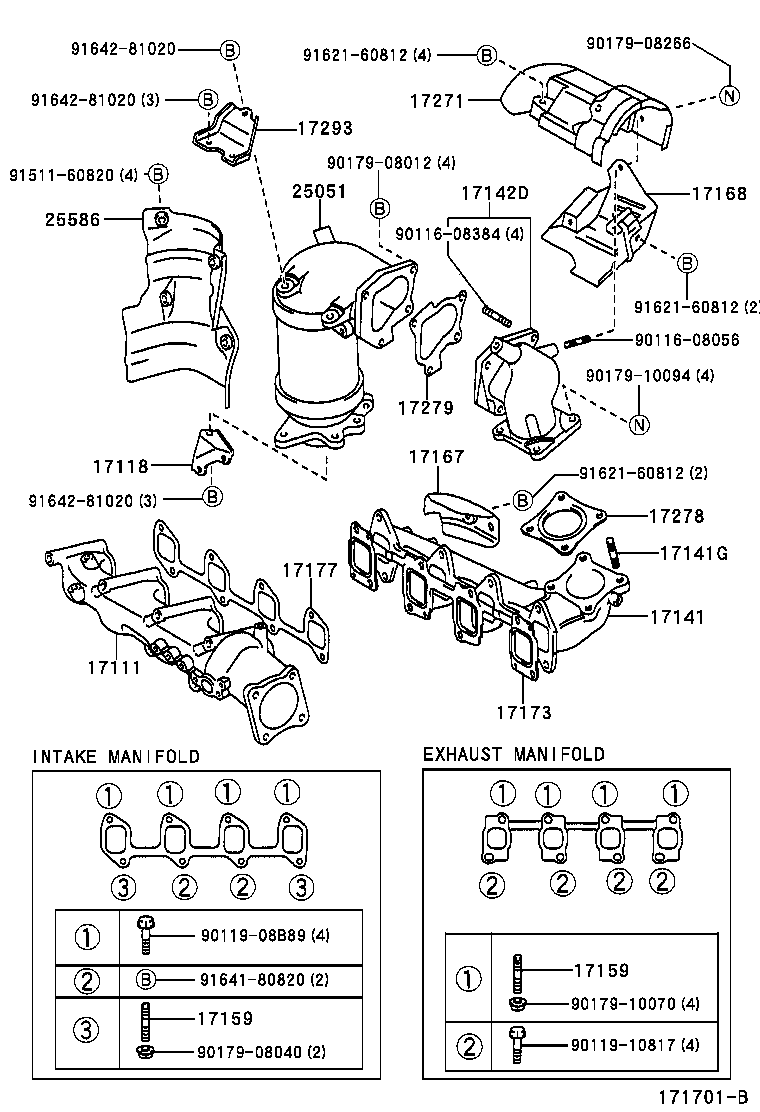

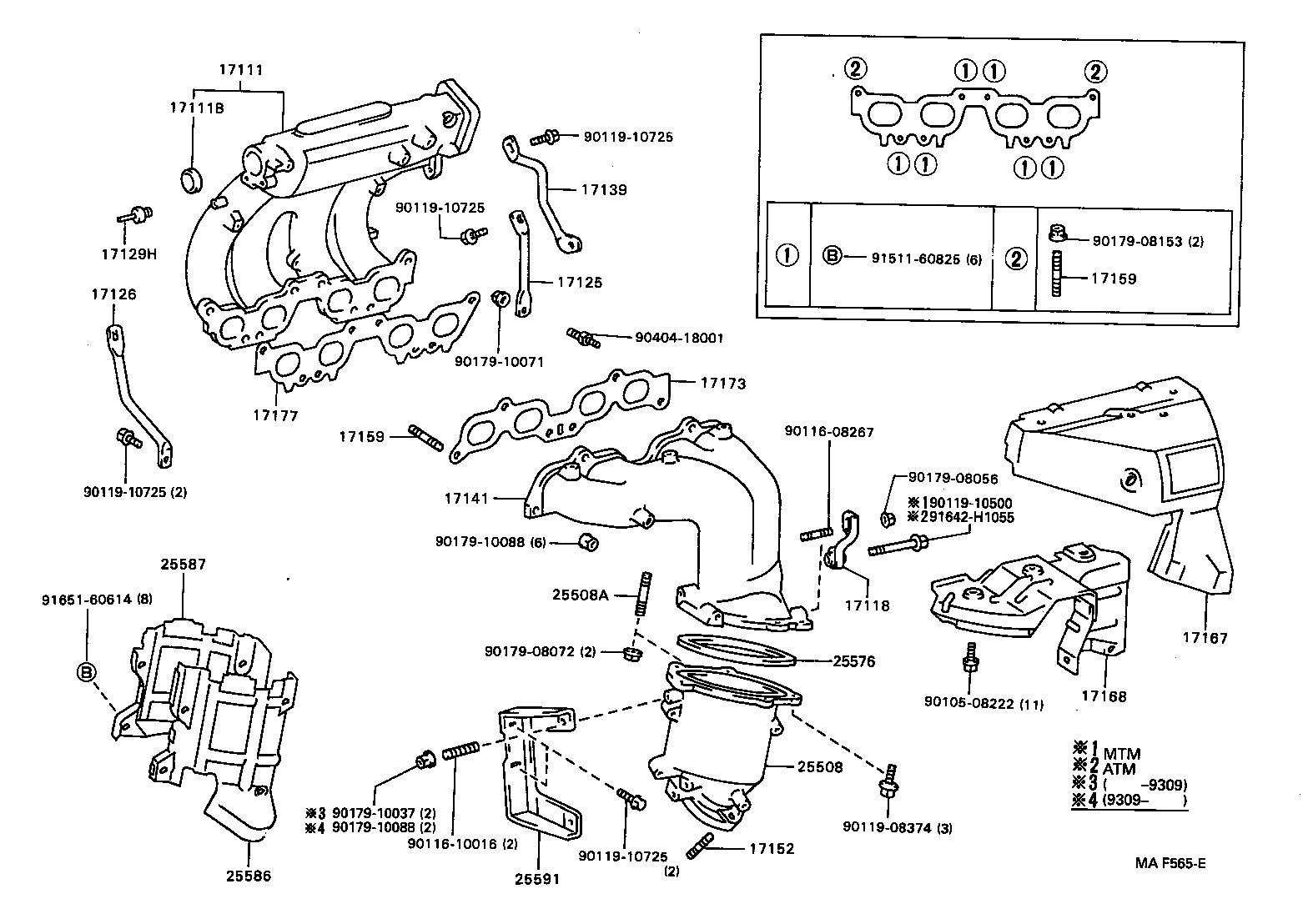

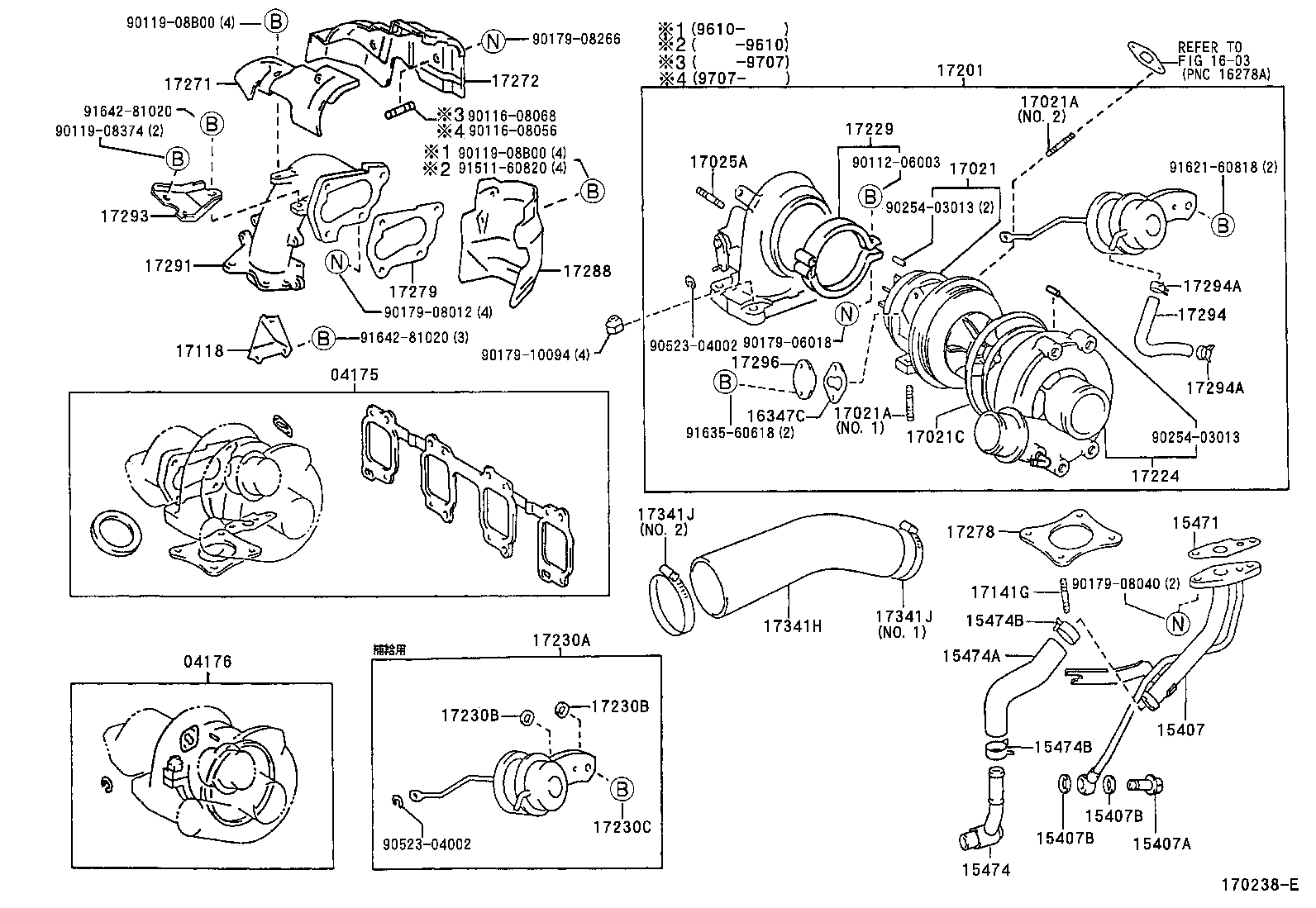

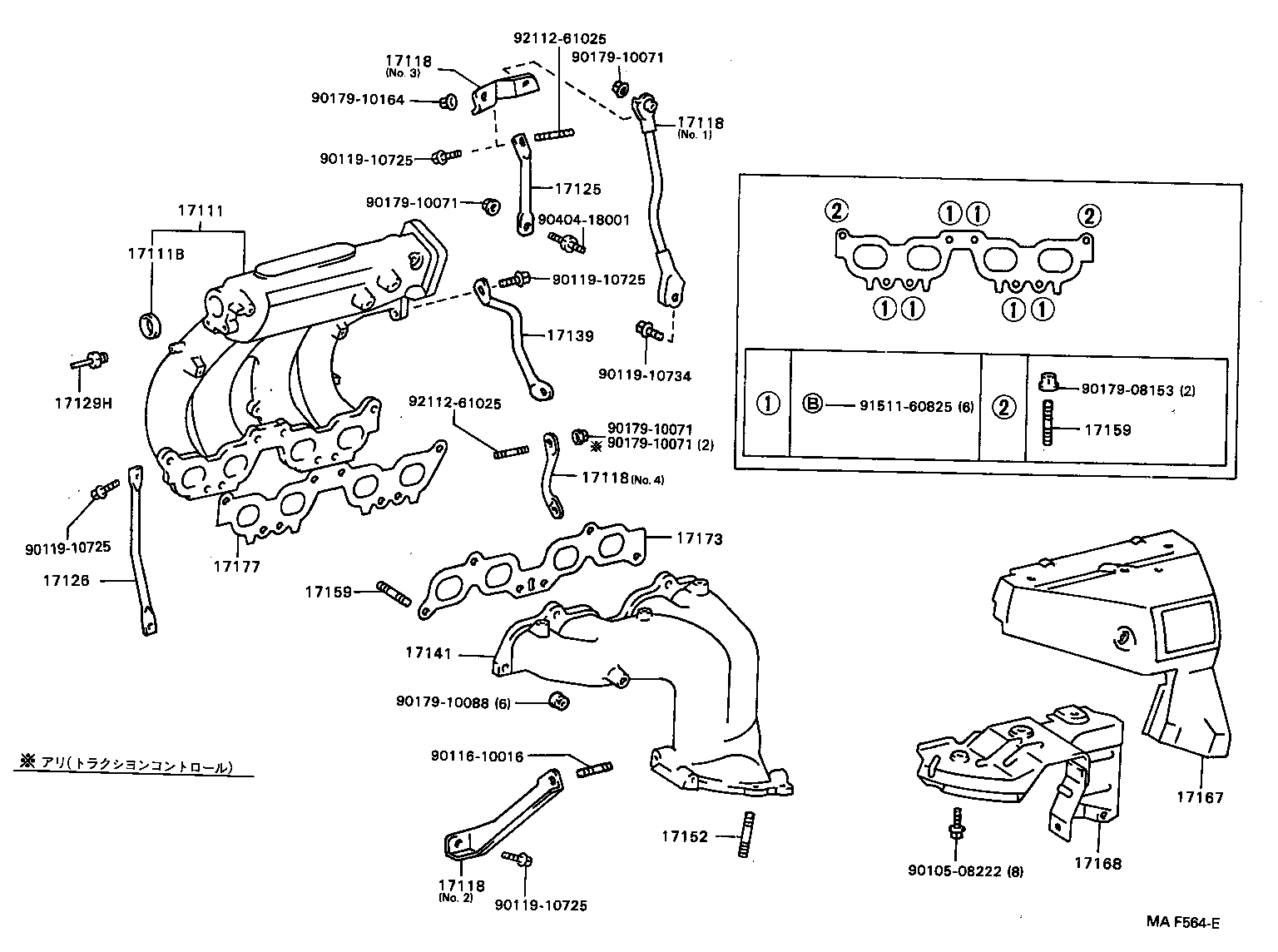

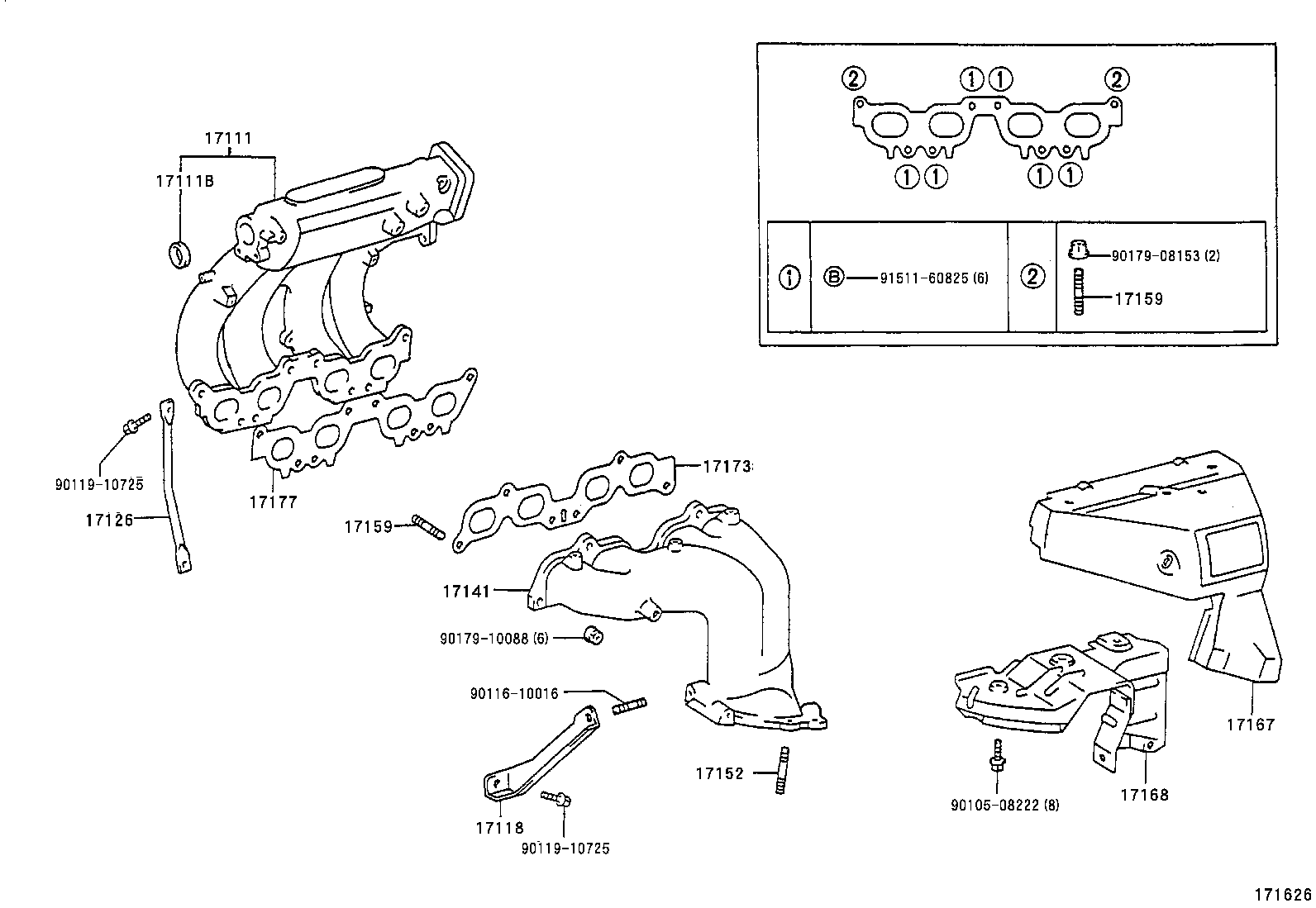

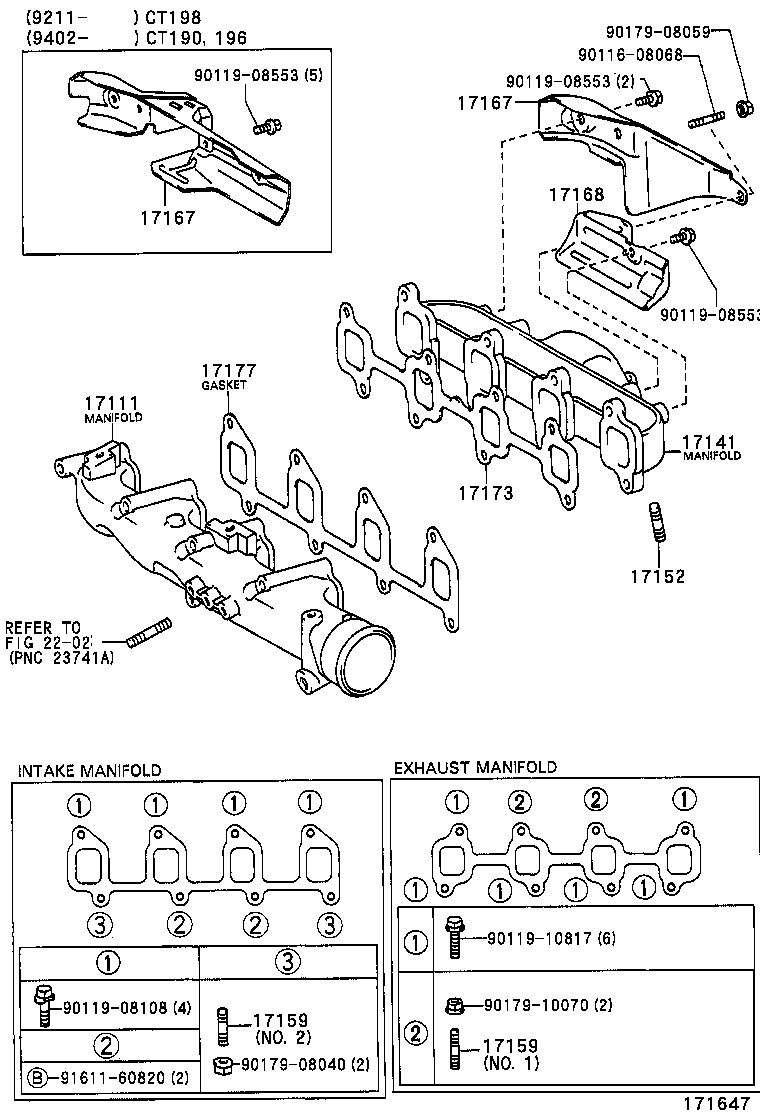

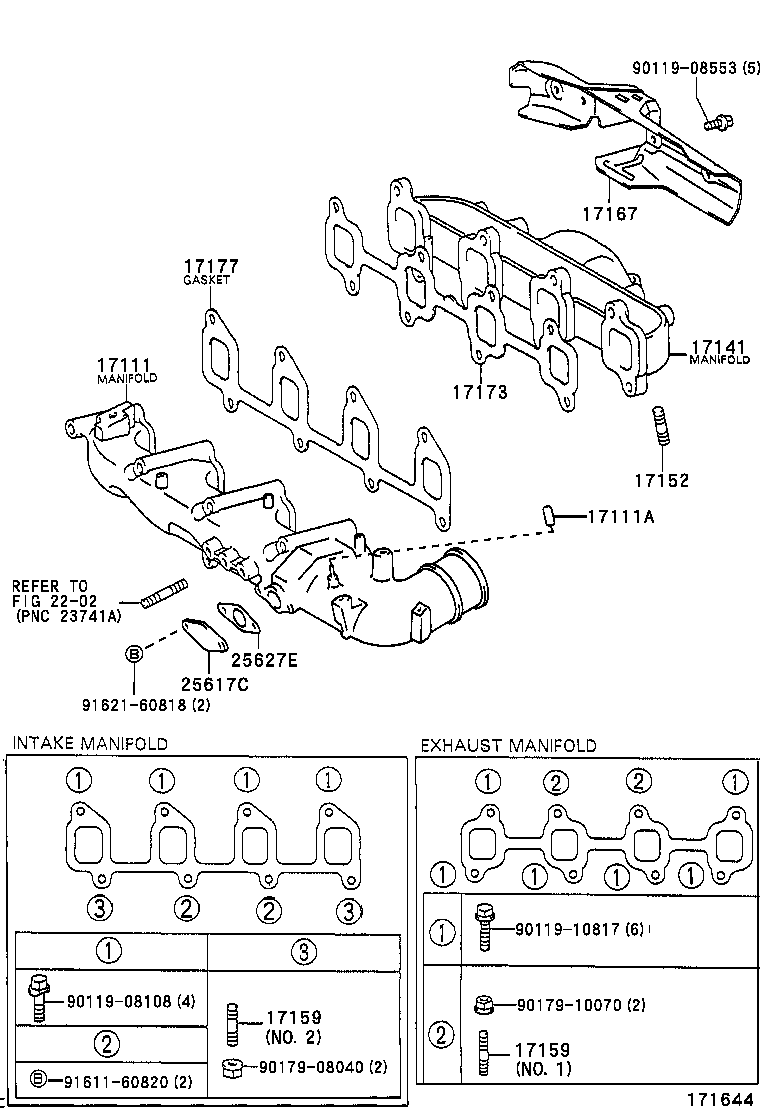

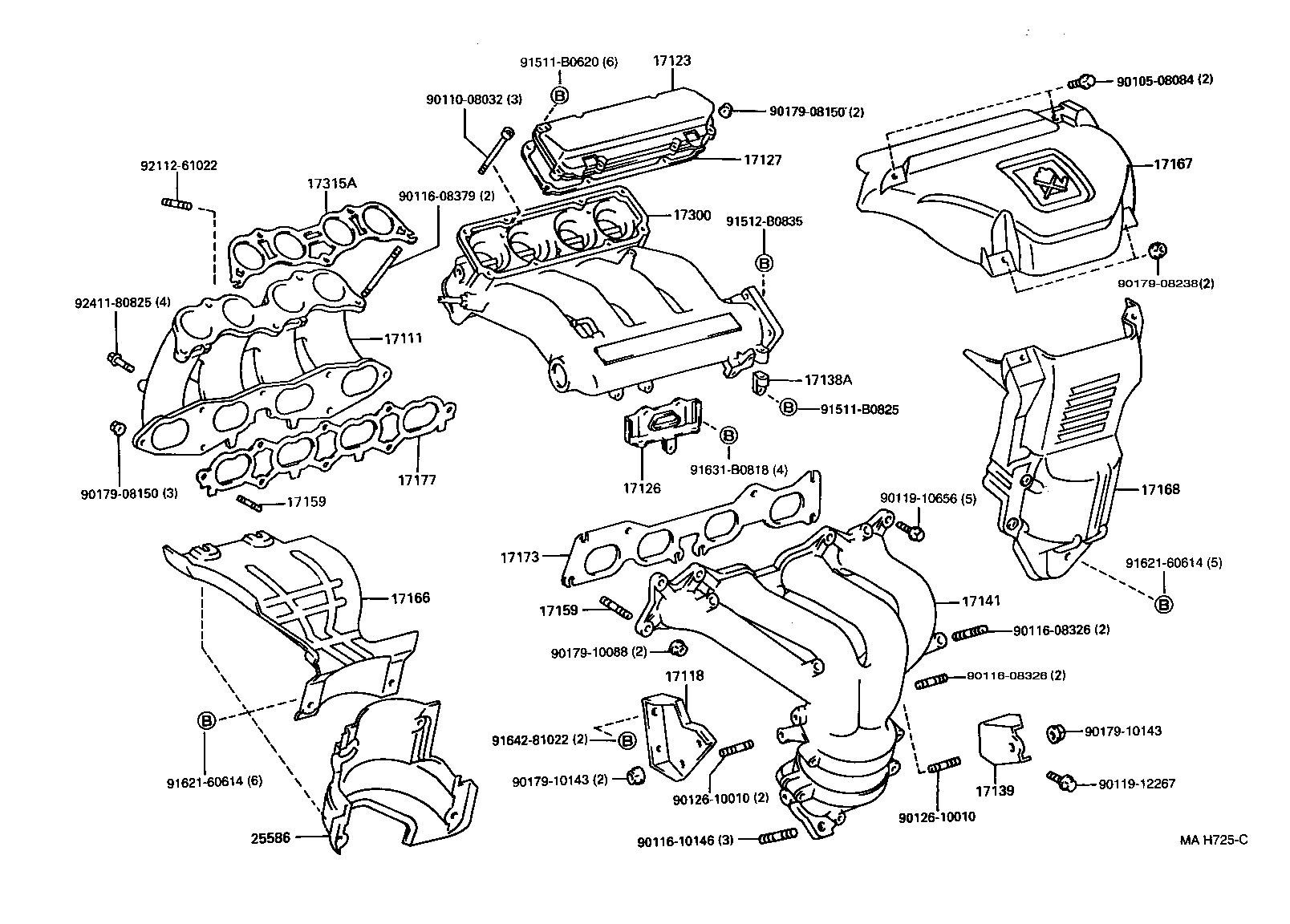

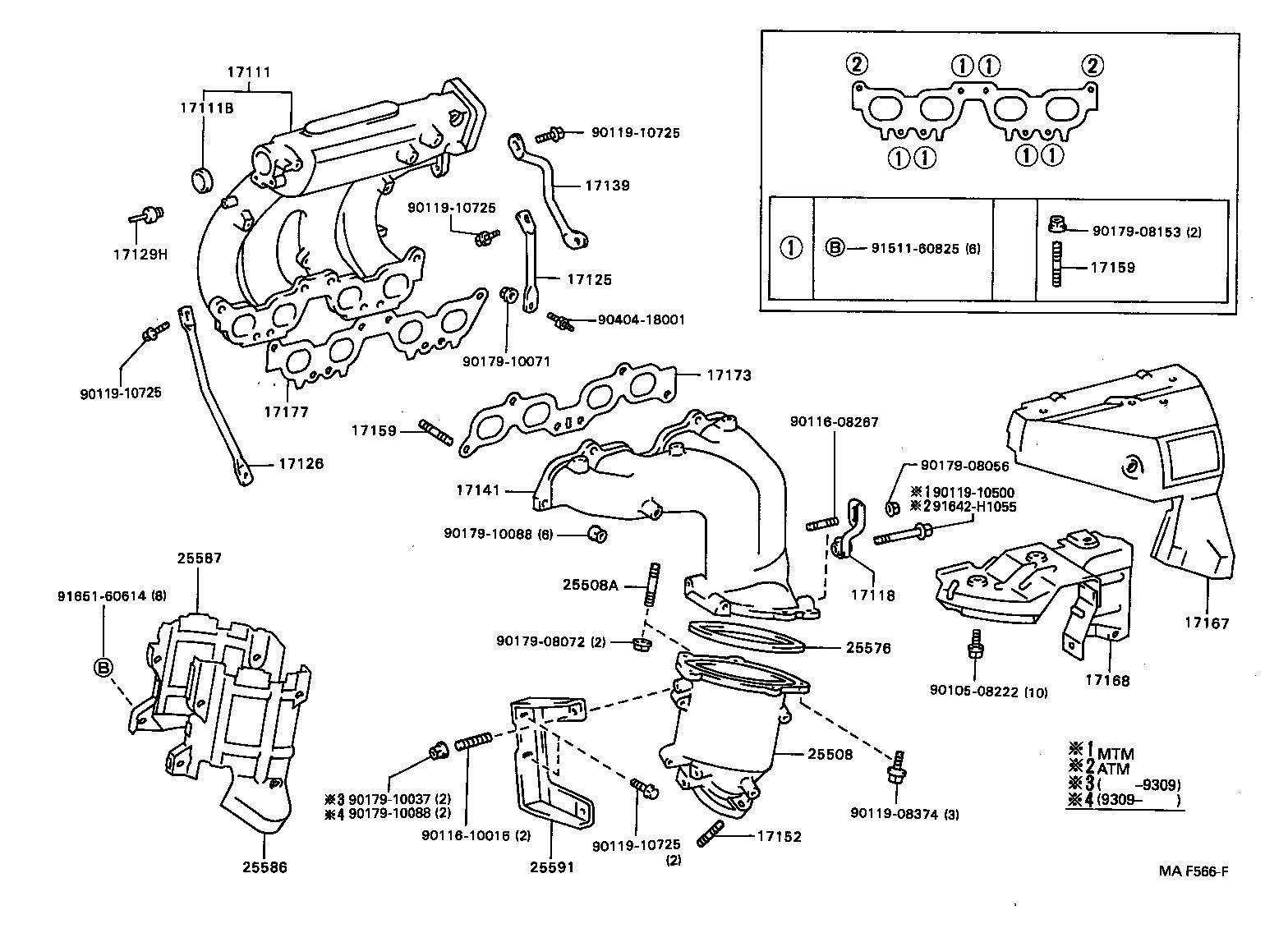

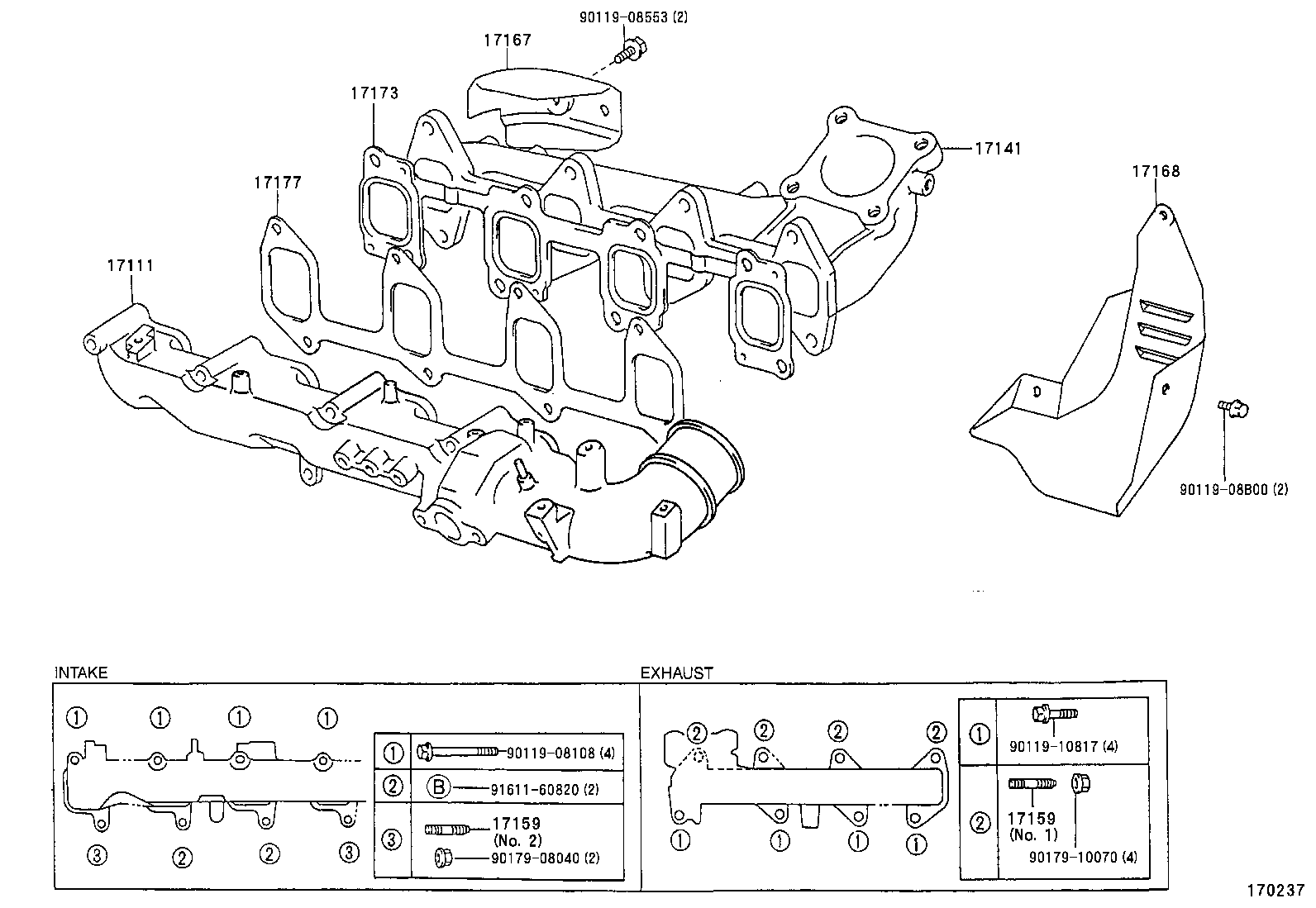

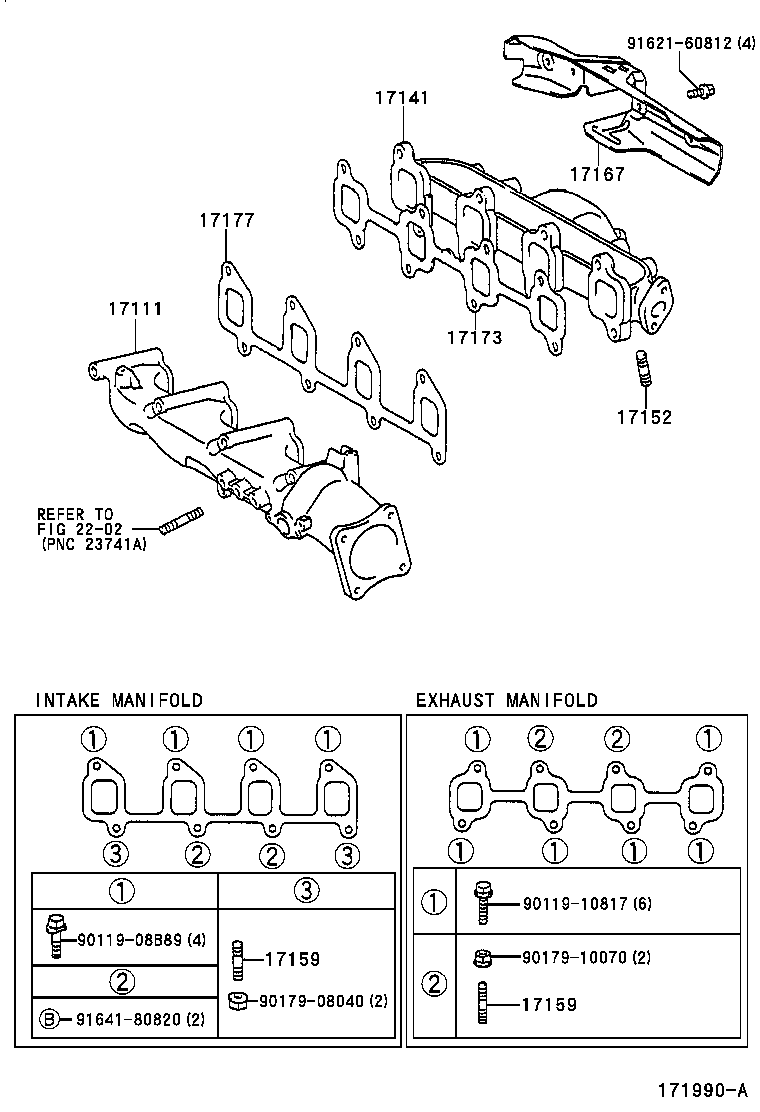

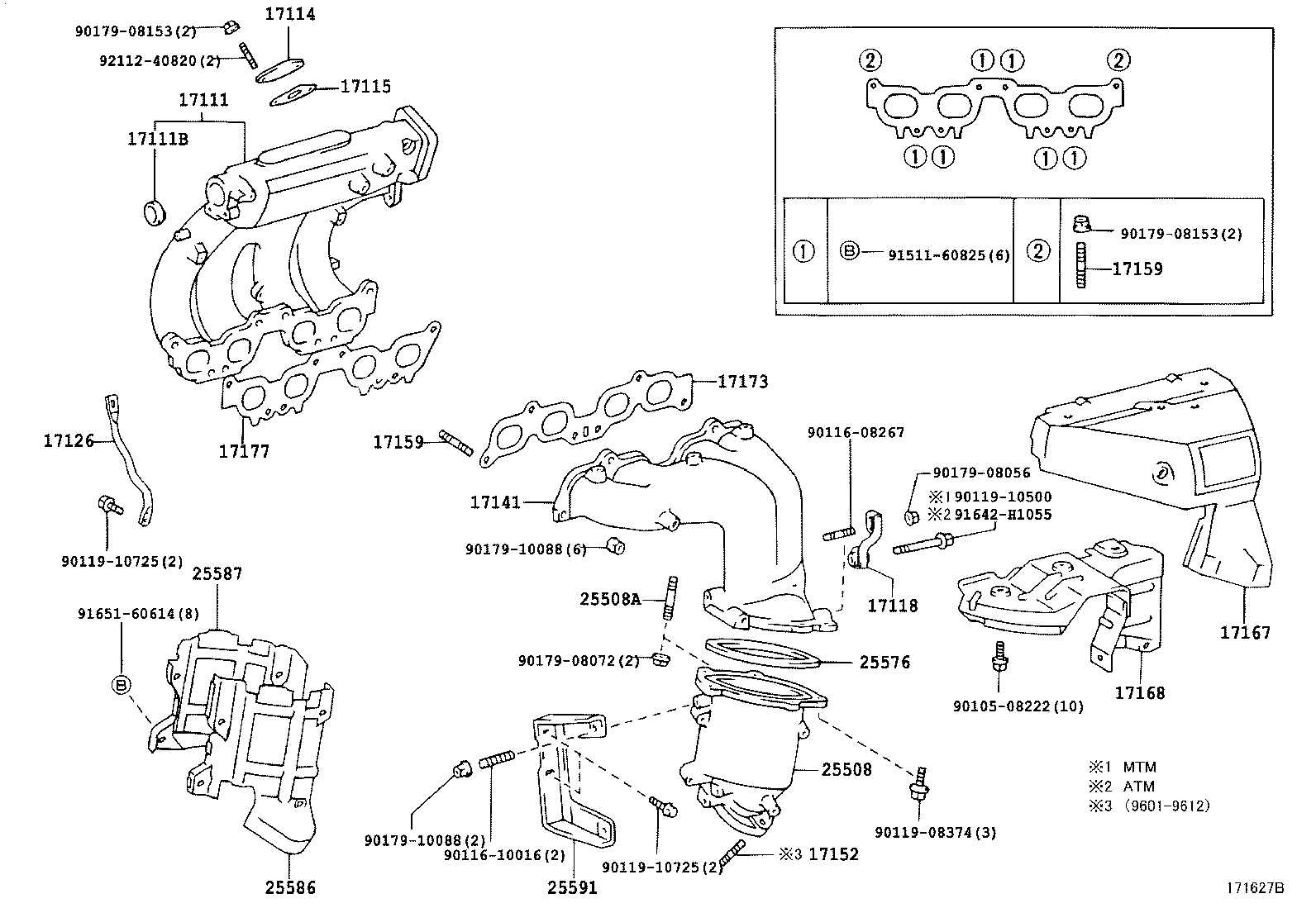

Figure 173340 173340 1996-01 → 1997-08 Figure 171647 171647 1992-11 → 1996-01 Figure 171644 171644 1996-01 → 1998-05 Figure 170237 170237 1996-01 → 1997-08 Figure 170238E 170238E 1996-01 → 1997-08 Figure 171990A 171990A 1998-05 → — Figure 171701B 171701B 1998-05 → — Figure MAG223F MAG223F 1992-11 → 1996-01 Figure MAJ879B MAJ879B 1996-01 → 1997-08 Figure 171596A 171596A 1997-08 → — Figure MAF564E MAF564E 1992-11 → 1996-01 Figure 171626 171626 1996-01 → 1997-08 Figure MAF565E MAF565E 1992-11 → 1996-01 Figure 171627B 171627B 1996-01 → — Figure MAF566F MAF566F 1992-11 → 1996-01 Figure MAH725C MAH725C 1995-02 → 1997-08

Part groups

PNCDescription
04175 Gasket Kit, Turbocharger
04176 Seal Kit, Turbocharger
15407 Pipe Sub-assy, Turbo Oil Inlet
15407A Bolt, Union(FOR TURBO OIL INLET PIPE)
15407B Gasket(FOR TURBO OIL INLET PIPE)
15471 Gasket, Turbo Oil Inlet
15474 Pipe, Turbo Oil Outlet
15474A Hose, Turbo Oil Outlet
15474B Clamp OR Clip(FOR TURBO OIL OUTLET HOSE)
16347C Gasket(FOR TURBO WATER PIPE)
17021 Housing Sub-assy, Bearing
17021A Bolt, Stud(FOR BEARING HOUSING)
17021C Ring, Hole Snap(FOR BEARING HOUSING)
17025A Bolt, Stud(FOR TURBINE HOUSING)
17111 Manifold, Intake
17111A Plug, NO.1
17111B Plug, NO.2
17114 Plate, Intake Manifold Hole Cover
17115 Gasket, Intake Manifold Hole Cover
17118 Stay, Manifold
17119 Stay, Manifold, NO.2
17123 Cover, Surge Tank
17125 Stay, Surge Tank, NO.1
17126 Stay, Surge Tank, NO.2
17127 Gasket, Surge Tank Cover
17129H Union, NO.4
17138A Stay, Intake Pipe
17139 Stay, Manifold, NO.2
17141 Manifold, Exhaust
17141G Bolt, Stud(FOR TURBOCHARGER)
17142D Manifold, Exhaust, NO.2
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17166 Insulator, Exhaust Manifold Heat,NO.4
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
17201 Turbocharger Sub-assy
17224 Housing, Compressor
17229 Band, V
17230A Repair Actuaor Assy, W/Bracket
17230B Washer, Plate(FOR REPAIR ACTUATOR SET)
17230C Bolt, W/Washer(FOR REPAIR ACTUATOR SET)
17271 Insulator, Turbo, NO.1
17272 Insulator, Turbo, NO.2
17278 Gasket, Turbo TO Exhaust Manifold
17279 Gasket, Turbine Outlet Elbow
17288 Insulator, Turbo, NO.3
17291 Elbow, Turbine Outlet
17293 Stay, Turbocharger
17294 Hose, Actuator
17294A Clip(FOR ACTUATOR HOSE)
17296 Plate, Bearing Housing, Side
17300 Valve Assy, Intake Air Control
17315A Gasket, Intake Air Control Valve
17341H Hose, Air
17341J Clamp, Hose
25051 Converter Sub-assy, Exhaust Manifold
25508 Converter Sub-assy, Manifold
25508A Bolt, Stud(FOR MANIFOLD CONVERTER)
25576 Gasket, Manifold Converter
25586 Insulator, Manifold Converter, NO.1
25587 Insulator, Manifold Converter, NO.2
25591 Bracket, Manifold Support
25617C Plate, Egr Hole Cover
25627E Gasket, Egr Valve
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
